N45MSAD00.50A800

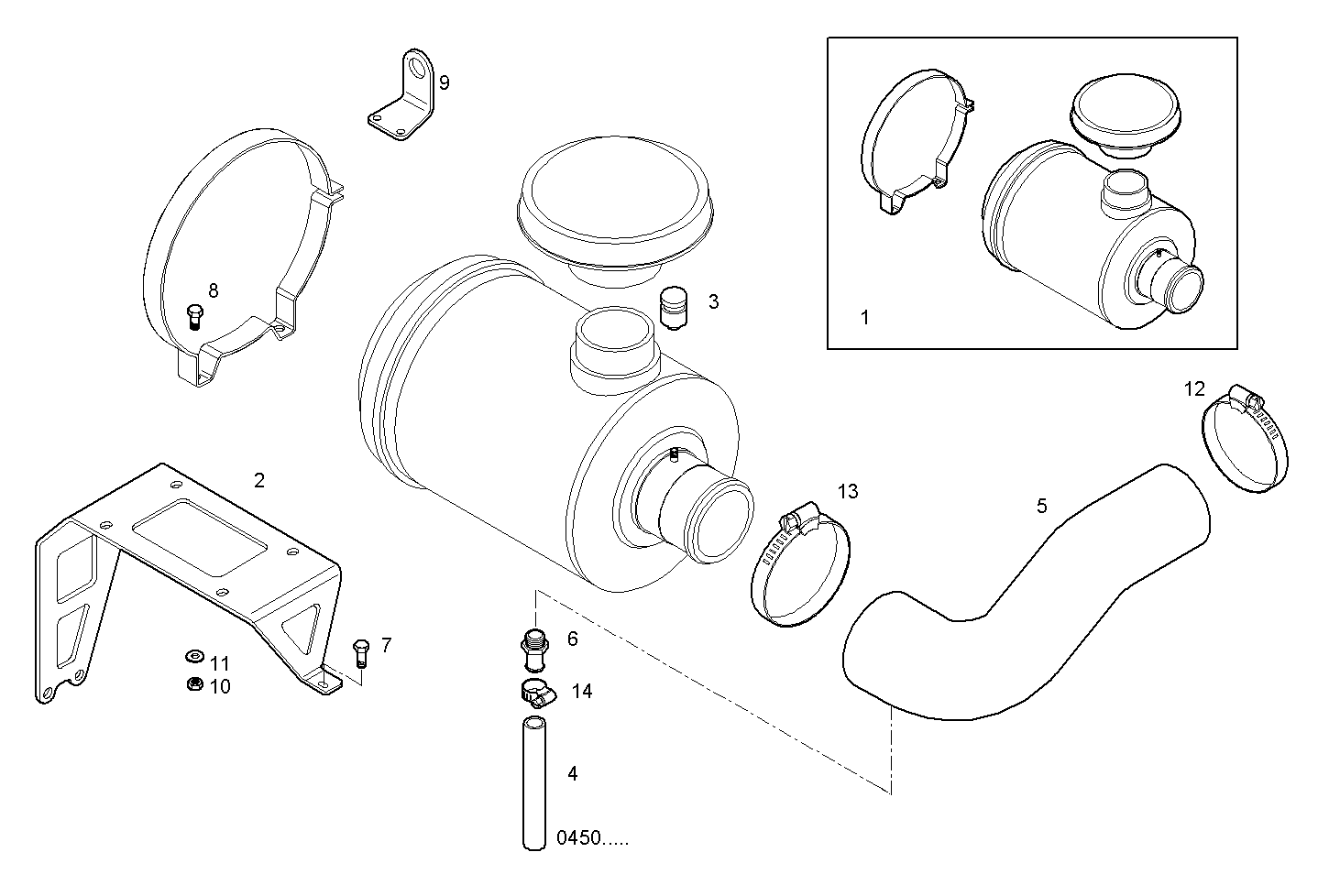

A21210517 AIR CLEANER

Iveco/FPT AIR CLEANER

Item Part number Description
1 8031382 AIR CLEANER ASSY
2 8038516 FILTER SUPPORT
3 8027294 CHOCKED FILTER INDIC. MECHANICAL
4 504147024 RUBBER SLEEVE
5 8035102 FILTER HOSE
6 60181655 PIPE SOCKET
7 16677735 HEXAGON BOLT M12X25 MM
8 16605534 HEXAGON BOLT M8X20 MM (10.9)
9 8037489 HOOK
10 17037925 HEXAGON NUT M8X1,25
11 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
12 4788410 CLIP Ø92/98 MM
13 17765291 CLIP Ø80/100 MM
14 18088392 CLIP Ø16/25 MM
