N45MSAE00.10A001

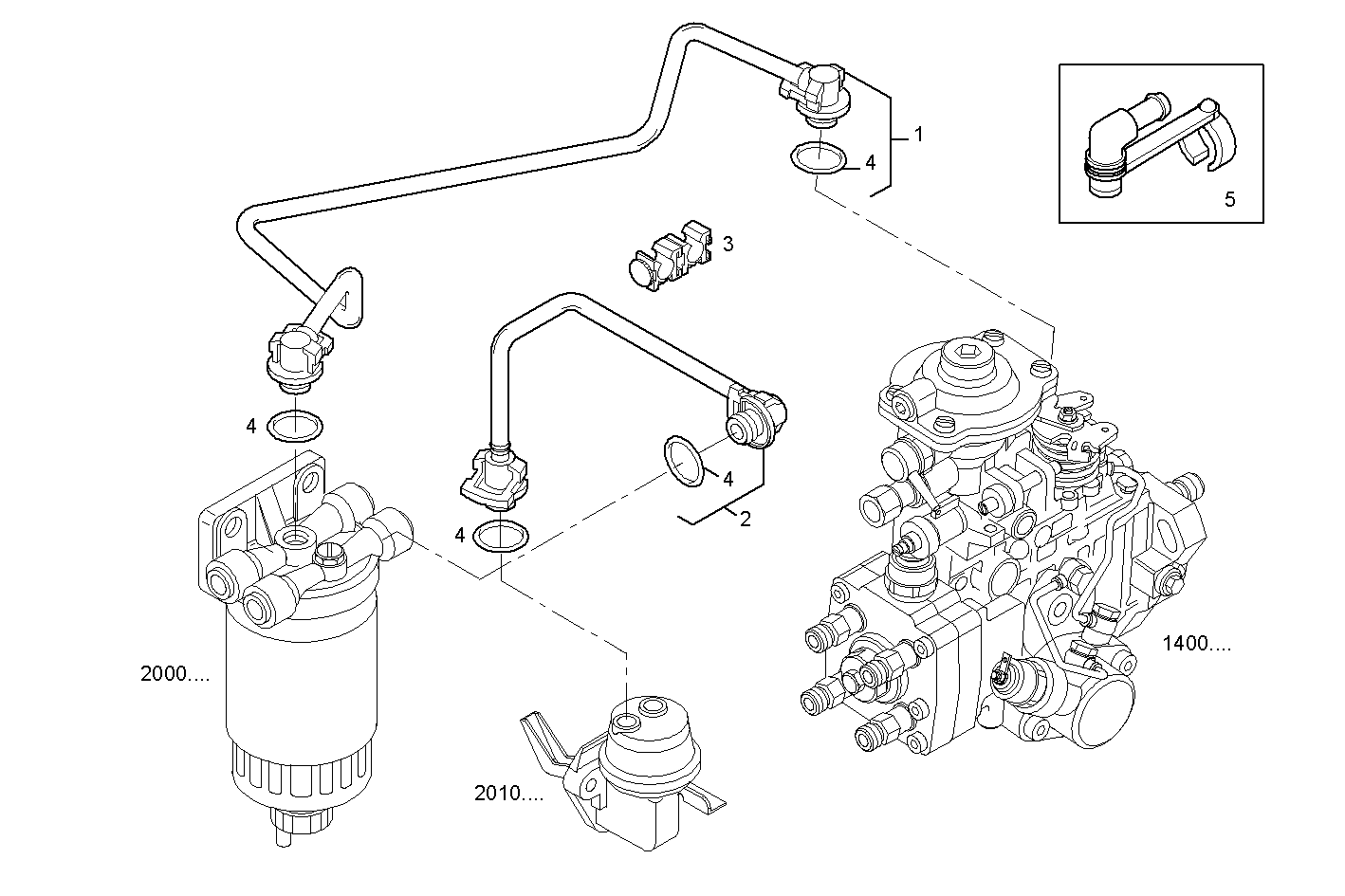

2030.246/02 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504057288 | FUEL PIPES ASSY |
| 2 | 504025720 | FUEL LINE ASSY |
| 3 | 504065285 | SPRING CLAMP |
| 4 | 4894095 | O-RING |
| 5 | 8034419 | ELBOW COUPLING |
