N45MSAE00.10A001

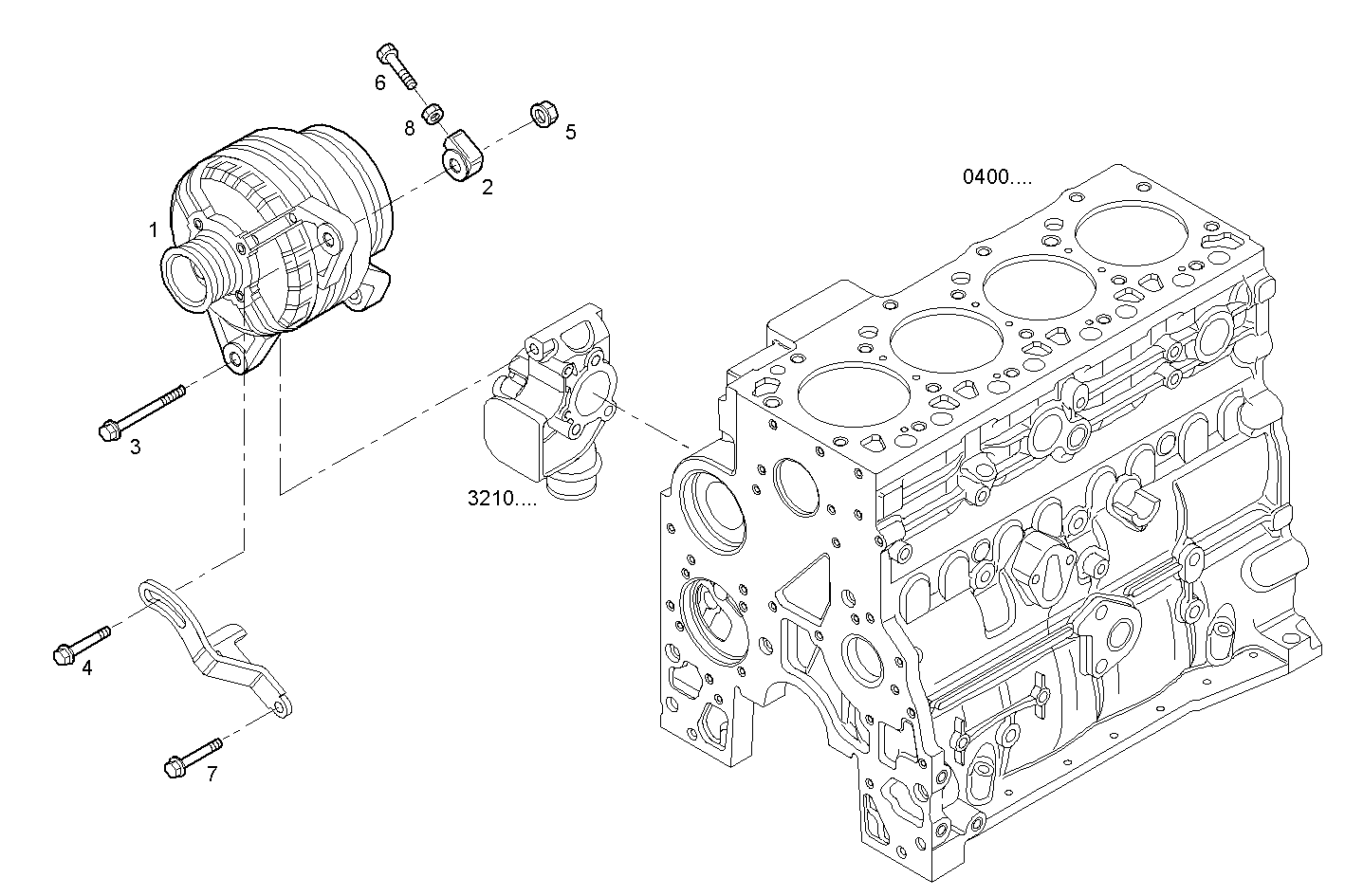

4000.161 GENERATOR
Item | Part number | Description |
---|---|---|
1 | 504010576 | ALTERNATOR ASSY |
2 | 504010798 | CHOCK |
3 | 16599125 | HEXAGON BOLT M10X130 MM |
4 | 16587724 | HEXAGON BOLT M10X55 MM |
5 | 17044825 | HEXAGON NUT M10 |
6 | 15214524 | HEXAGON BOLT M8X100 MM |
7 | 16673635 | HEXAGON BOLT M8X1.25X20 |
8 | 17044725 | HEXAGON NUT M8 |
