N45MSSA00.50A800

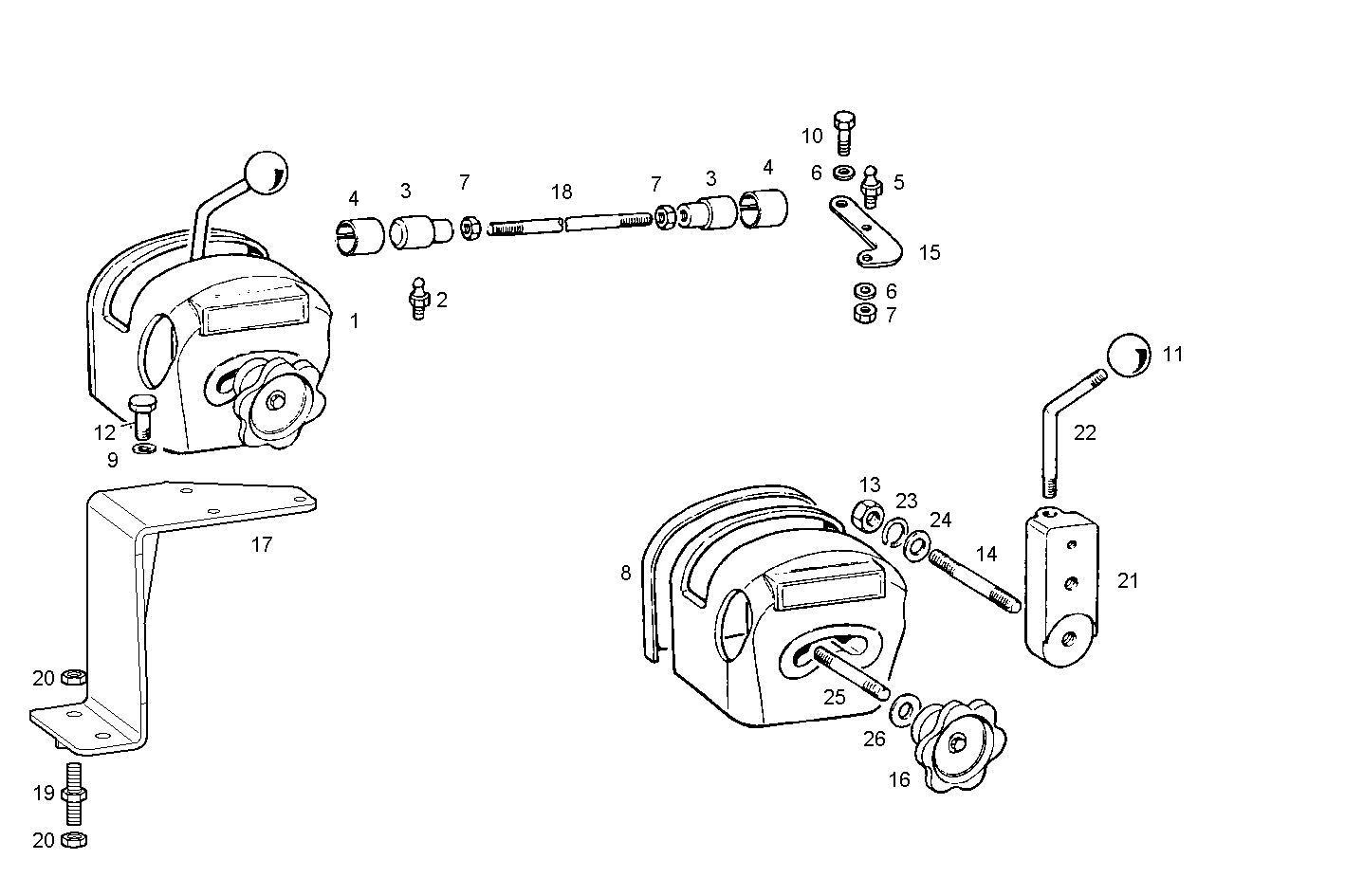

A24020502 HAND ACCELERATOR
| Item |
Part number |
Description |
|
1 |
4927113 |
HAND ACCELERATOR ASSY |
|
2 |
18008411 |
PIN M6 |
|
3 |
17721111 |
BALL HEAD |
|
4 |
17722176 |
CLIP |
|
5 |
16923315 |
BALL HEAD |
|
6 |
17088474 |
WASHER Ø6X12 MM |
|
7 |
17037821 |
HEXAGON NUT M6X1 |
|
8 |
4927115 |
COVER |
|
9 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
10 |
16603524 |
SCREW M6X12 MM (8.8) |
|
11 |
4927041 |
HANDLE BALL |
|
12 |
18139424 |
HEXAGON BOLT M10X20 MM |
|
13 |
17157521 |
NUT M12X1,25 |
|
14 |
13530221 |
STUD M12X18X35 |
|
15 |
8026302 |
ACCELERATOR PEDAL |
|
16 |
4927042 |
HANDWHEEL |
|
17 |
8037559 |
RETAINER |
|
18 |
8037633 |
TIE ROD |
|
19 |
8037594 |
SPACING BAR |
|
20 |
17038221 |
HEXAGON NUT M10 |
|
21 |
4927004 |
LEVER |
|
22 |
4927877 |
STUD |
|
23 |
10413879 |
SPRING WASHER |
|
24 |
16665704 |
WASHER Ø12X24X2,5 MM |
|
25 |
11795121 |
STUD |
|
26 |
16887624 |
WASHER |
