N45MSSX02.50

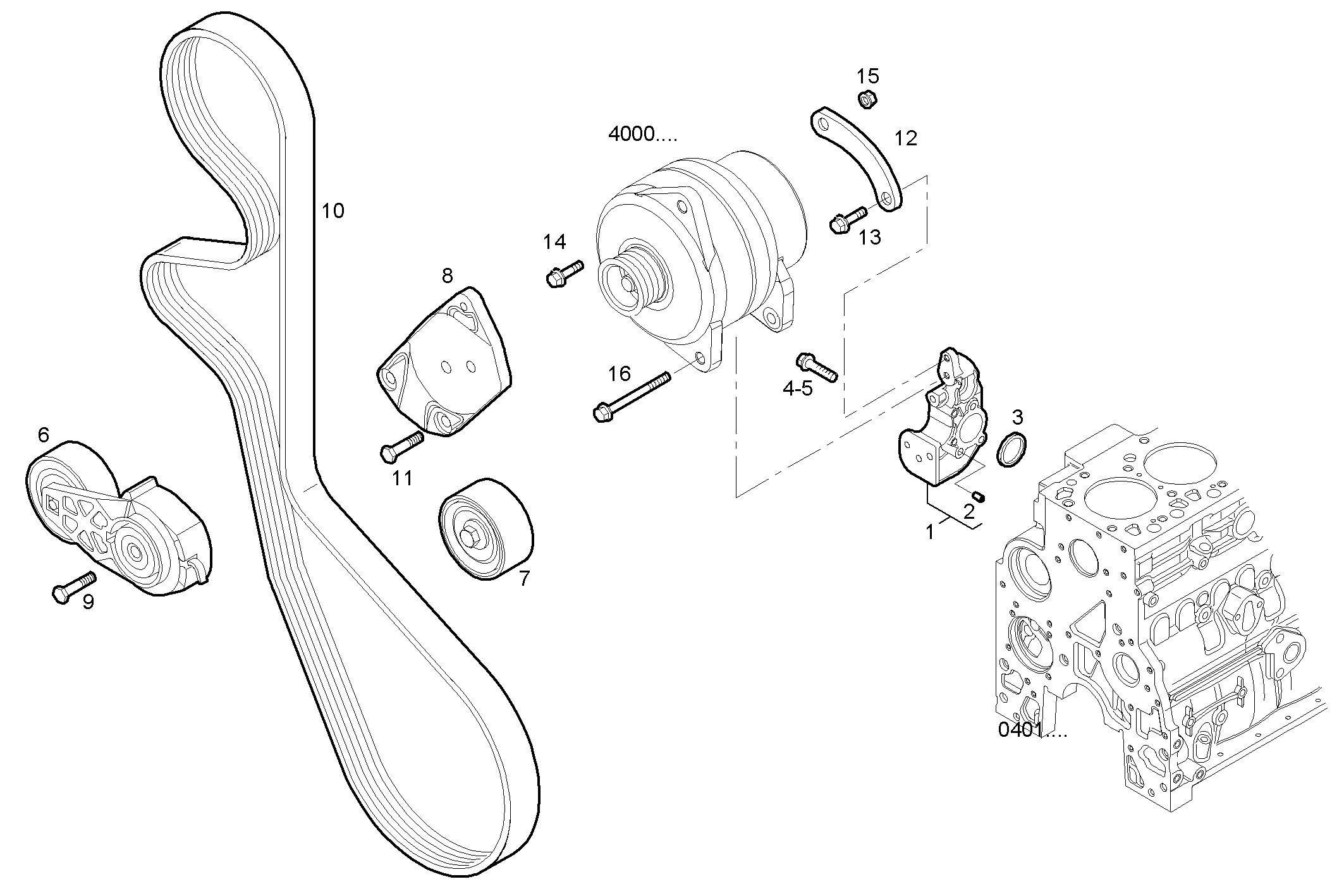

A14080505 BELT STRETCHER
Item | Part number | Description |
---|---|---|
1 | 504062633 | GENERATOR SUPPORT ASSY |
2 | 4895576 | DOWEL PIN |
3 | 504062710 | WASHER |
4 | 16599125 | HEXAGON BOLT M10X130 MM |
5 | 4895292 | HEXAGON BOLT M10X1,5X70 MM |
6 | 504028028 | BELT TENSIONER |
7 | 504065880 | PULLEY |
8 | 504069572 | BELT TENSION.SUPP |
9 | 16673835 | HEXAGON BOLT M8X30 MM |
10 | 504038672 | V-BELT |
12 | 4893840 | RETAINER |
13 | 4895291 | HEXAGON BOLT M10X1,5X20 MM |
14 | 4899093 | HEXAGON BOLT |
15 | 4895166 | HEXAGON NUT M10X1,5 |
16 | 4899122 | HEXAGON BOLT M10X110 MM |
