N45MSTD22.50A800

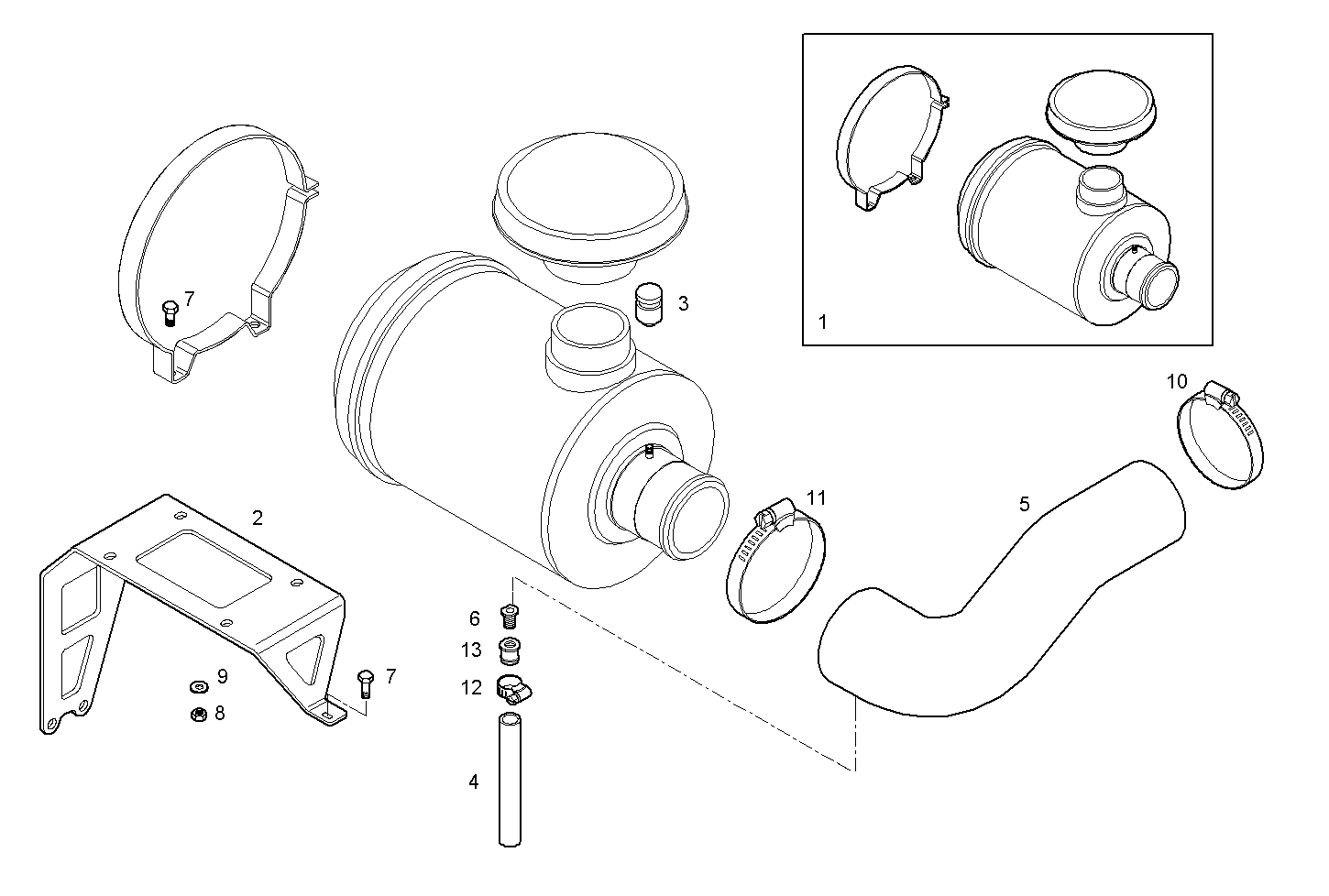

A21210515 AIR CLEANER

Iveco/FPT AIR CLEANER

Item Part number Description
1 8030338 AIR CLEANER ASSY
2 8038494 FILTER SUPPORT
3 8027294 CHOCKED FILTER INDIC. MECHANICAL
4 8036392 RUBBER SLEEVE [UP TO 06/10/08]
5 8033678 FILTER HOSE
6 8015315 PIPE SOCKET
7 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
8 17038131 HEXAGON NUT M10
9 17090174 SPRING WASHER Ø10X20 MM
10 17765192 HOSE CLIP Ø70-90 MM
11 17765391 CLIP Ø90/110 MM
12 18088392 CLIP Ø16/25 MM
13 8036882 PIPE SOCKET
14 16677735 HEXAGON BOLT M12X25 MM
