N45MSTX20.50

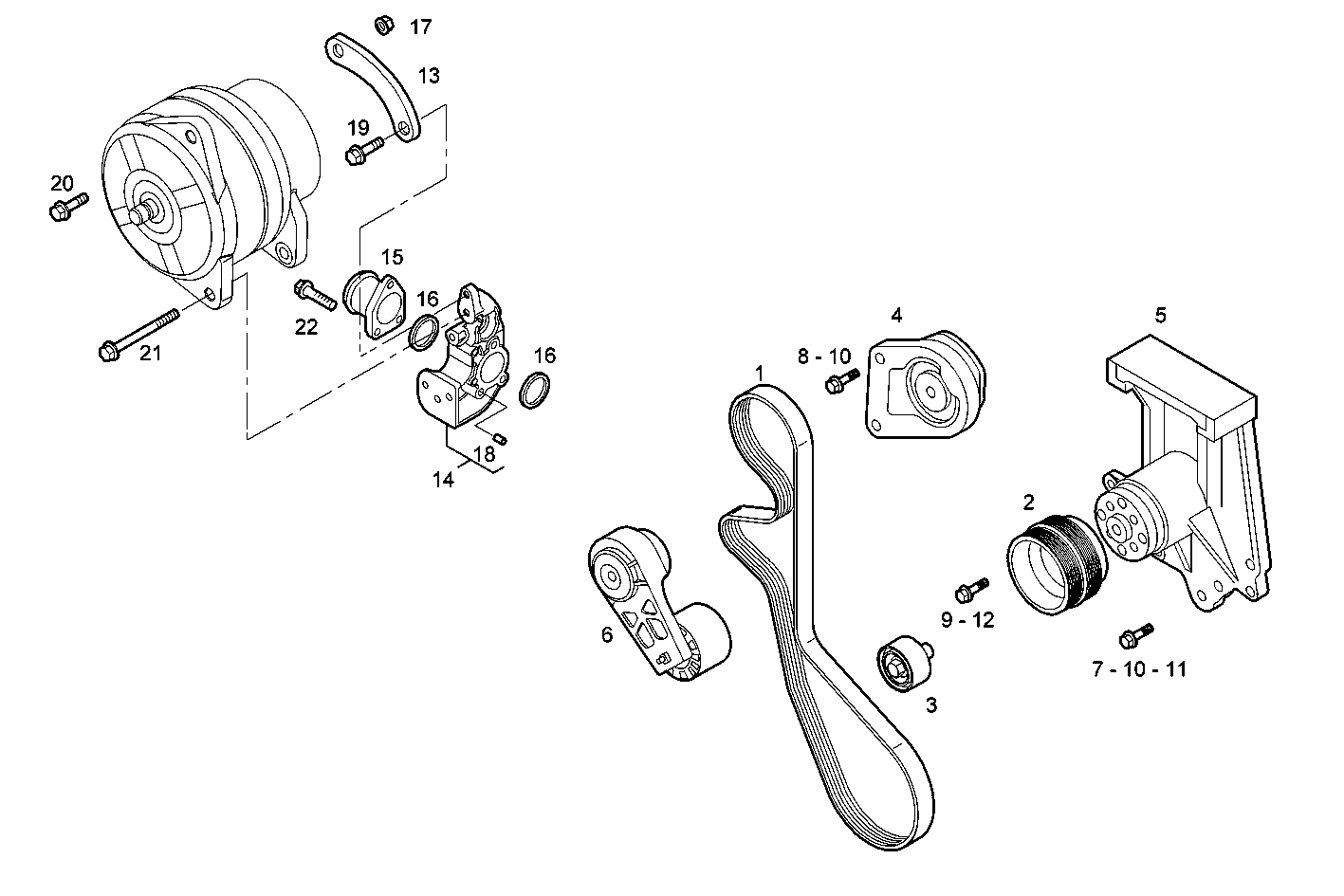

A08250502 PREARRANGEMENT FOR FAN

Iveco/FPT PREARRANGEMENT FOR FAN

Item Part number Description
1 50038760 V-BELT
2 4899155 PULLEY
3 500390511 PULLEY
4 504044558 SUPPORT
5 4893217 SUPPORT
6 504028028 BELT TENSIONER
7 4895323 HEXAGON BOLT [UP TO 26-11-07]
8 4895292 HEXAGON BOLT M10X1,5X70 MM
9 16587125 HEXAGON BOLT M10X25 MM
10 16587525 HEXAGON BOLT M10X45 MM
11 16673835 HEXAGON BOLT M8X30 MM
12 4899032 HEXAGON BOLT M10X25 MM
13 4893840 RETAINER
14 500387647 GENERATOR SUPPORT ASSY
15 504018245 WATER PIPE
16 504062710 WASHER
17 4895166 HEXAGON NUT M10X1,5
18 4895576 DOWEL PIN
19 4895291 HEXAGON BOLT M10X1,5X20 MM
20 4899093 HEXAGON BOLT
21 4899122 HEXAGON BOLT M10X110 MM
22 16592925 HEXAGON BOLT M10X80 MM
