N45MSTX20.50A010

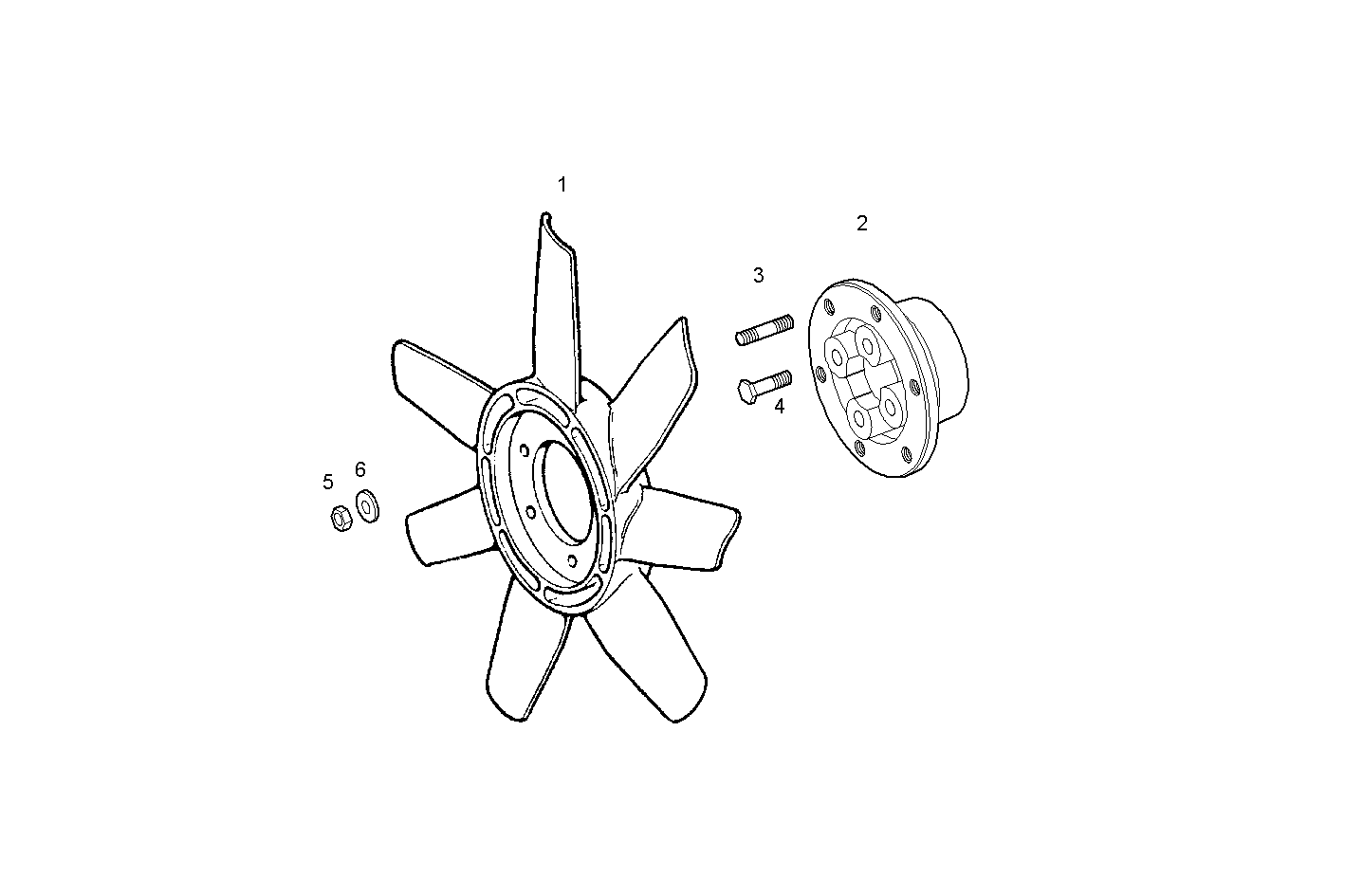

A08000512 PULLER FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 4698188 | BLOWER Ø500 MM |
| 2 | 8034473 | SPACING BAR |
| 3 | 16731324 | STUD M10X30 MM |
| 4 | 16593025 | HEXAGON BOLT M10X90 MM |
| 5 | 17038131 | HEXAGON NUT M10 |
| 6 | 17095014 | WASHER Ø10X18 MM |
