N60ENTC23.00A003

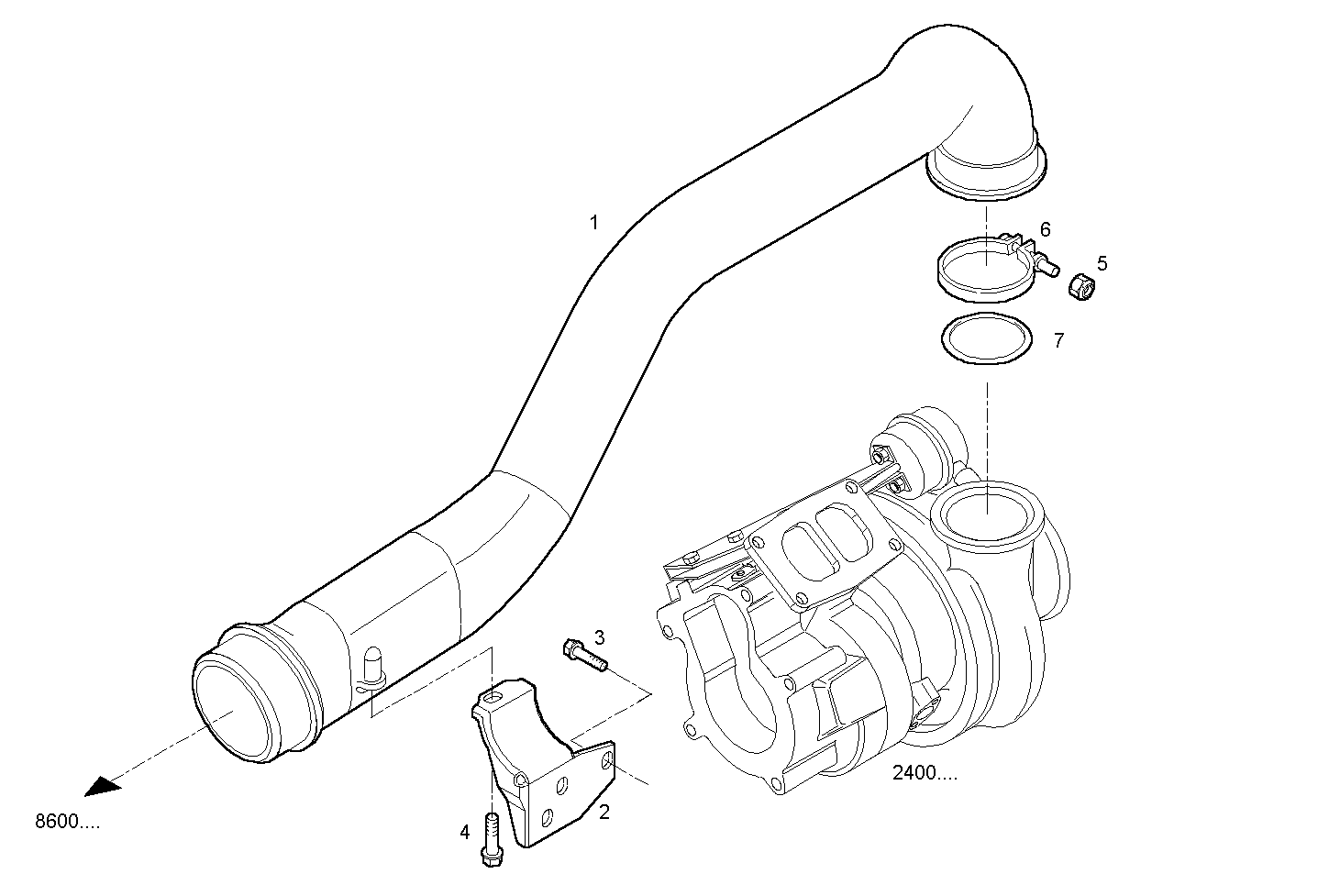

2430.056 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 4898169 | AIR PIPE/DUCT |
| 2 | 4898171 | FASTENING BRACKET |
| 3 | 4899068 | HEXAGON BOLT M8X17 MM |
| 4 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 5 | 4899098 | HEXAGON NUT |
| 6 | 504043157 | CLIP |
| 7 | 4899087 | O-RING |
