N60ENTC23.00A003

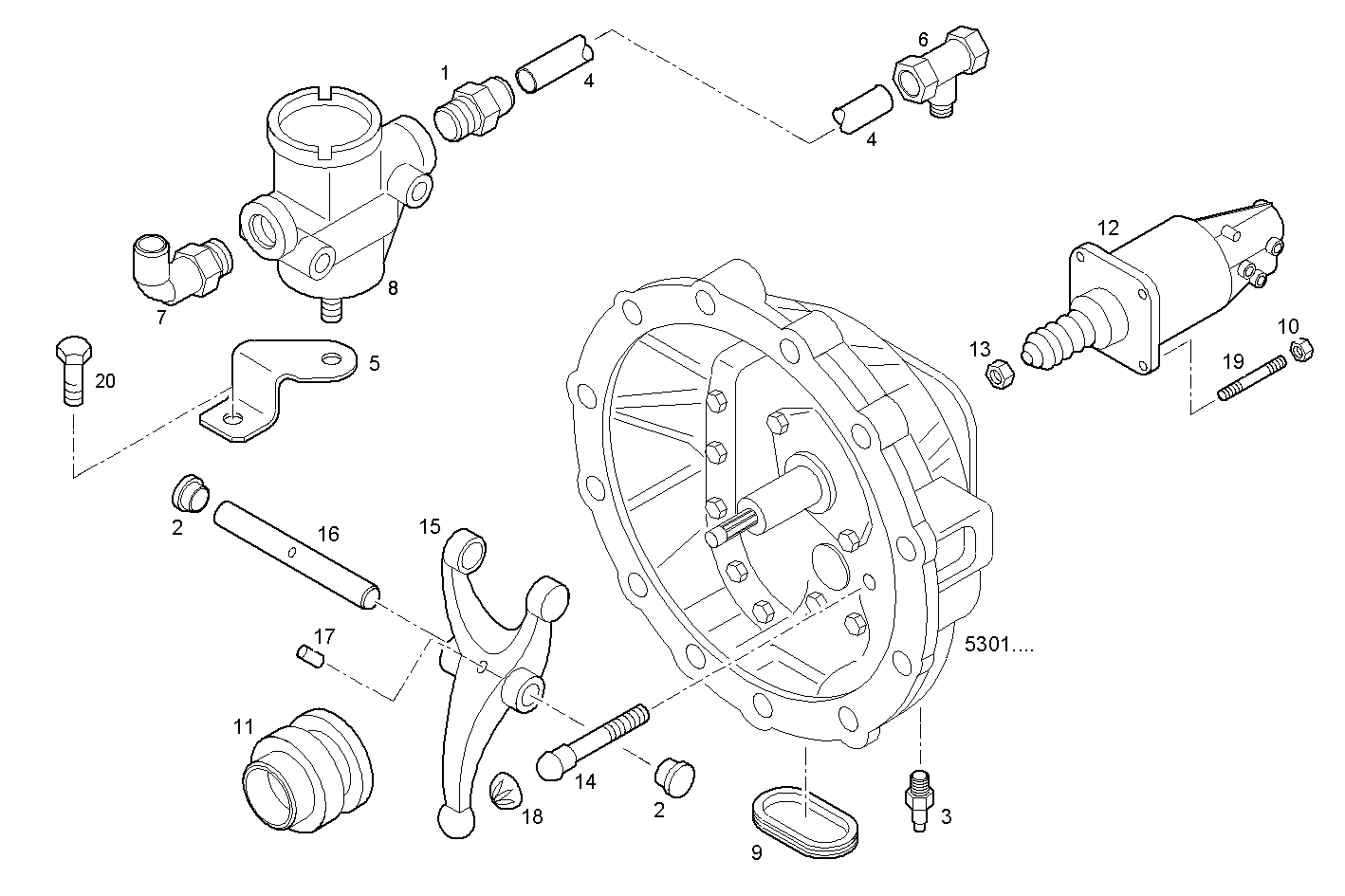

5200.002 CLUTCH
| Item |
Part number |
Description |
|
1 |
41285125 |
PIPE SOCKET |
|
2 |
41801495 |
LOCK PLUG |
|
3 |
17036915 |
LUBE FITTING |
|
4 |
98489309 |
PLASTIC TUBE |
|
5 |
98420437 |
RETAINER |
|
6 |
4832088 |
T-COUPLING |
|
7 |
4824679 |
ELBOW COUPLING |
|
8 |
98412064 |
RELIEF VALVE |
|
9 |
42103388 |
COVER |
|
10 |
17044725 |
HEXAGON NUT M8 |
|
11 |
504070593 |
RELEASE SLEEVE |
|
12 |
41035648 |
CLUTCH BOOSTER |
|
13 |
16980135 |
HEXAGON NUT |
|
14 |
42103389 |
ROD |
|
15 |
42103385 |
CLEVIS |
|
16 |
42103387 |
SHAFT |
|
17 |
17258870 |
DOWEL PIN |
|
18 |
4459879 |
BUSH |
|
19 |
16746725 |
STUD |
|
20 |
16592625 |
HEXAGON BOLT M8X80 MM |
