N60ENTD20.00

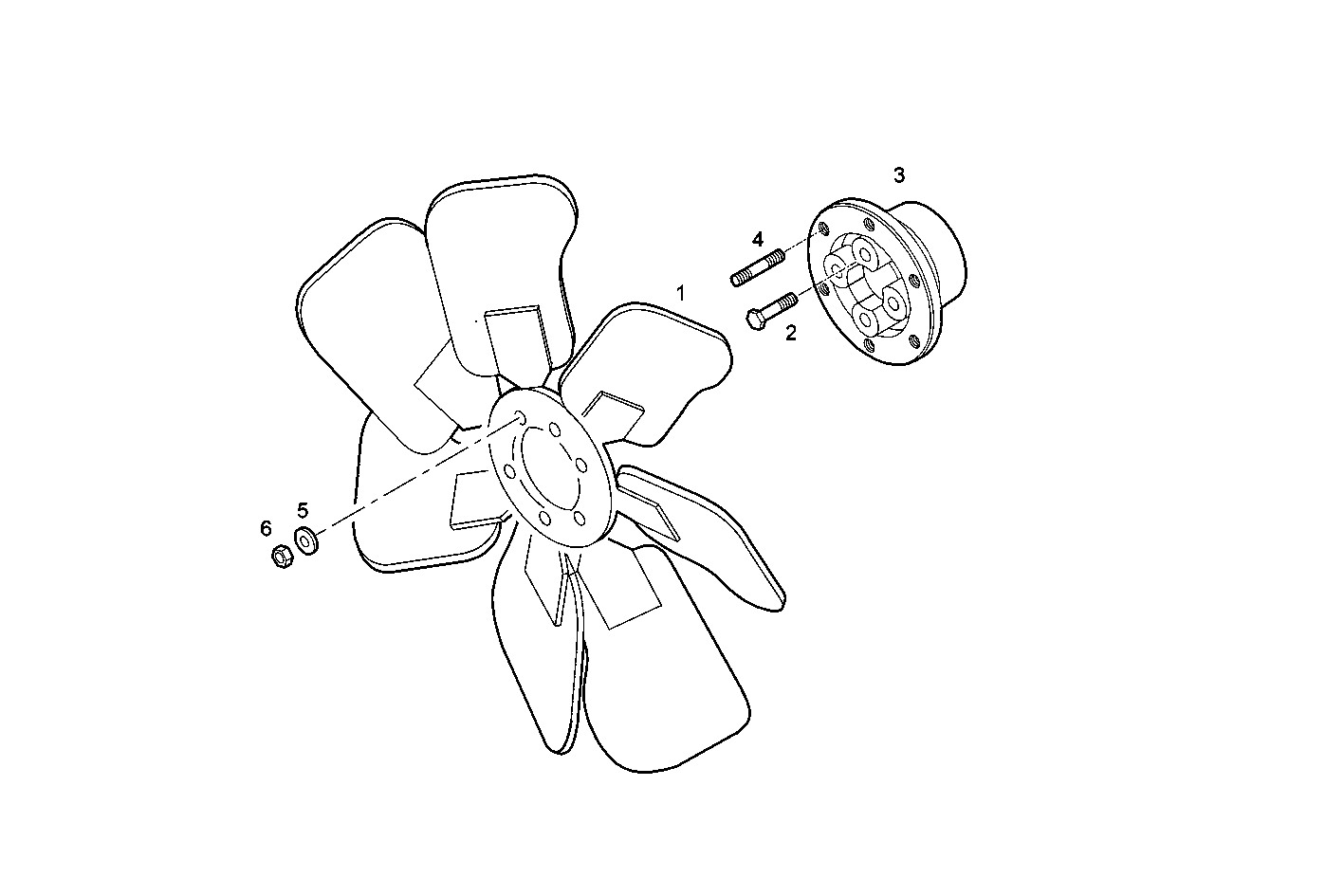

A08020510 PUSHER FAN - dia. 650 - dist. H = 105
| Item | Part number | Description |
|---|---|---|
| 1 | 8035050 | FAN |
| 2 | 16592724 | HEXAGON BOLT M10X65 MM |
| 3 | 8032094 | SPACING BAR |
| 4 | 16731324 | STUD M10X30 MM |
| 5 | 17097124 | WASHER 10x21 |
| 6 | 17038131 | HEXAGON NUT M10 |
