N60ENTD20.00

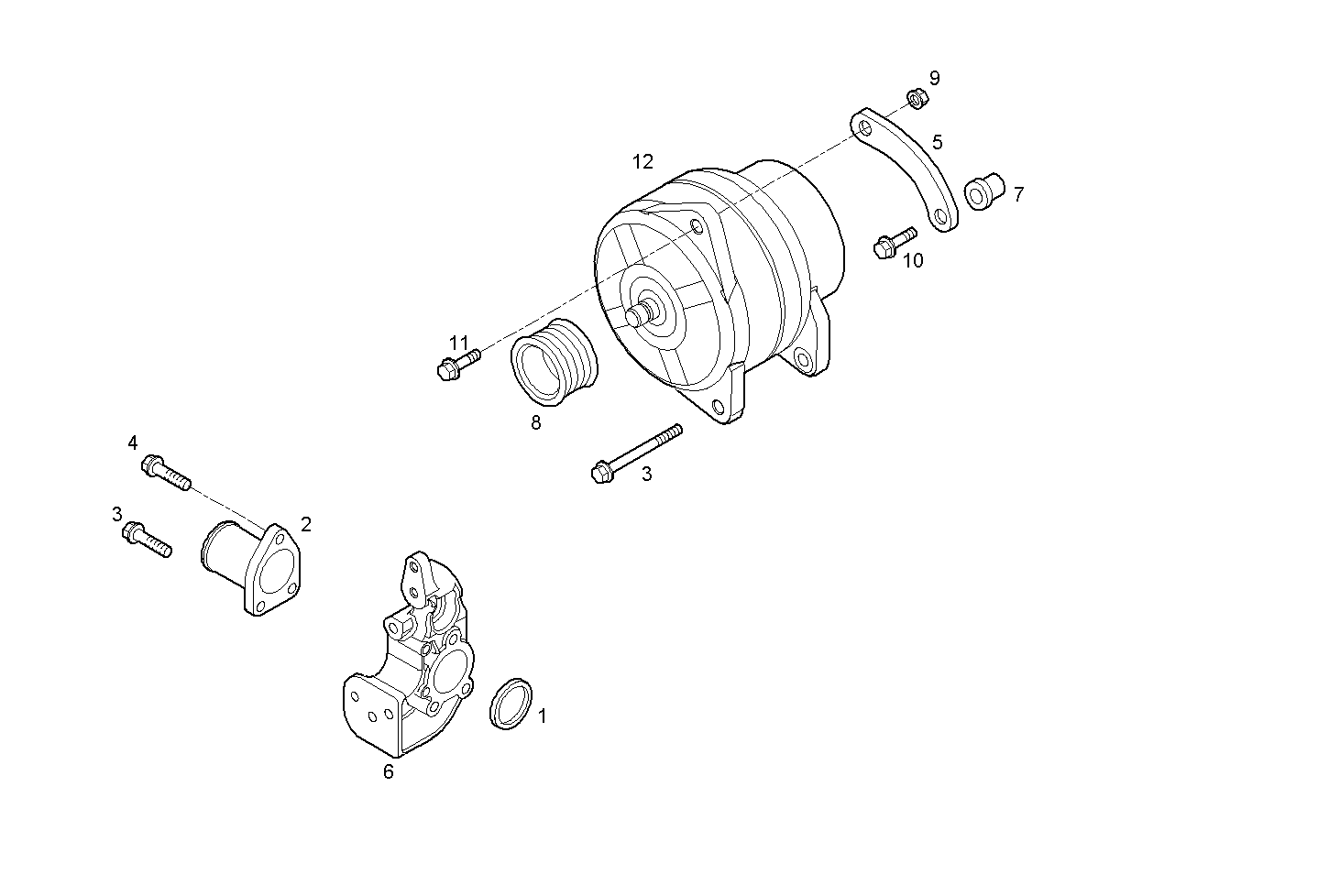

A14240503 SELF-REGULATED ALTERNATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504062710 | WASHER |
| 2 | 504018245 | WATER PIPE |
| 3 | 16592925 | HEXAGON BOLT M10X80 MM |
| 4 | 16593124 | HEXAGON BOLT M10X100 MM |
| 5 | 8036565 | FASTENING BRACKET |
| 6 | 8036563 | GENERATOR SUPPORT |
| 7 | 8036564 | SPACING BAR |
| 8 | 8036600 | GENERATOR PULLEY |
| 9 | 17044821 | NUT M10 |
| 10 | 16593125 | HEXAGON BOLT M10X100 MM |
| 11 | 16587125 | HEXAGON BOLT M10X25 MM |
| 12 | 8036232 | ALTERNATOR |
