N60ENTD20.00

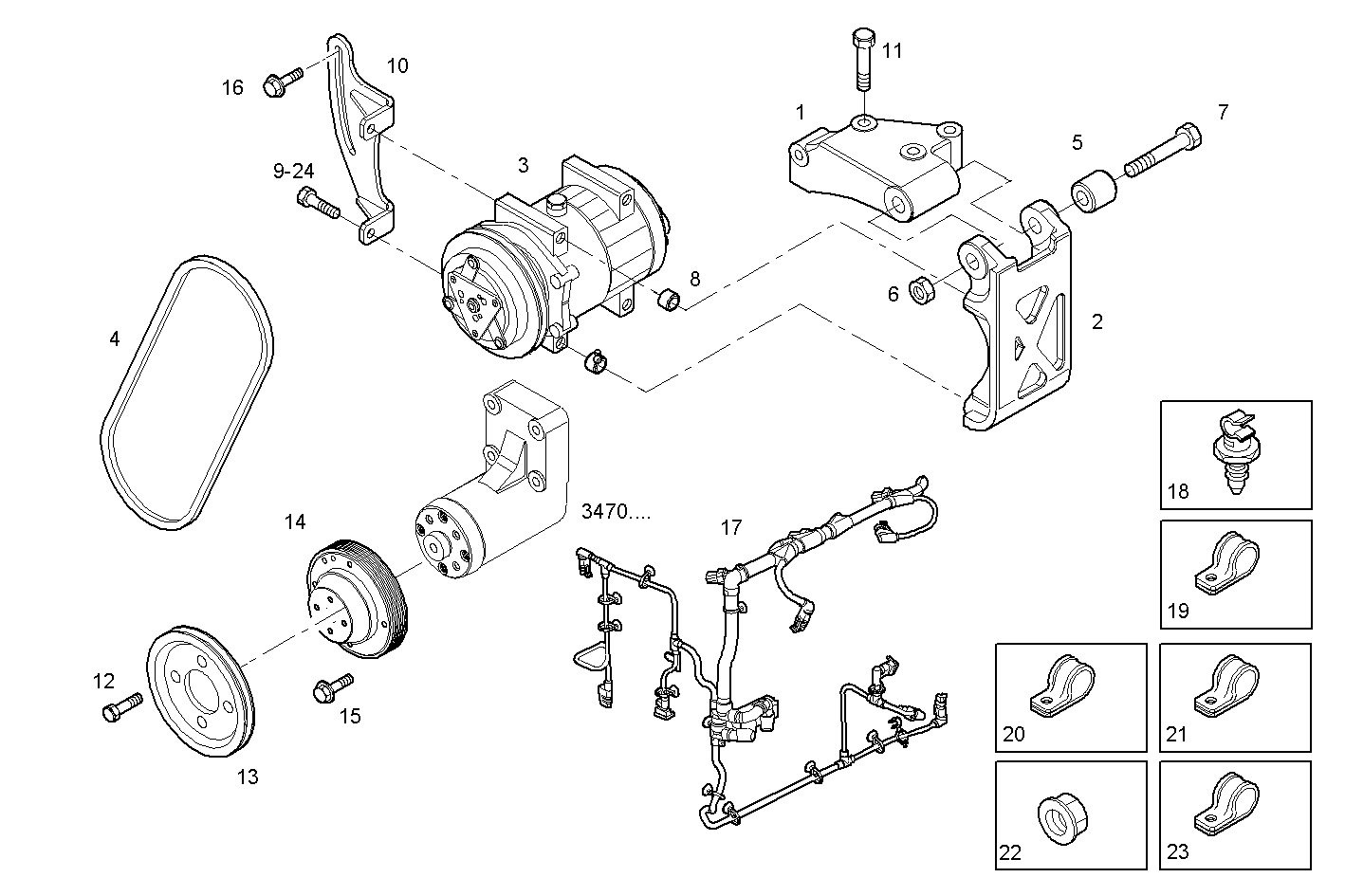

A81000503 COMPRESSOR AIR CONDITIONING

Iveco/FPT COMPRESSOR AIR CONDITIONING

Item Part number Description
1 500387902 SUPPORT
2 500387643 SUPPORT
3 500388059 AIR COND.COMPRESS.
4 4749445 V-BELT
5 98433179 SPACING BAR
6 17044921 HEXAGON NUT M12
7 16599724 HEXAGON BOLT M12X130 MM
8 4895227 DOWEL PIN
9 504056183 HEXAGON BOLT M8x1.25x105 MM
10 500387903 TENSIONER
11 4899144 HEXAGON BOLT M10X1,5X50 MM
12 16586324 HEXAGON BOLT M8X1,25X20 MM
13 504083372 COMPRESSOR PULLEY
14 504083374 PULLEY
15 16675834 HEXAGON BOLT M10X30 MM
16 4899147 HEXAGON BOLT
17 504011726 WIRE/CABLE ENGINE
18 504063553 SPRING CLAMP
19 17316590 PIPE CLIP Ø12 MM
20 17315390 FASTENING BRACKET
21 17315690 FASTENING BRACKET
22 17044621 HEXAGON NUT M6
23 17315190 FASTENING BRACKET ENGINE
24 16598425 HEXAGON BOLT M8X110 MM
