N60ENTD20.00A802

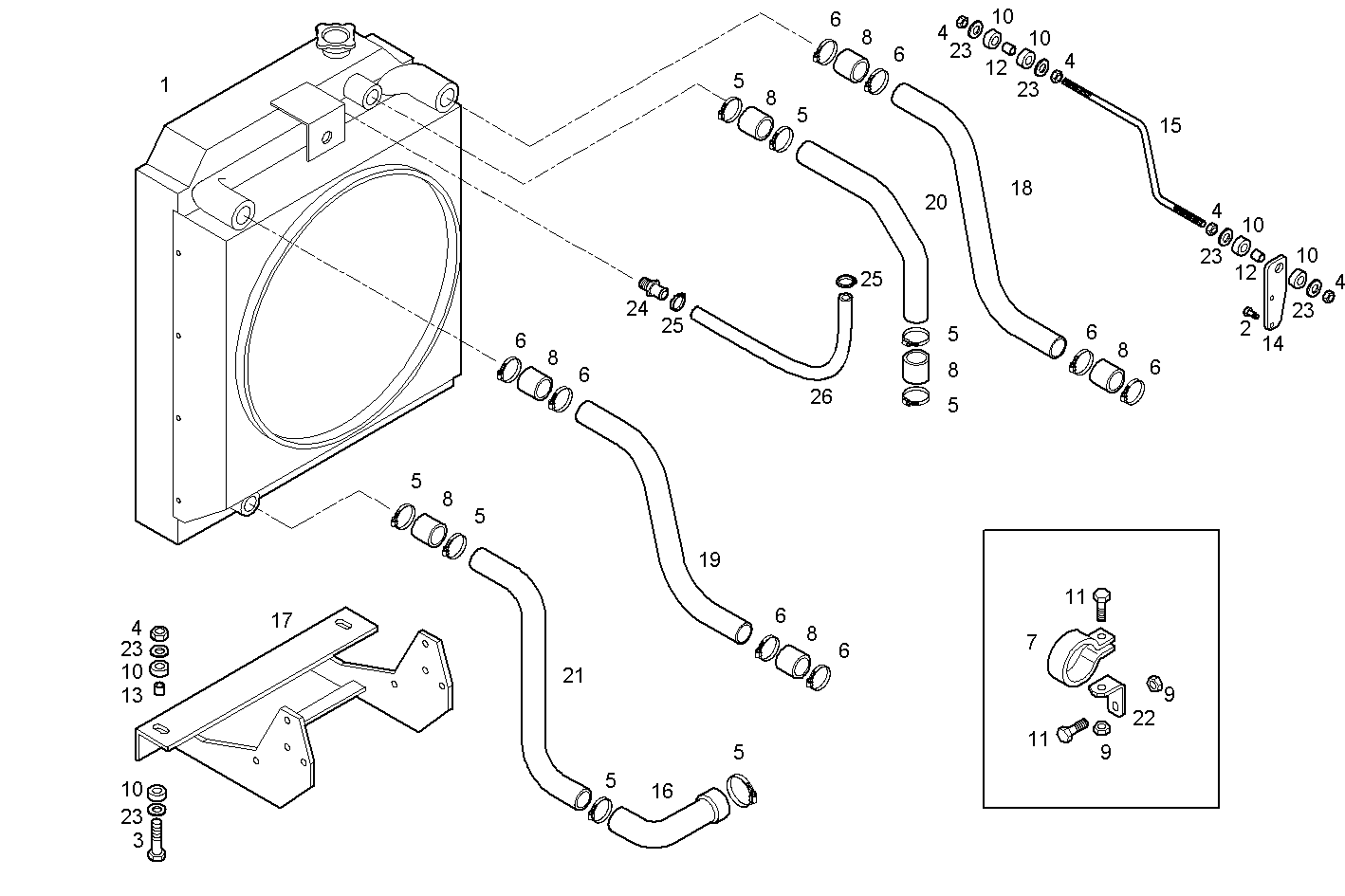

3300.027 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8037782 WATER RADIATOR OPT.
1 8042936 WATER RADIATOR
2 16586424 HEXAGON BOLT M8X25 MM
3 16588824 HEXAGON BOLT M12X1,75X70 MM
4 16750425 HEXAGON NUT M12
5 17764991 CLIP Ø50/70 MM
6 17765191 CLIP Ø70/90 MM
7 18116704 FASTENING BRACKET
8 4863960 WATER HOSE
9 4899003 HEXAGON NUT M8
10 741569 RUBBER LUG
11 16586324 HEXAGON BOLT M8X1,25X20 MM
12 741571 SPACING BAR Ø10X17 MM SP=2,3
13 8108634 SPACING BAR
14 8037825 RETAINER
15 8038147 TIE ROD
16 8039375 RUBBER SLEEVE
17 8039640 SUPPORT
18 8039662 AIR PIPE/DUCT
19 8039663 AIR PIPE/DUCT
20 8039696 WATER PIPE
21 8039697 WATER PIPE
22 8103023 RETAINER
23 741570 WASHER Ø10X17 MM SP=2,3
24 4895118 THREADED UNION
25 18087993 CLIP Ø8/16 MM
26 17724587 RUBBER HOSE Ø7,5X14,5 MM
