N60ENTF40.00

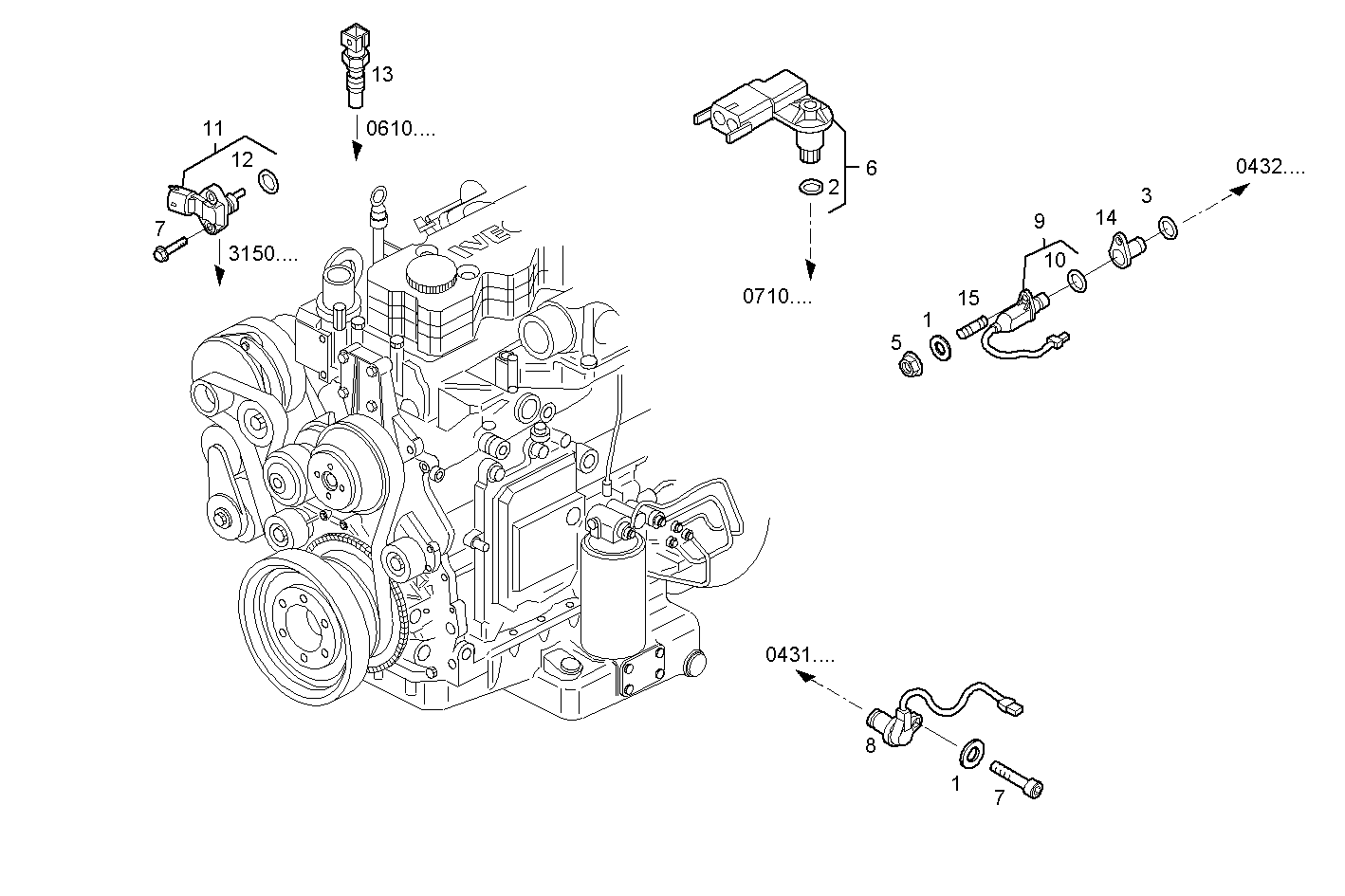

1700.036 ELECTRONIC CONTROL UNIT
Item | Part number | Description |
---|---|---|
1 | 4899124 | WASHER |
2 | 42546555 | O-RING [FROM # 158928] |
3 | 17278881 | O-RING Ø23,5 MM SP=1,7 MM |
4 | 4895817 | HEXAGON BOLT [FROM # 158928] |
5 | 17037821 | HEXAGON NUT M6X1 |
6 | 504073323 | SENSOR AIR PRESS. & TEMPER. [FROM # 158928] |
7 | 4899110 | HEXAGON BOLT |
8 | 4890189 | SENSOR SPEED |
9 | 4890190 | SENSOR SPEED |
10 | 17278481 | O-RING Ø17,17 MM SP=1,78 MM |
11 | 4890193 | SENSOR OIL PRESS. & TEMPER. |
12 | 4895477 | O-RING |
13 | 4897224 | SENSOR TEMPERATURE |
14 | 4892255 | PIPE SOCKET |
15 | 4895157 | STUD |
