N60ENTF40.00

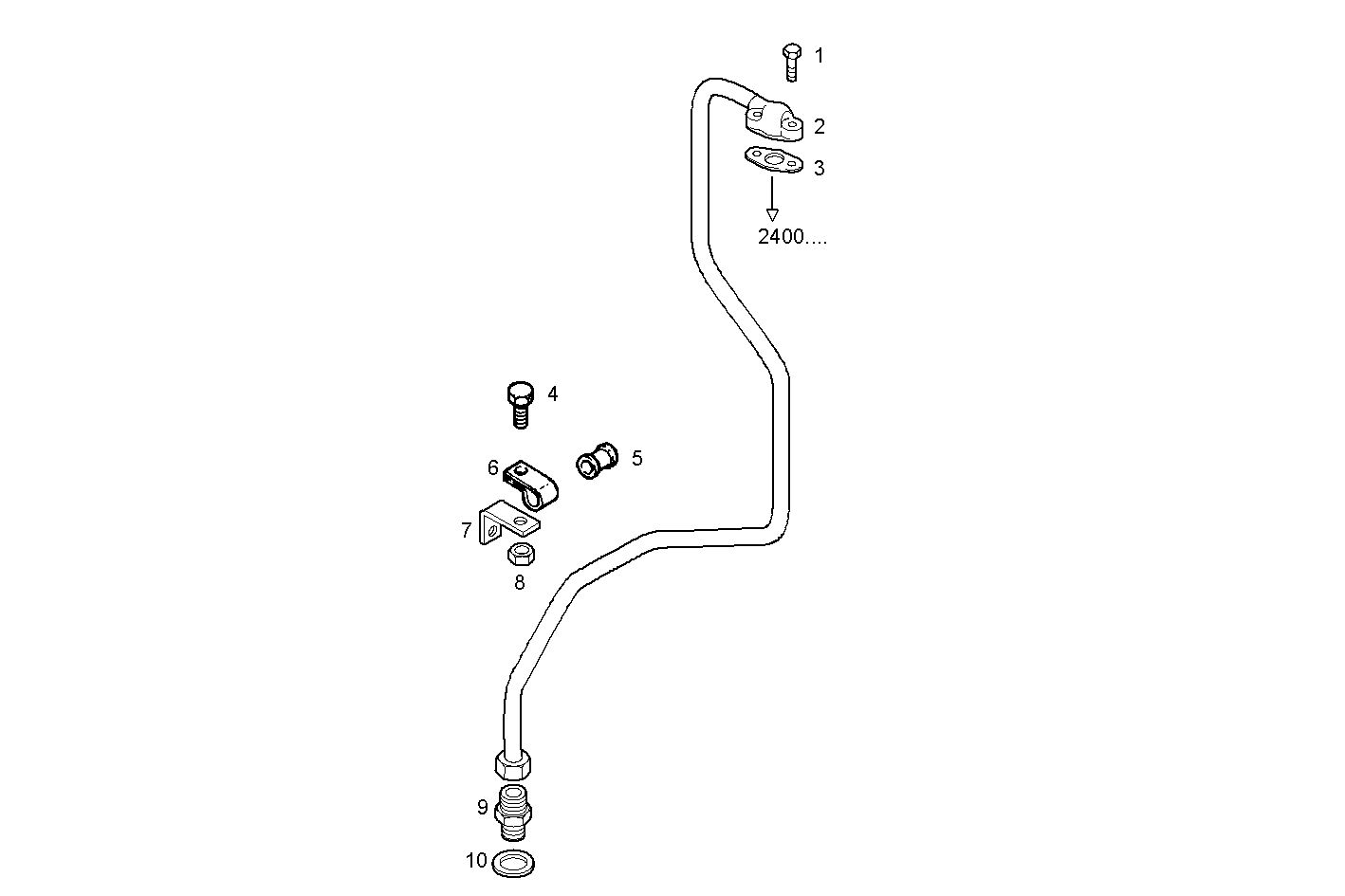

3064.008 OIL DELIVERY LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 16586625 | HEXAGON BOLT M8X35 MM |
| 2 | 8045028 | OIL LINE |
| 3 | 98415922 | FLAT ENGINE GASKET |
| 4 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 5 | 4755964 | RUBBER PAD |
| 6 | 4755963 | FASTENING BRACKET |
| 7 | 8031803 | FASTENING BRACKET |
| 8 | 16750225 | HEXAGON NUT M8 |
| 9 | 8045558 | PIPE SOCKET |
| 10 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
