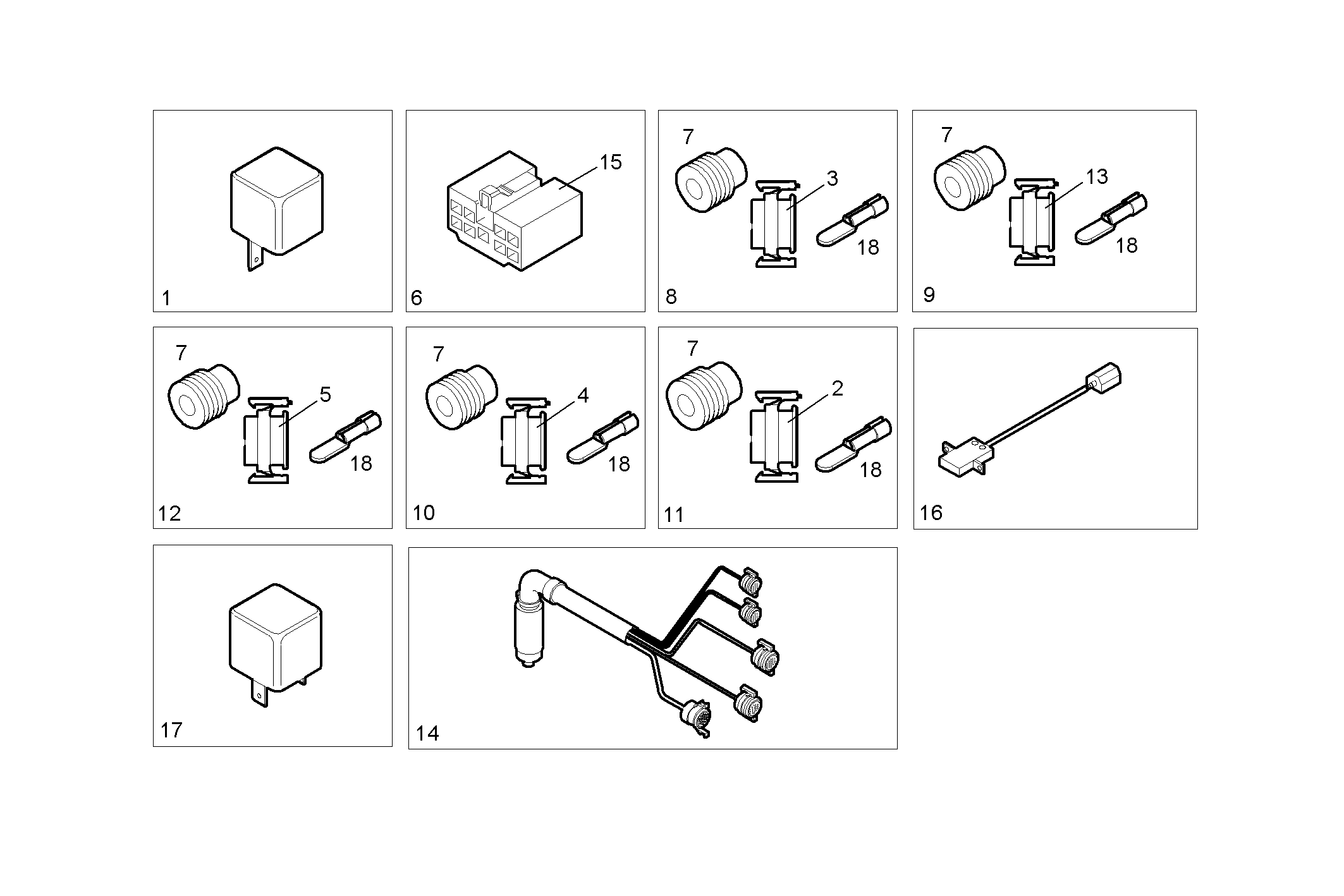

| Item |
Part number |
Description |
|
1 |
504040825 |
DIODE PLATE |
|
2 |
4859419 |
CONNECTION 10 pin male - white colour |
|
3 |
4859430 |
CONNECTION 19 pin male - black colour |
|
4 |
4859433 |
CONNECTION 19 pin male - yellow colour |
|
5 |
4859418 |
CONNECTION 10 pin male - black colour |
|
6 |
8031431 |
WIRE CONNECTOR assy 5 pin female |
|
7 |
4861937 |
RUBBER BUSH |
|
8 |
8035244 |
WIRE CONNECTOR assy 19 pin male -pin layout A |
|
9 |
8032280 |
WIRE CONNECTOR assy 19 pin male -pin layout C |
|
10 |
8032279 |
WIRE CONNECTOR assy 19 pin male -pin layout B |
|
11 |
8032281 |
WIRE CONNECTOR assy 10 pin male -pin layout G |
|
12 |
8032282 |
WIRE CONNECTOR assy 10 pin male -pin layout E |
|
13 |
4859431 |
CONNECTION 19 pin male - white colour |
|
14 |
8032263 |
WIRE/CABLE ASSY |
|
15 |
12267380 |
CONNECTION |
|
16 |
99464594 |
SWITCH for "Blink code" |
|
17 |
500362250 |
RELAY 50A 24V |
|
18 |
4863438 |
TERMINAL |
