N60ENTM37.10

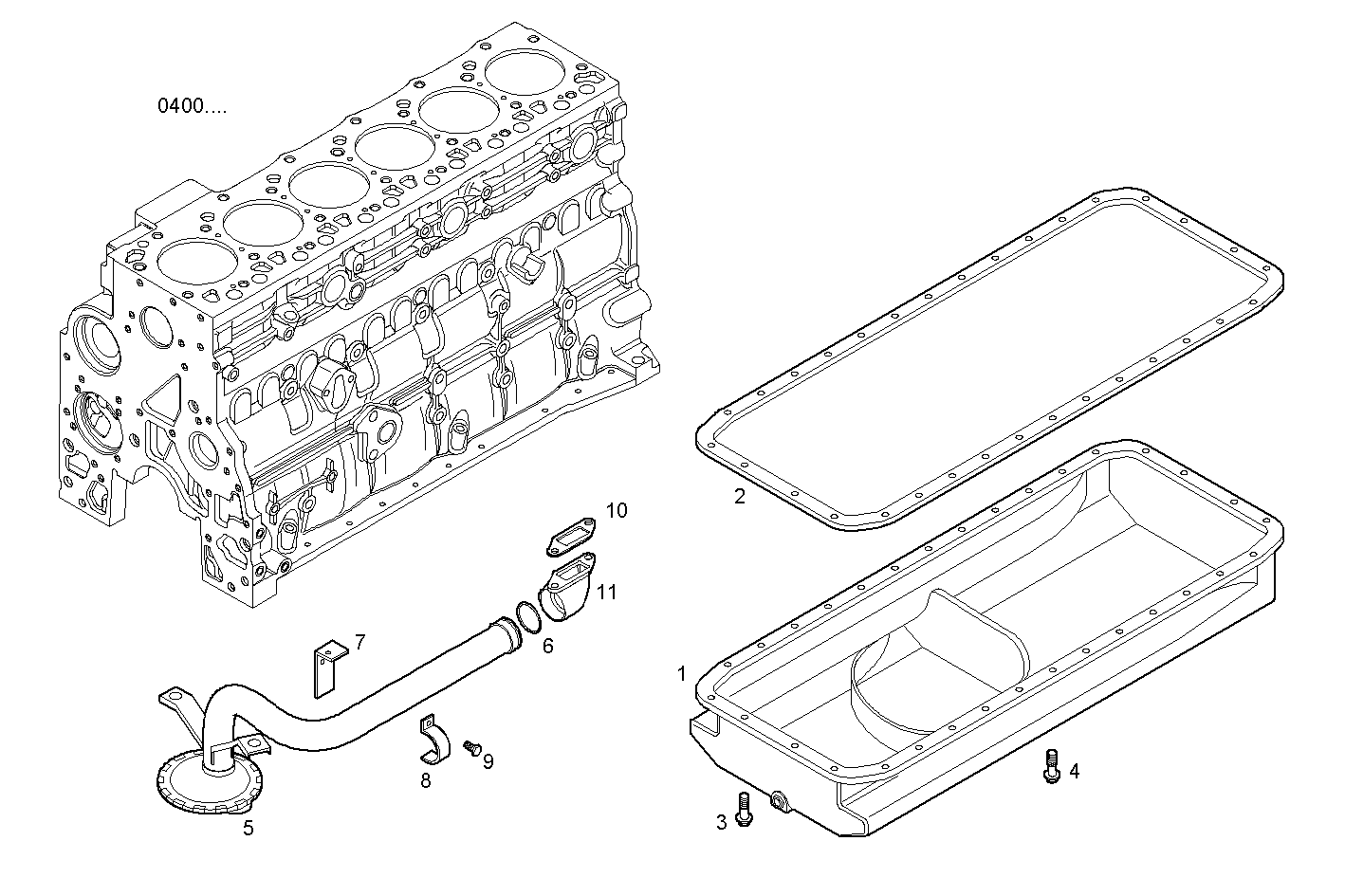

0420.167 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 8031021 OIL SUMP
2 504027340 OIL SUMP GASKET
3 16586921 HEXAGON BOLT M8X50MM
4 16673835 HEXAGON BOLT M8X30 MM
5 8033770 SUCTION STRAINER
6 17289281 O-RING Ø34,5 MM SP=3,53 MM
7 8032671 FASTENING BRACKET
8 504018526 CLIP
9 18137825 HEXAGON BOLT M6X16
10 4898301 FLAT ENGINE GASKET
11 500389915 PIPE SOCKET
