N60ENTM37.10

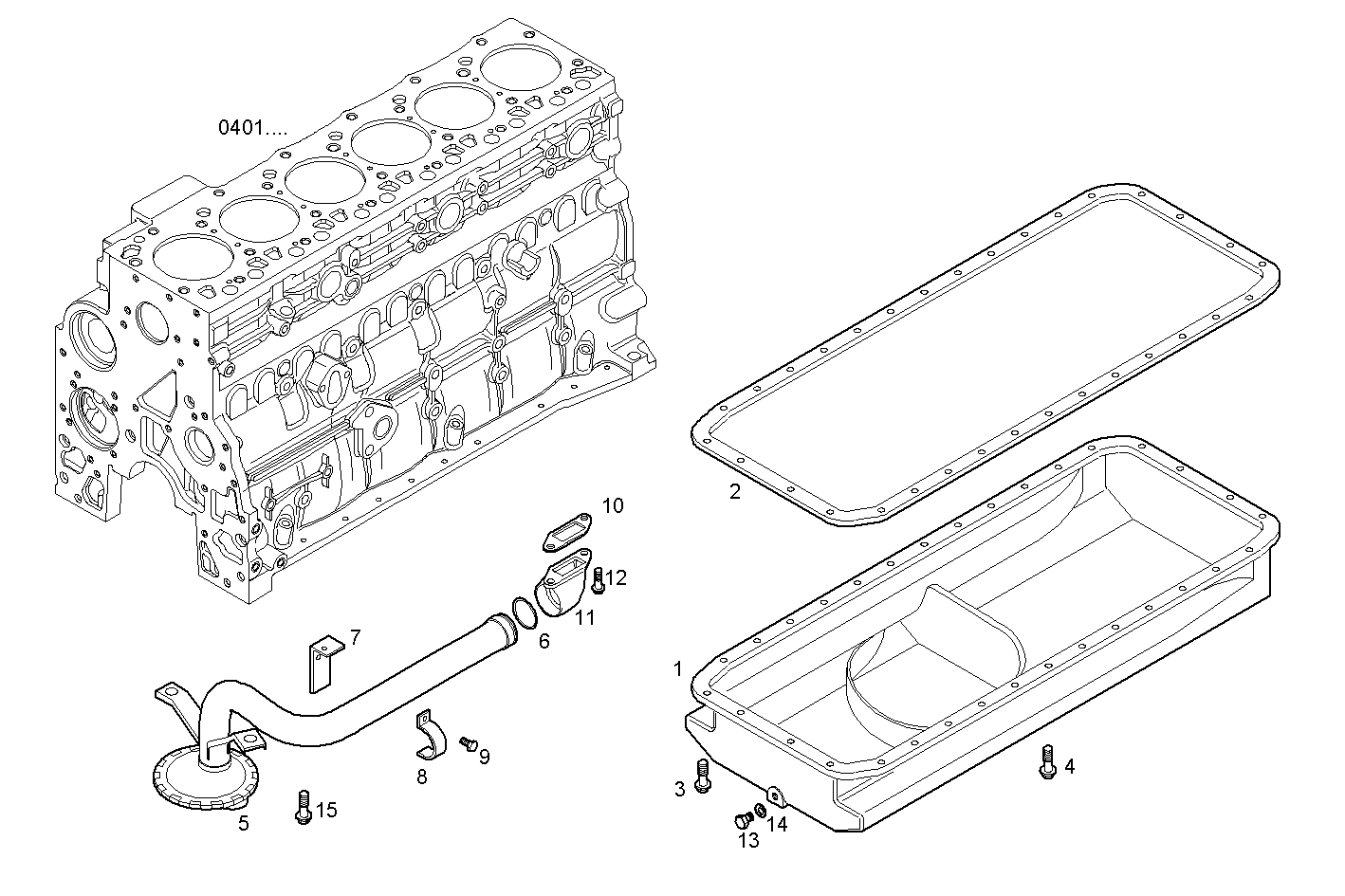

0420.181 OIL SUMP [FROM # 87629] [FROM # 87629]
| Item | Part number | Description |
|---|---|---|
| 1 | 8031021 | OIL SUMP |
| 2 | 504027340 | OIL SUMP GASKET |
| 3 | 16586921 | HEXAGON BOLT M8X50MM |
| 4 | 16673835 | HEXAGON BOLT M8X30 MM |
| 5 | 8036317 | SUCTION STRAINER |
| 6 | 17289281 | O-RING Ø34,5 MM SP=3,53 MM |
| 7 | 8032671 | FASTENING BRACKET |
| 8 | 504018526 | CLIP |
| 9 | 18137825 | HEXAGON BOLT M6X16 |
| 10 | 4898301 | FLAT ENGINE GASKET |
| 11 | 500389915 | PIPE SOCKET |
| 12 | 16673735 | HEXAGON BOLT M8X25 MM |
| 13 | 16992340 | THREADED PLUG M14X1,5 |
| 14 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 15 | 4895291 | HEXAGON BOLT M10X1,5X20 MM |
