N60ENTM37.10

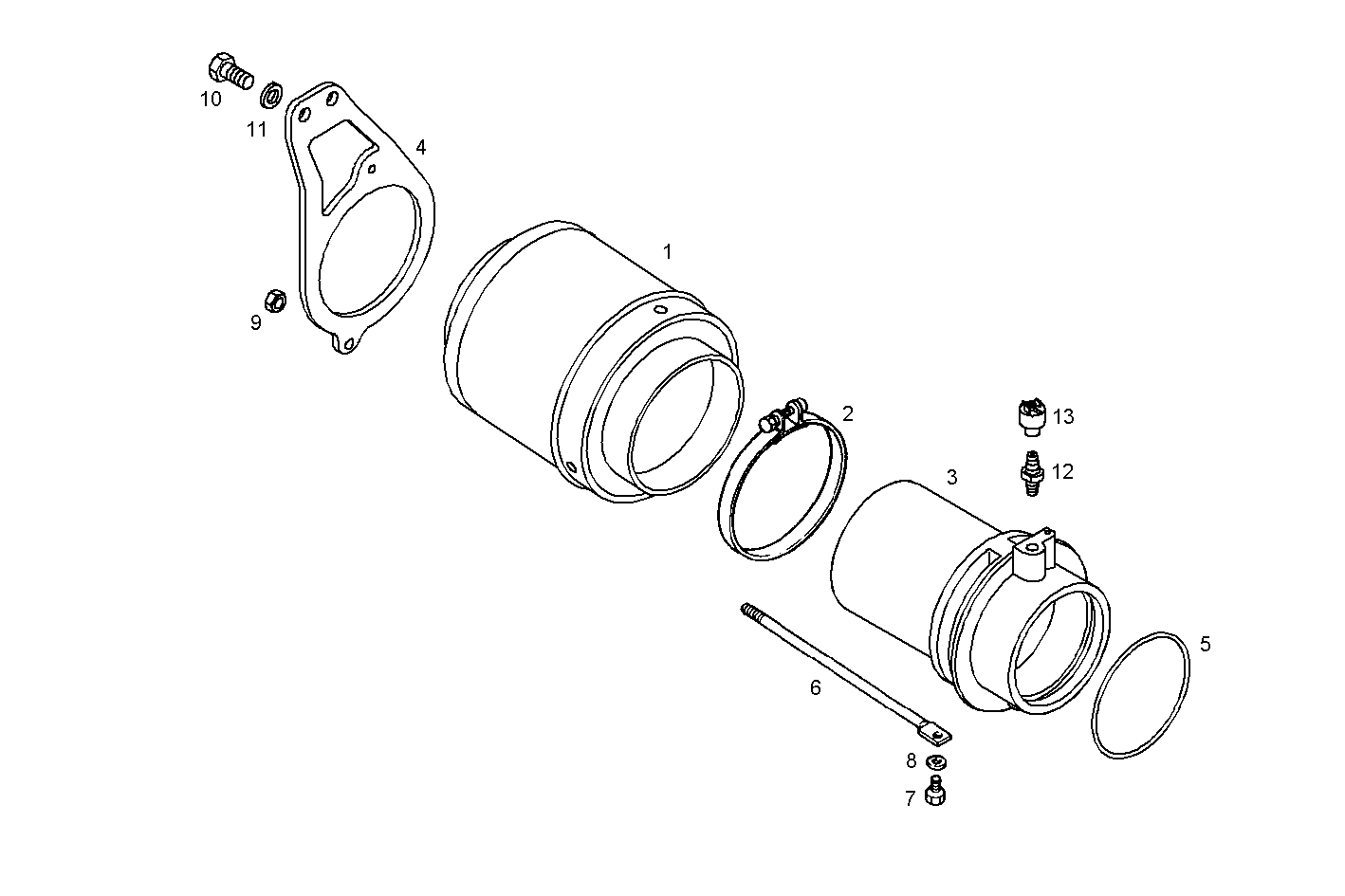

2210.050 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8017271 | AIR CLEANER |
| 2 | 8032358 | CLIP dia 154 |
| 3 | 8030923 | AIR PIPE/DUCT |
| 4 | 8031905 | RETAINER |
| 5 | 17291381 | O-RING Ø98,02 MM SP=3,53 MM |
| 6 | 8031906 | TIE ROD M6X1 |
| 7 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 8 | 17088674 | WASHER Ø6X15X1,5 MM |
| 9 | 17967521 | NUT M6X1 |
| 10 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 8009522 | PIPE SOCKET |
| 13 | 8027423 | CHOCKED FILTER INDIC. |
