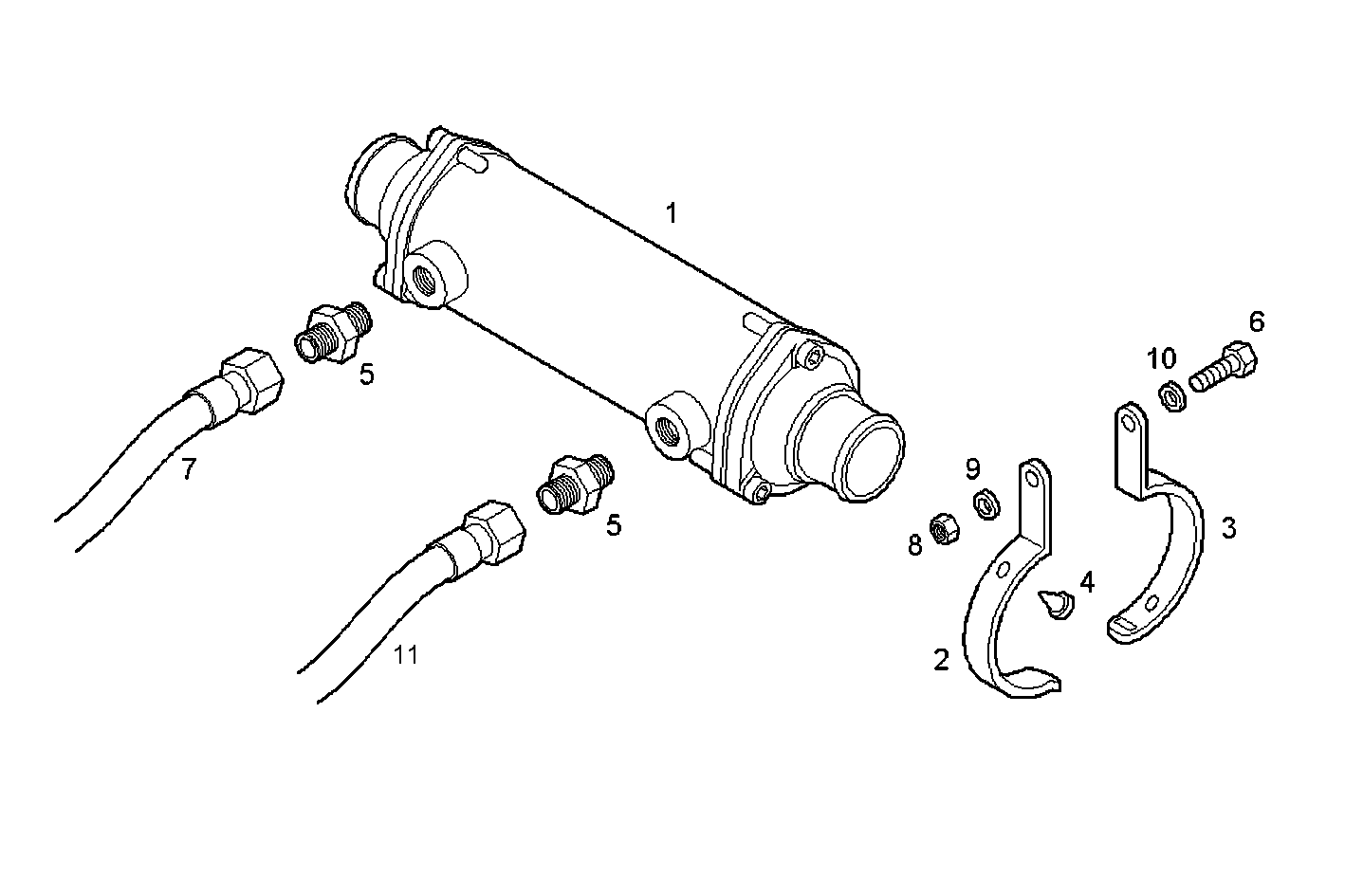

A53050502/01 STERN DRIVE - Konrad
Item | Part number | Description |
---|---|---|
1 | 8034070 | MARINE GEAR OIL HEAT EXCH |
2 | 8034488 | RETAINER |
3 | 8034489 | RETAINER |
4 | 1366290 | RUBBER LUG |
5 | 4935465 | PIPE SOCKET |
6 | 16607734 | HEXAGON BOLT M10X30 MM |
7 | 4935778 | OIL HOSE |
8 | 17038131 | HEXAGON NUT M10 |
9 | 17090174 | SPRING WASHER Ø10X20 MM |
10 | 17095004 | WASHER Ø10X18X2 MM |
11 | 4935779 | HOSE |
