N60ENTM40.10

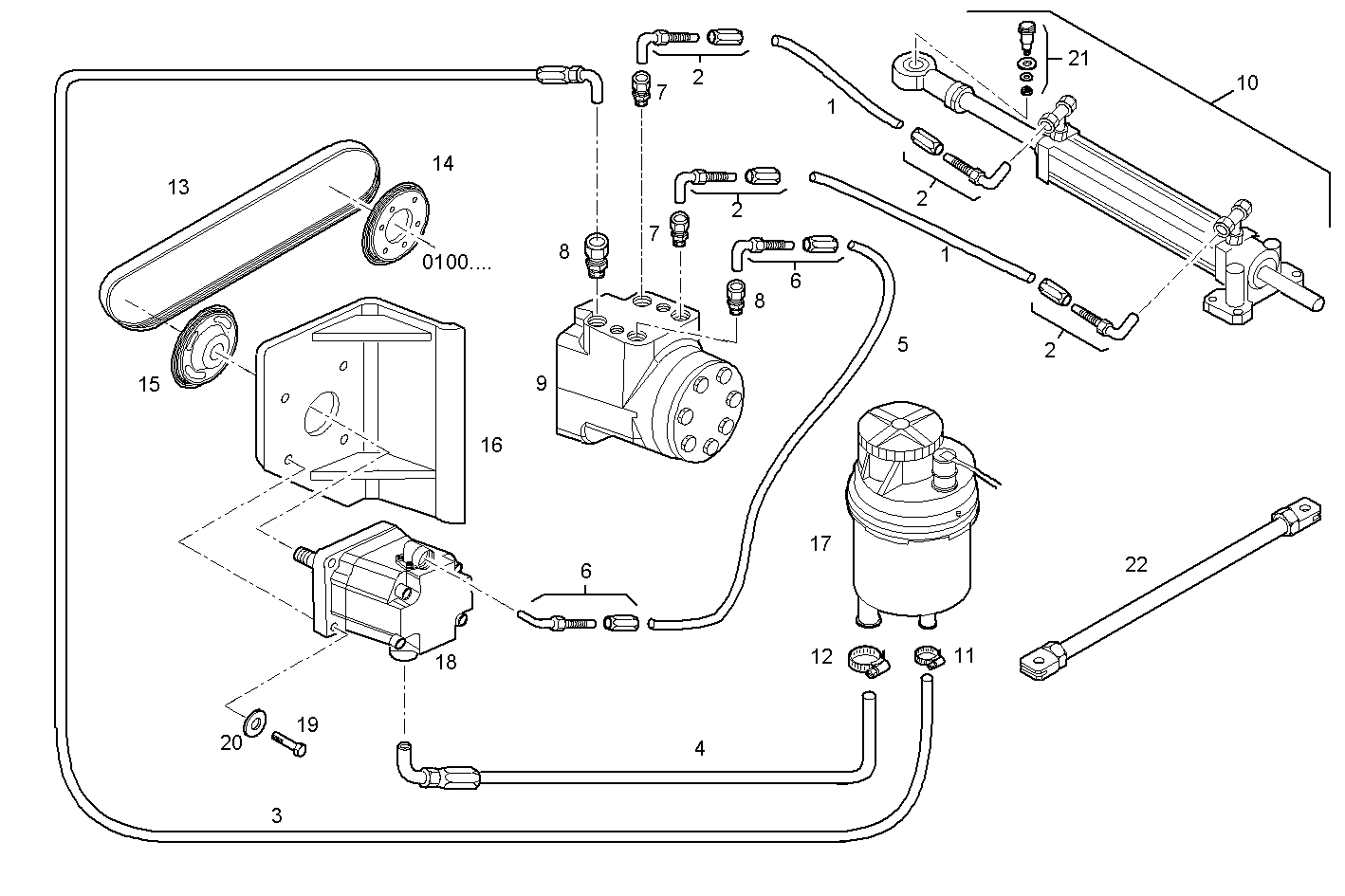

A53060502/04 STERN DRIVE - Konrad
Item | Part number | Description |
---|---|---|
1 | 8046476 | OIL HOSE |
2 | 8046477 | ELBOW COUPLING |
3 | 8046480 | OIL HOSE |
4 | 8046481 | OIL HOSE |
5 | 8046478 | OIL HOSE |
6 | 8046479 | ELBOW COUPLING |
7 | 8046210 | THREADED UNION |
8 | 8046211 | THREADED UNION |
9 | 8046089 | POWER STEERING |
10 | 8046084 | HYDROSTEER.SHAFT |
11 | 18088392 | CLIP Ø16/25 MM |
12 | 18088493 | CLIP |
13 | 8046546 | V-BELT |
14 | 504078266 | COMPRESSOR PULLEY |
15 | 8046087 | PULLEY |
16 | 8046090 | RETAINER |
17 | 8188038 | HYDROSTEER.FILTER |
18 | 8046086 | HYDRAULIC PUMP |
19 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
20 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
21 | 8046470 | PIN |
22 | 8046471 | TRACK ROD |
