N60ENTM40.10

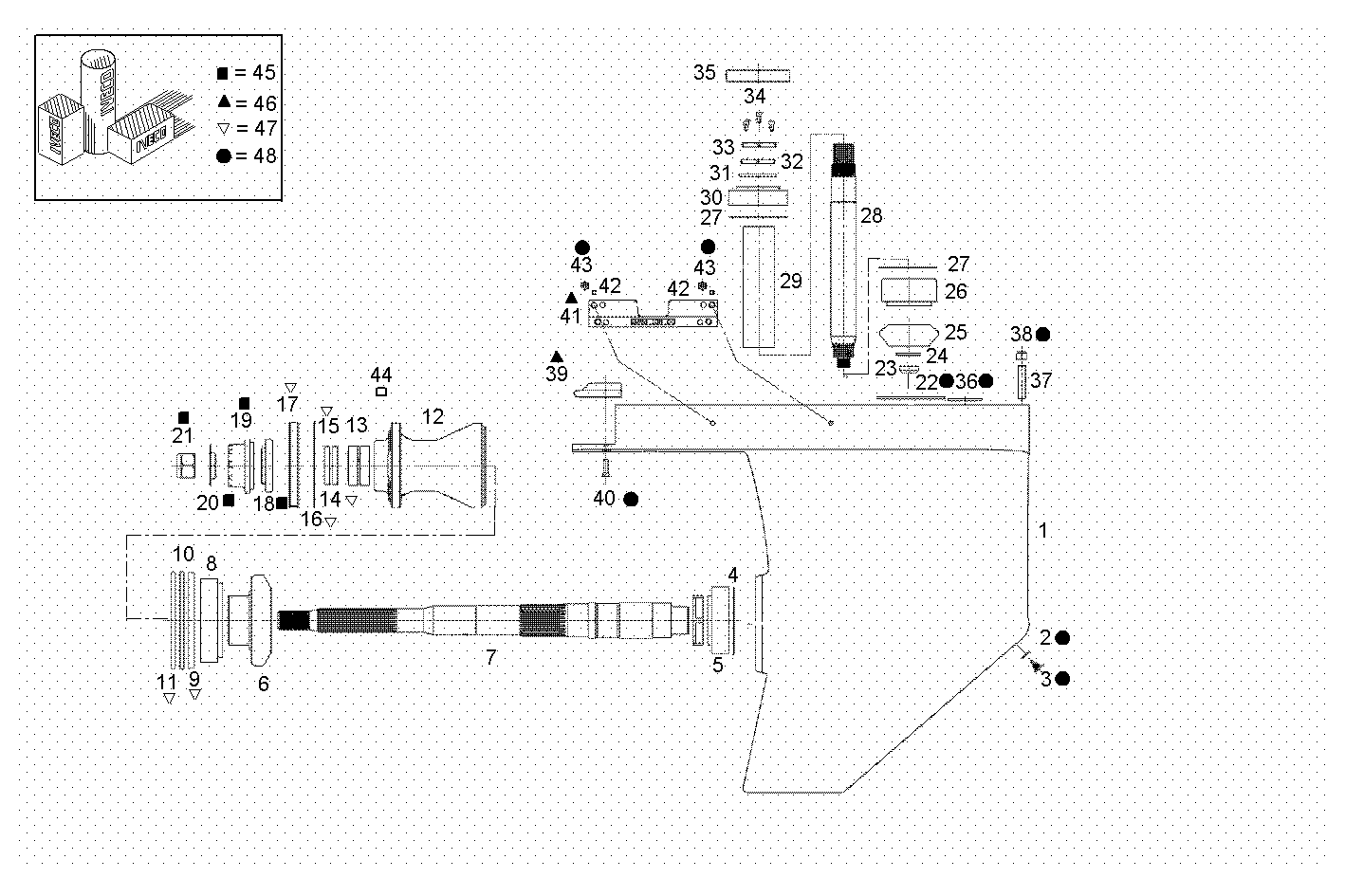

P8039545/05 STERN DRIVE - components
| Item |
Part number |
Description |
|
1 |
8095666 |
SUPPORT |
|
2 |
8095577 |
WASHER |
|
3 |
8095665 |
THREADED PLUG |
|
4 |
8095575 |
SET OF SHIMS |
|
5 |
8095573 |
DRIVE BEARING |
|
6 |
8095662 |
GEAR |
|
7 |
8095661 |
JOINT SHAFT |
|
8 |
8095678 |
DRIVE BEARING |
|
9 |
8095660 |
CENTERING RING |
|
10 |
8095659 |
WASHER |
|
11 |
8095658 |
O-RING |
|
12 |
8095657 |
HUB |
|
13 |
8095656 |
DRIVE BEARING |
|
14 |
8095655 |
WASHER |
|
15 |
8095654 |
WASHER |
|
16 |
8095653 |
WASHER |
|
17 |
8095652 |
COVER |
|
18 |
8095651 |
SPACING BAR |
|
19 |
8095650 |
SPACING BAR |
|
20 |
8095649 |
WASHER |
|
21 |
8095648 |
NUT |
|
22 |
8095647 |
O-RING |
|
23 |
8095646 |
NUT |
|
24 |
8095645 |
WASHER |
|
25 |
8095644 |
GEAR |
|
26 |
8095643 |
DRIVE BEARING |
|
27 |
8095664 |
SET OF SHIMS |
|
28 |
8095642 |
JOINT SHAFT |
|
29 |
8095641 |
SPACING BAR |
|
30 |
8095663 |
DRIVE BEARING |
|
31 |
8095640 |
WASHER |
|
32 |
8095639 |
NUT |
|
33 |
8095638 |
NUT |
|
34 |
8095593 |
SCREW |
|
35 |
8095637 |
SPACING BAR |
|
36 |
8095636 |
O-RING |
|
37 |
8095635 |
STUD |
|
38 |
8095596 |
NUT |
|
39 |
8095634 |
PLATE |
|
40 |
8095633 |
SCREW |
|
41 |
8095632 |
PLATE |
|
42 |
8095513 |
STUD |
|
43 |
8095510 |
NUT |
|
44 |
8095631 |
KEY |
|
45 |
8095667 |
KIT Kit propellers |
|
46 |
8095670 |
KIT Kit anodes |
|
47 |
8095671 |
KIT Kit propellers shaft |
|
48 |
8095672 |
KIT Kit miscellaneous |
