N60ENTM40.10A001

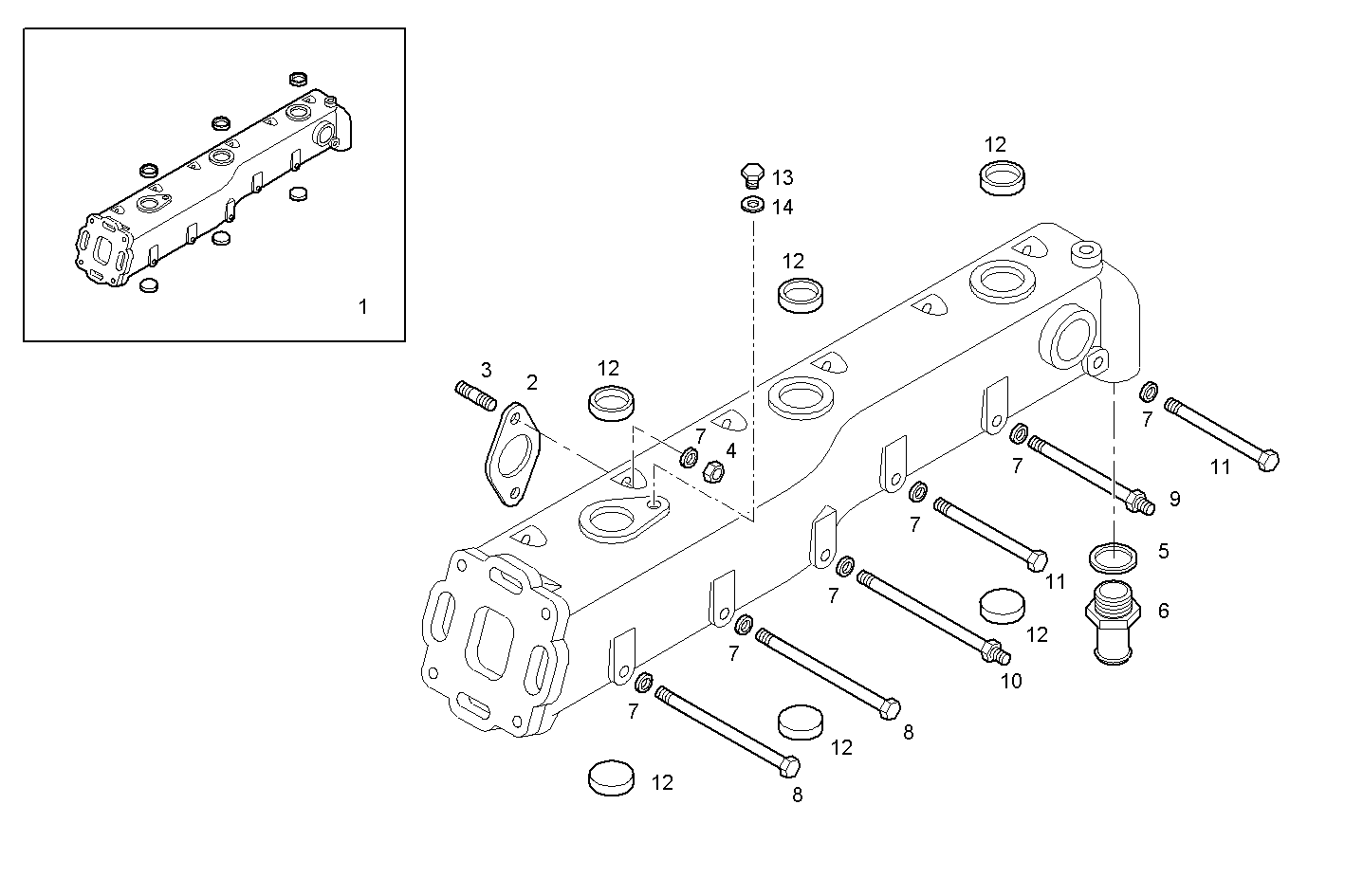

0780.063 EXHAUST MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8031858 | EXHAUST MANIFOLD ASSY |
| 2 | 2830444 | EXH. MANIFOLD GKT |
| 3 | 16731334 | STUD M10X30 |
| 4 | 17042631 | NUT M10X1,5 (10) |
| 5 | 99434480 | SEAL GASKET Ø30X40 MM |
| 6 | 8024797 | PIPE SOCKET M30X1,5 |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 16629234 | SCREW M10X1,5X150 |
| 9 | 8032233 | SCREW M8X1,25 L=145 |
| 10 | 8032643 | SCREW M8X1,25 L=175 |
| 11 | 16628934 | SCREW M10X120MM |
| 12 | 16991170 | LOCK PLUG Ø36 MM |
| 13 | 16992211 | THREADED PLUG M12X1,5 |
| 14 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
