N60ENTM40.10A001

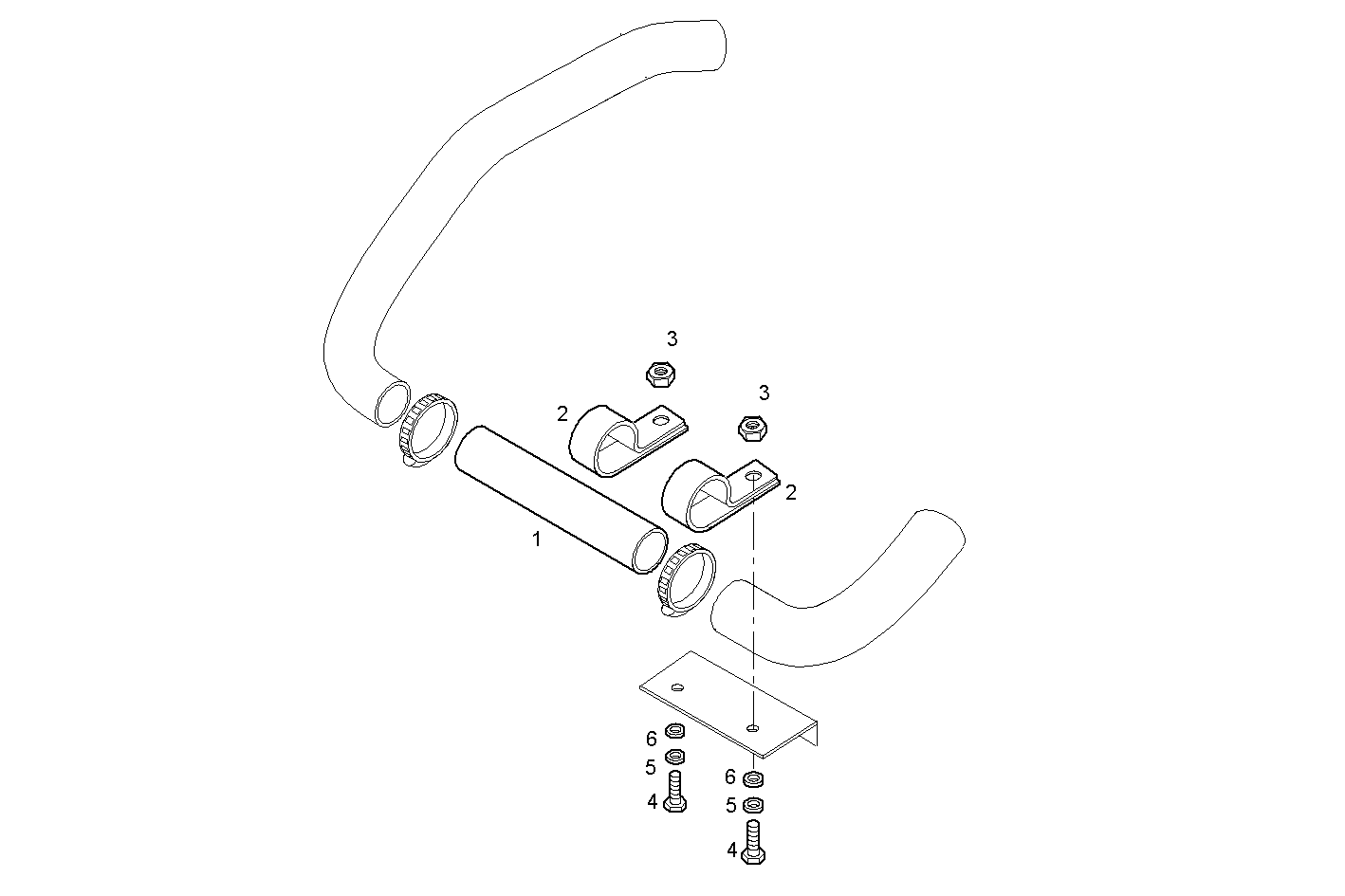

3390.090 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8034549 | SEA WATER PIPE |
| 2 | 8034457 | CLIP |
| 3 | 17038131 | HEXAGON NUT M10 |
| 4 | 16607734 | HEXAGON BOLT M10X30 MM |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 17095024 | SPRING WASHER Ø10X18 MM |
