N60ENTU20.00

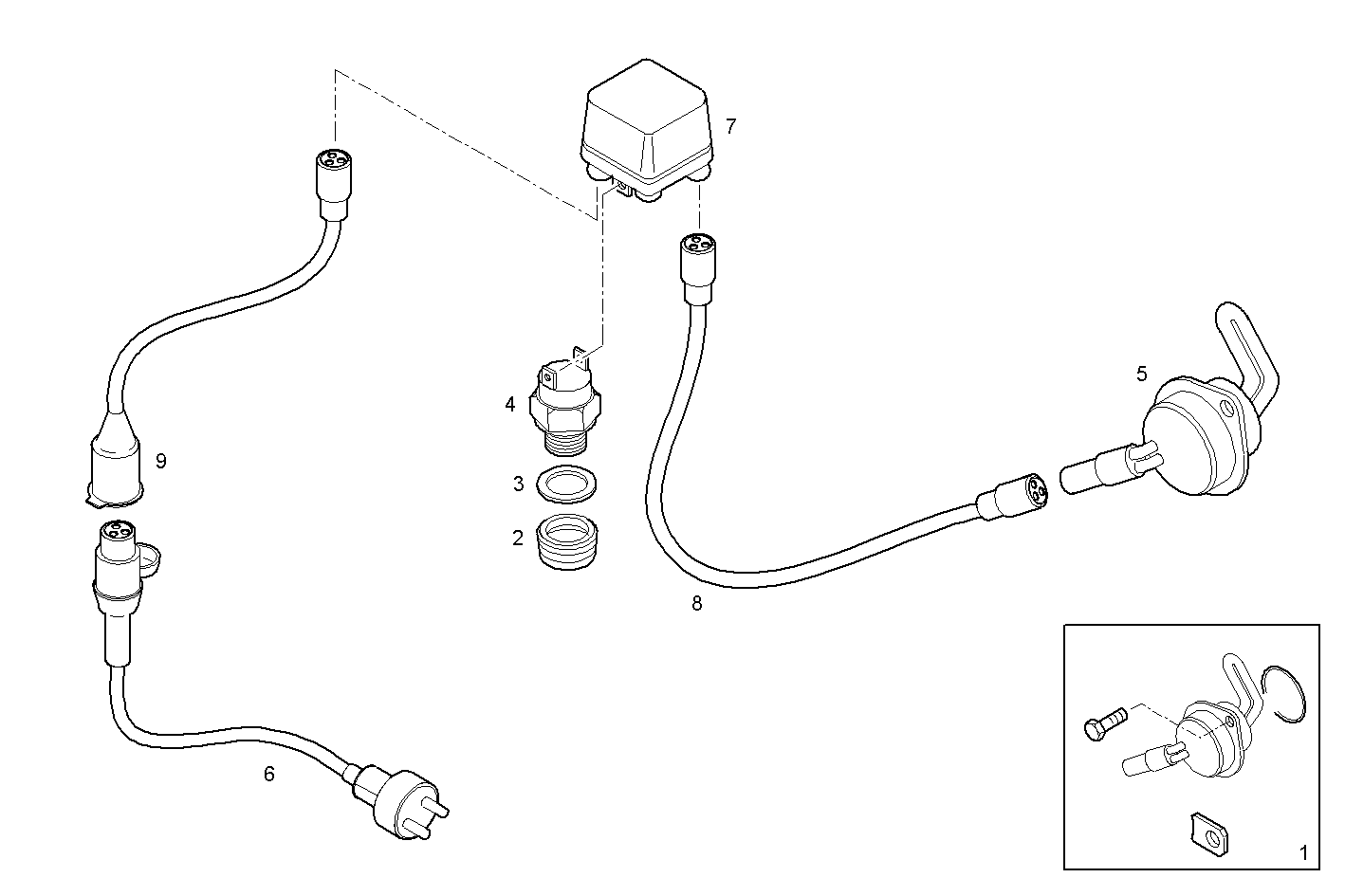

A20040508 WATER PREHEATER DEVICE - 230V - 24V
Item | Part number | Description |
---|---|---|
1 | 8094793 | KIT miscellaneus |
2 | 8033022 | PIPE SOCKET |
3 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
4 | 8038597 | THERMOSWITCH |
5 | 8038705 | HEATER |
6 | 504084179 | WIRE/CABLE |
7 | 8038600 | RELAY 24V |
8 | 8038507 | WIRE/CABLE |
9 | 503111089 | WIRE/CABLE |
