N60MNTG26.00A001

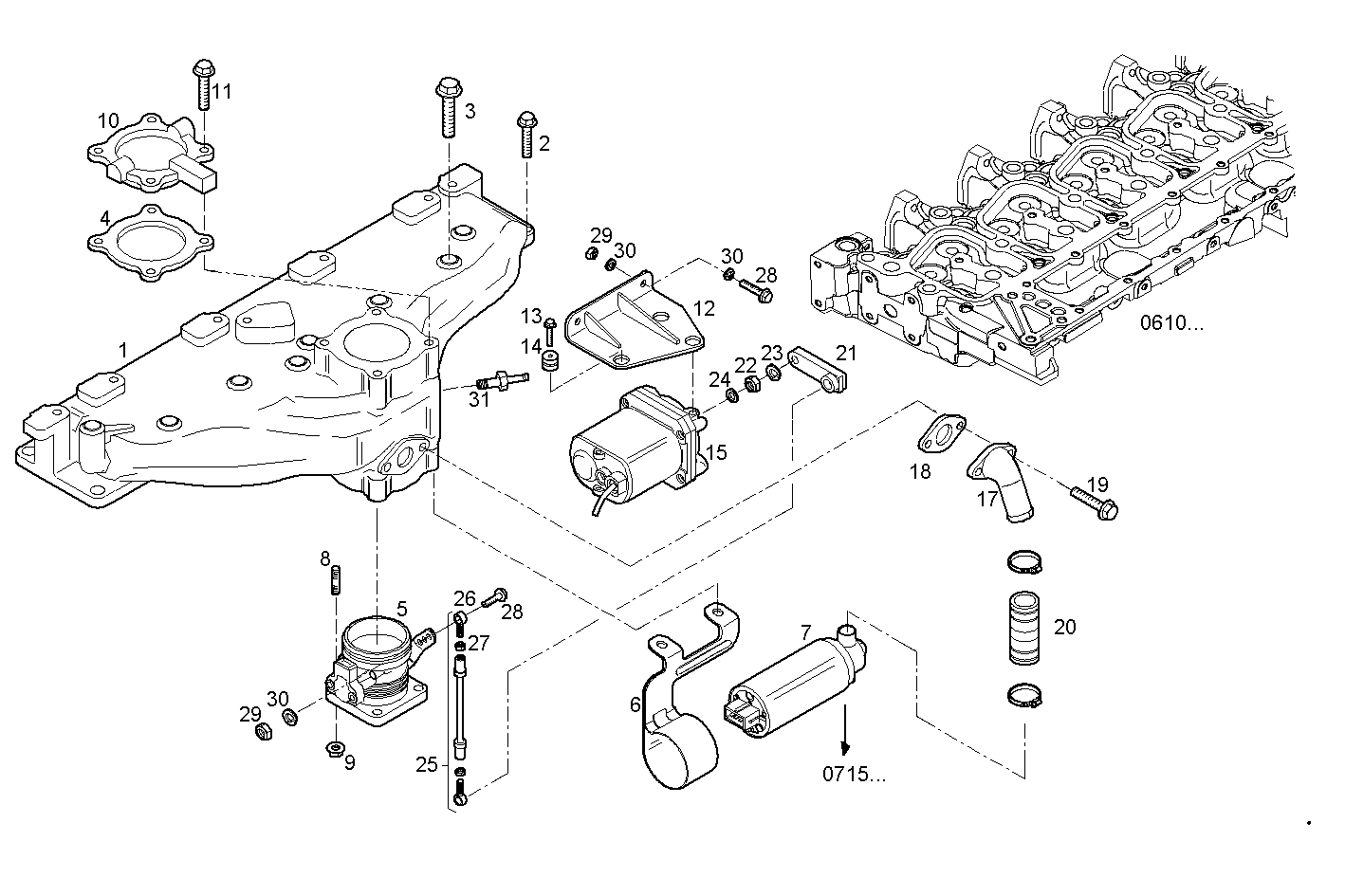

0710.212 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 504030789 | INTAKE ELBOW |
| 2 | 4899039 | HEXAGON BOLT M8X1,25X25 MM |
| 3 | 16592325 | HEXAGON BOLT |
| 4 | 504045225 | GASKET |
| 5 | 504030763 | THROTTLE |
| 6 | 504050366 | RETAINER |
| 7 | 504079793 | CONTROL VALVE |
| 8 | 16745024 | STUD M6X12X20 MM |
| 9 | 17044625 | HEXAGON NUT M6 |
| 10 | 504030767 | INTAKE COVER |
| 11 | 4899110 | HEXAGON BOLT |
| 12 | 504050374 | RETAINER |
| 13 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 14 | 8025461 | RUBBER LUG |
| 15 | 504085470 | GAS ENGINE ACTUATOR |
| 16 | 16586025 | HEXAGON BOLT M6X30 MM |
| 17 | 504051081 | FLANGED SOCKET |
| 18 | 504050377 | RUBBER GASKET |
| 19 | 4895164 | HEXAGON BOLT |
| 20 | 504050376 | RUBBER SLEEVE |
| 21 | 504081146 | ACCELERATOR PEDAL |
| 22 | 17038021 | HEXAGON NUT M8X1 |
| 23 | 17094914 | WASHER 8x16 |
| 24 | 8026477 | WASHER |
| 25 | 504064368 | STUD ASSY |
| 26 | 4934541 | BRACE/STRUT |
| 27 | 17037821 | HEXAGON NUT M6X1 |
| 28 | 10902633 | HEXAGON BOLT M6X1X25 MM |
| 29 | 17152725 | NUT M6 |
| 30 | 17094614 | WASHER Ø6X11 MM |
| 31 | 504064367 | PIPE SOCKET |
