N60MNTG26.00A001

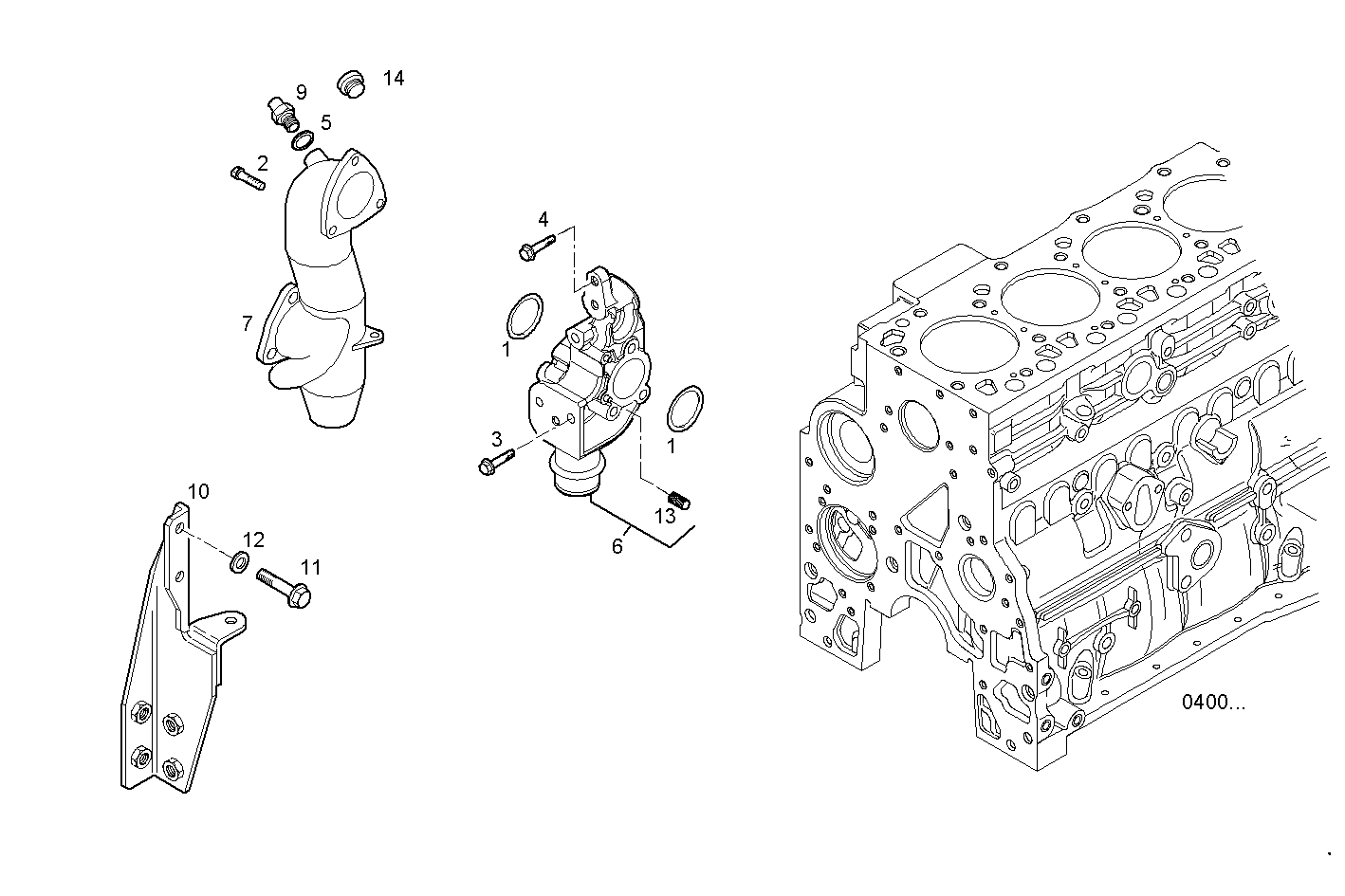

3210.329 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504062710 | WASHER |
| 2 | 18138424 | HEXAGON BOLT M8X20 MM |
| 3 | 4899109 | HEXAGON BOLT M10X1,5X80 MM |
| 4 | 16599025 | SCREW M10X120 MM |
| 5 | 18064760 | GASKET Ø30X36 MM |
| 6 | 500387647 | GENERATOR SUPPORT ASSY |
| 7 | 500387648 | WATER PIPE |
| 9 | 8024797 | PIPE SOCKET M30X1,5 |
| 10 | 504060512 | FASTENING BRACKET |
| 11 | 16677735 | HEXAGON BOLT M12X25 MM |
| 12 | 17097124 | WASHER 10x21 |
| 13 | 4895576 | DOWEL PIN |
| 14 | 60138528 | THREADED PLUG |
