N60MNTG26.00A002

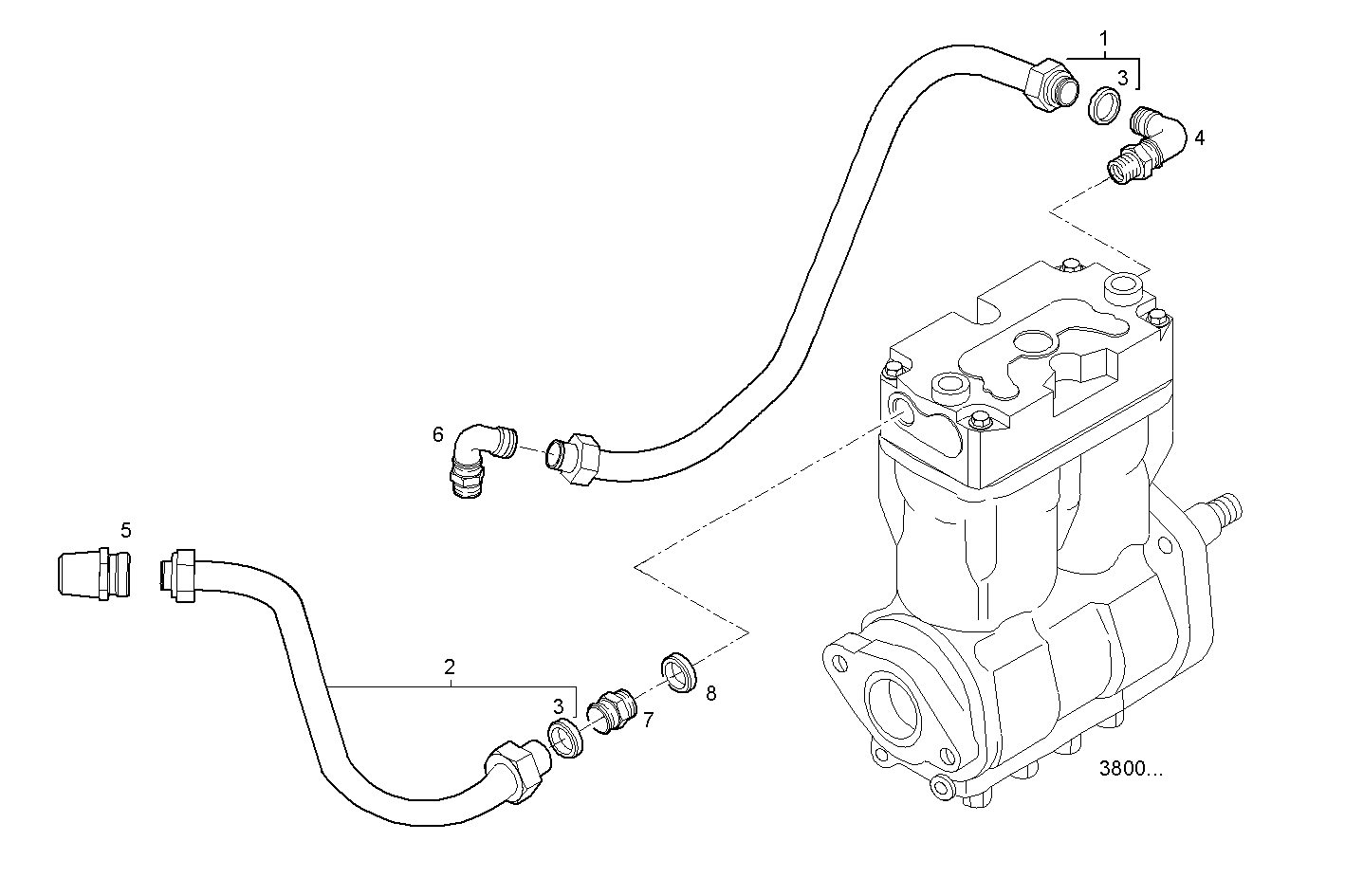

3253.010 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504085491 | WATER PIPE |
| 2 | 504083362 | WATER PIPE |
| 3 | 16510240 | WASHER Ø12 MM |
| 4 | 500393121 | ELBOW COUPLING M18X1,5 - M18X1,5 |
| 5 | 504043982 | PIPE SOCKET |
| 6 | 4897881 | ELBOW COUPLING |
| 7 | 4741574 | THREADED UNION M18X1,5 - M18X1,5 |
| 8 | 16624260 | SEAL GASKET Ø18 MM |
