N60MNTG26.00A003

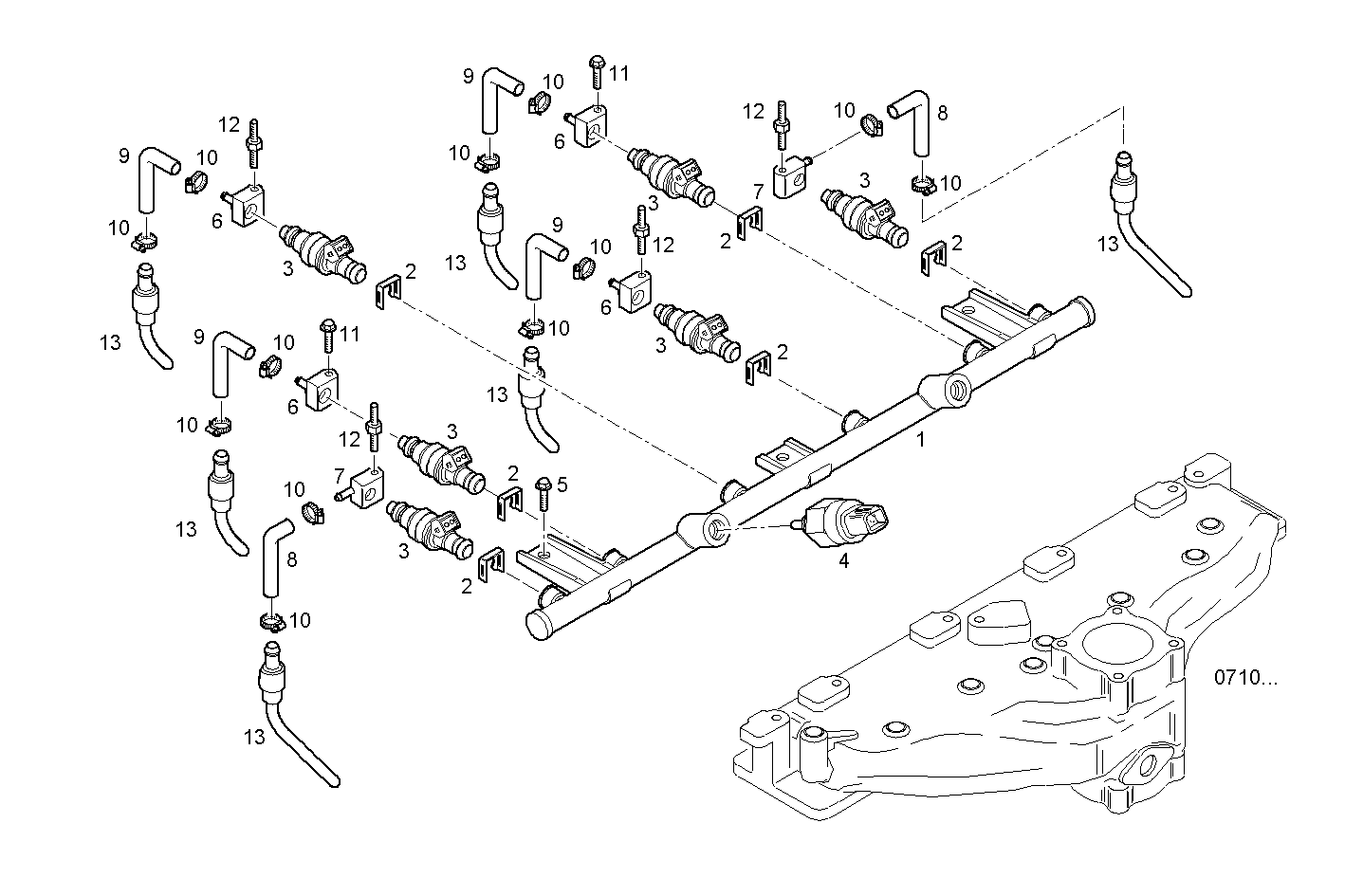

1600.023 POWERING
| Item | Part number | Description |
|---|---|---|
| 1 | 504030010 | LINE |
| 2 | 504030013 | SPRING CLAMP |
| 3 | 504079794 | GAS MOTOR ELECT.INJ. |
| 4 | 504064371 | SENSOR air press. & temp. Rail |
| 5 | 4899068 | HEXAGON BOLT M8X17 MM |
| 6 | 504029930 | PIPE SOCKET |
| 7 | 504029931 | PIPE SOCKET |
| 8 | 504204110 | RUBBER SLEEVE |
| 9 | 504204111 | RUBBER SLEEVE |
| 10 | 504213201 | CLIP |
| 11 | 16586925 | HEXAGON BOLT M8X50 MM |
| 12 | 504071005 | SCREW |
| 13 | 504029936 | PIPE SOCKET ASSY |
