N60MNTG26.00A006

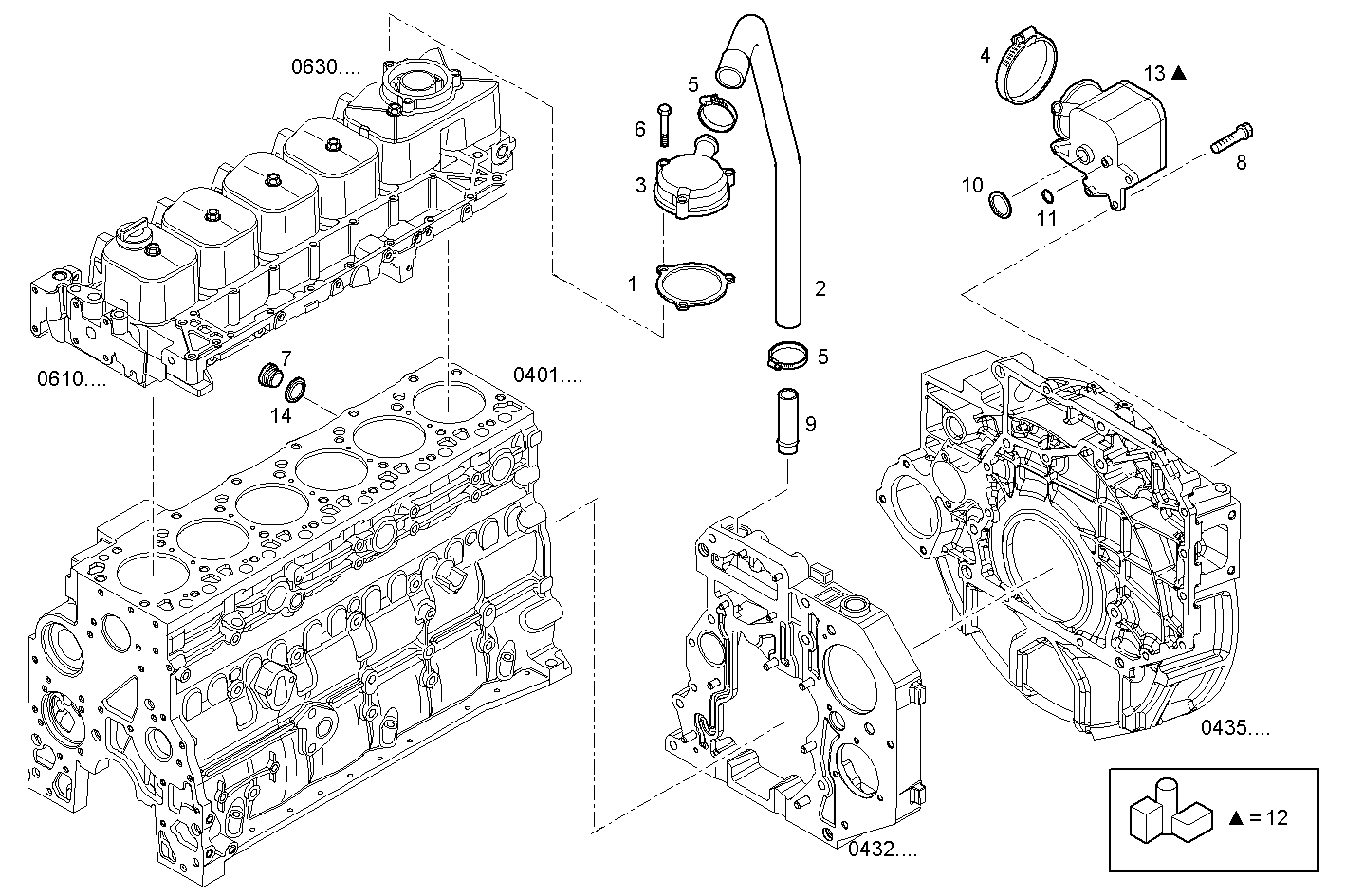

0450.238 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 504083527 | SEAL GASKET |
2 | 504083526 | CONNECTOR SLEEVE |
3 | 99445059 | COVER ASSY BUNDY |
4 | 17765192 | HOSE CLIP Ø70-90 MM |
5 | 17764694 | CLIP Ø25/40 MM |
6 | 16604124 | HEXAGON BOLT M6X40 MM |
7 | 16992211 | THREADED PLUG M12X1,5 |
8 | 4899092 | HEXAGON BOLT |
9 | 4897547 | CONNECTOR SLEEVE |
10 | 2830304 | SEAL GASKET Ø18,68 MM SP=3,53 MM |
11 | 4898372 | O-RING Ø13,11 MM SP=2,62 MM |
12 | 2992447 | KIT for breather |
13 | 4892871 | BREATHER ASSY |
14 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
