N67ENTM45.10

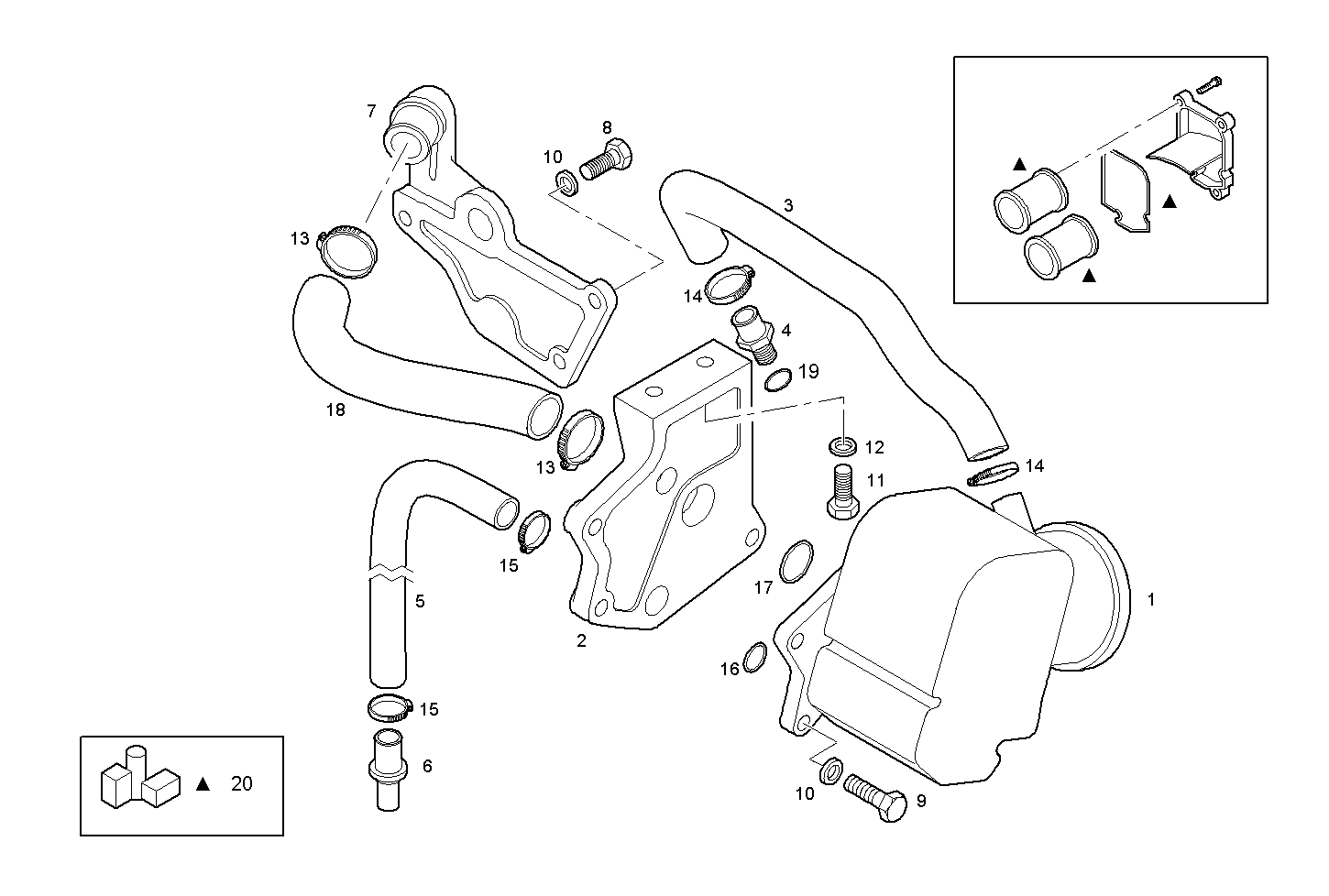

0450.180 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4892871 BREATHER ASSY
2 8032082 SUPPORT
3 8031988 WATER HOSE
4 8031987 PIPE SOCKET M16X1,5
5 8031995 WATER HOSE
6 8032079 PIPE SOCKET
7 8031993 COVER
8 16603734 HEXAGON BOLT M6X20 MM
9 10902633 HEXAGON BOLT M6X1X25 MM
10 17088474 WASHER Ø6X12 MM
11 16605624 HEXAGON BOLT M8X25 MM (8.8)
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 18088593 CLIP 25x40
14 18088493 CLIP
15 18088393 CLIP Ø16/25 MM
16 4898372 O-RING Ø13,11 MM SP=2,62 MM
17 2830304 SEAL GASKET Ø18,68 MM SP=3,53 MM
18 8034038 WATER HOSE
19 99489019 WASHER Ø16X24 MM SP=1,5 MM
20 2992447 KIT for breather
