N67ENTM45.10
1730.062 ENGINE CABLE [FROM 05-04-08] [FROM 05-04-08]

Iveco/FPT ENGINE CABLE

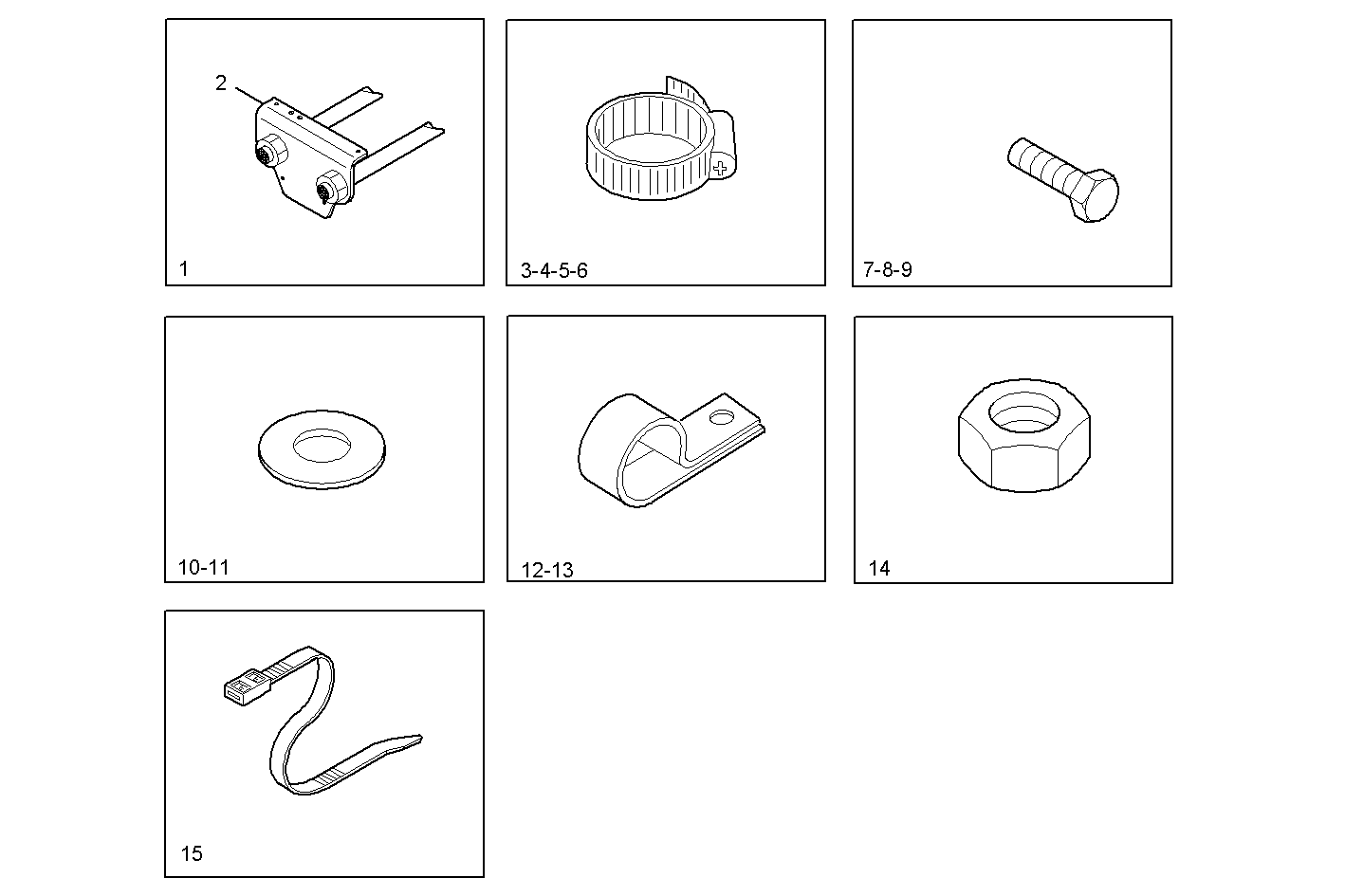

Item Part number Description
1 8050538 ENGINE HARNESS ASSY
2 8035818 PLATE
3 10450590 PIPE CLIP Ø18 MM
4 17317190 PIPE CLIP Ø24 MM
5 10450090 PIPE CLIP Ø8 MM
6 4936277 CLIP [up to 03-97]
7 16605424 SCREW M8X16 MM (8.8)
8 16586225 HEXAGON BOLT M8X1,25X16 MM
9 17458134 SCREW M12X1,75X25 MM
10 17091074 WASHER Ø12X24X2,8 MM
11 17089074 SPRING WASHER Ø6 MM
12 17316690 FASTENING BRACKET Ø20,5 MM
13 17317390 FASTENING BRACKET Ø28 MM x M8
14 17037821 HEXAGON NUT M6X1
15 14560187 CABLE STRAP
