N67ENTM45.10

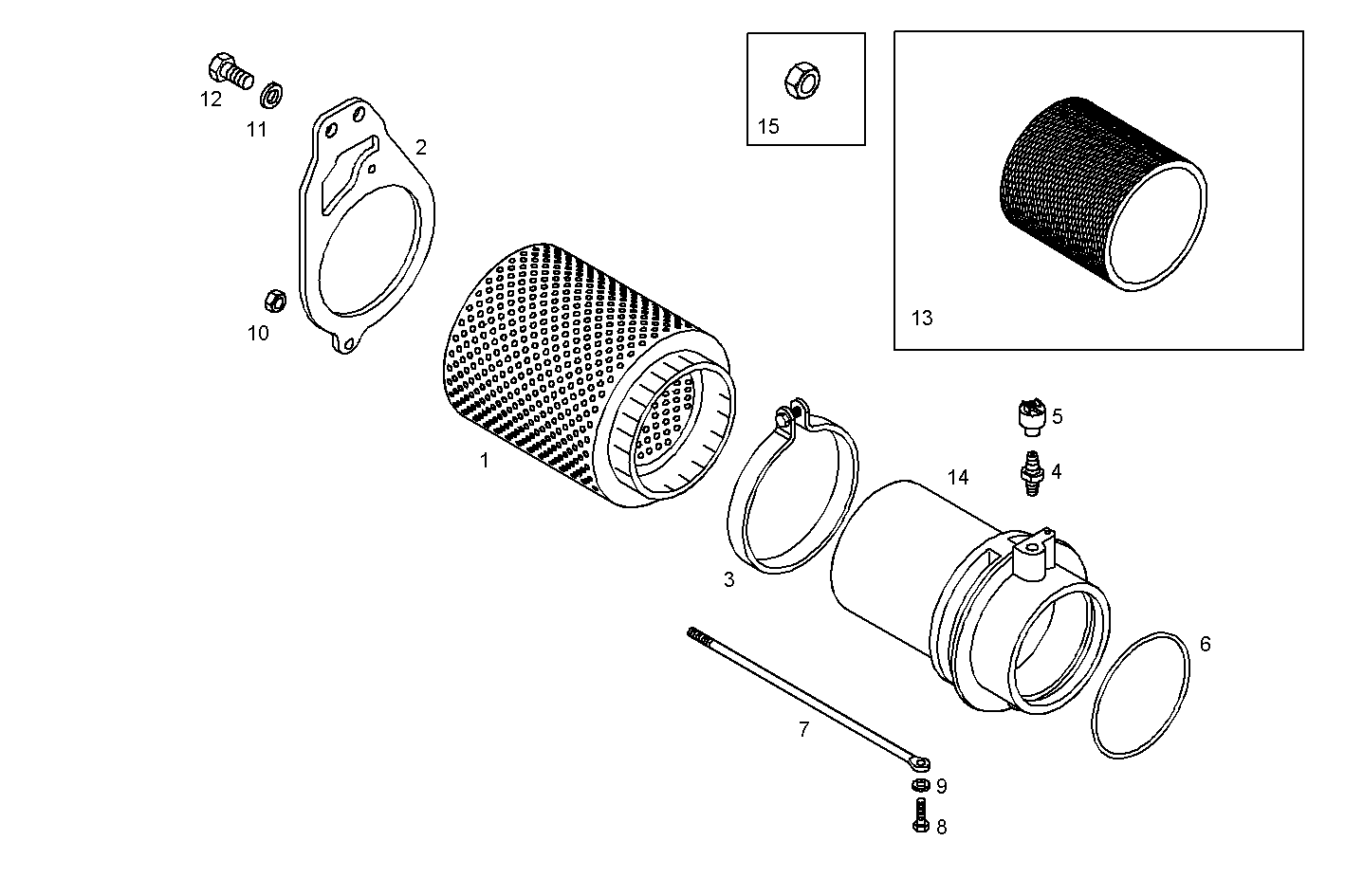

2210.068 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8039404 | AIR CLEANER ASSY |
| 2 | 8044582 | RETAINER |
| 3 | 8032358 | CLIP dia 154 |
| 4 | 8009522 | PIPE SOCKET |
| 5 | 8027423 | CHOCKED FILTER INDIC. |
| 6 | 17291481 | O-RING Ø101,19 MM SP=3,53 |
| 7 | 8031906 | TIE ROD M6X1 |
| 8 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 17967521 | NUT M6X1 |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 16605524 | HEXAGON BOLT M8X20 MM |
| 13 | 8039624 | AIR FILTER ELEMENT |
| 14 | 8047425 | FILTER SUPPORT |
| 15 | 16979331 | HEXAGON NUT M6X1 |
