N67ENTM45.10

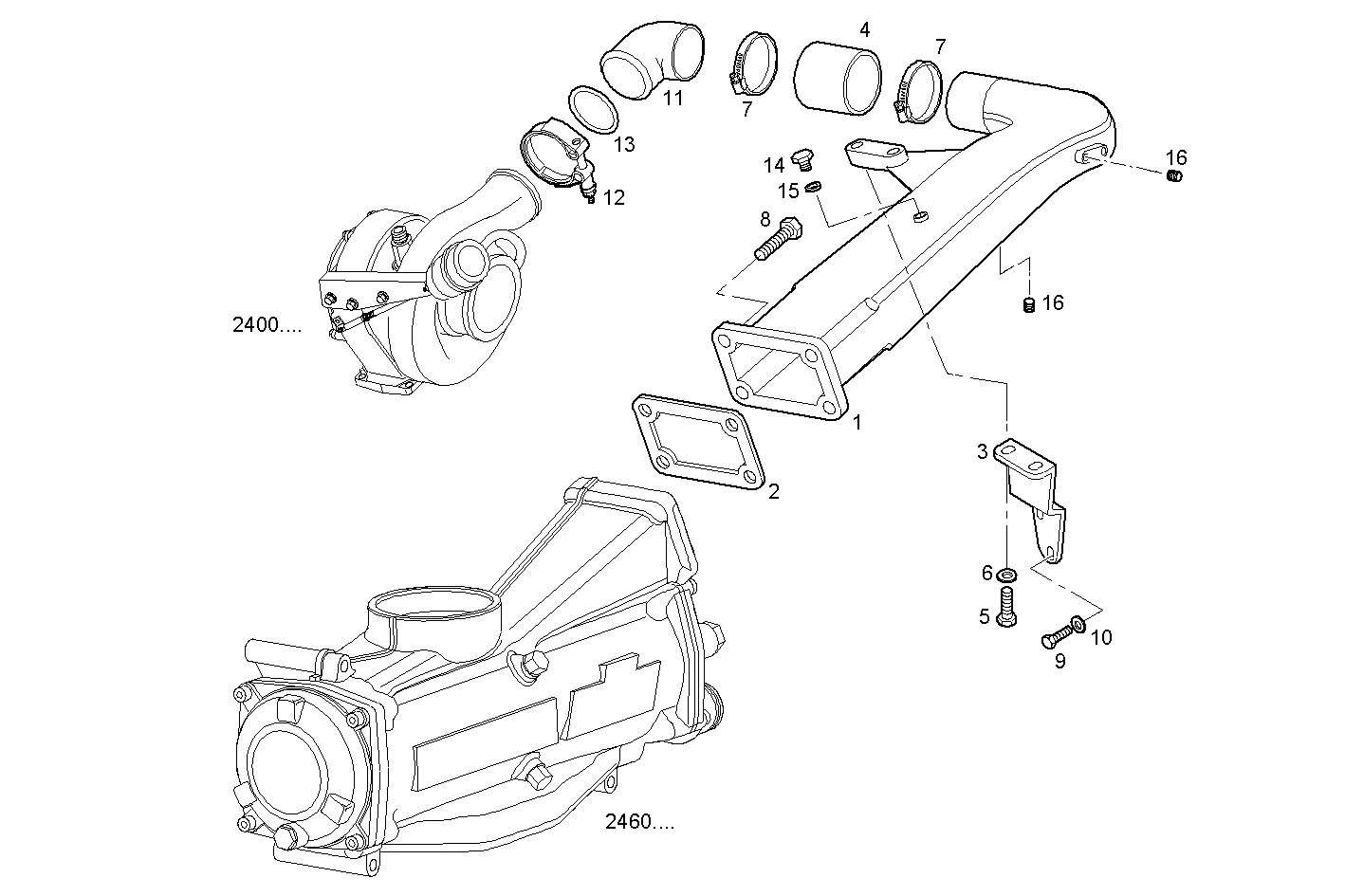

2420.257 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8045070 LINE
2 8040129 GASKET
3 8033283 RETAINER
4 8031793 RUBBER SLEEVE
5 16605524 HEXAGON BOLT M8X20 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 17768599 CLIP
8 98401723 HEXAGON BOLT M8X1,25X12 MM
9 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
10 17090074 SPRING WASHER Ø10X20X1,9 MM
11 8044581 ELBOW
12 4800661 CLIP Ø 75 mm.
13 17284681 O-RING Ø61,6 MM SP=2,62 MM
14 16992211 THREADED PLUG M12X1,5
15 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
16 17873271 THREADED INSERT M8
