N67ENTM45.10

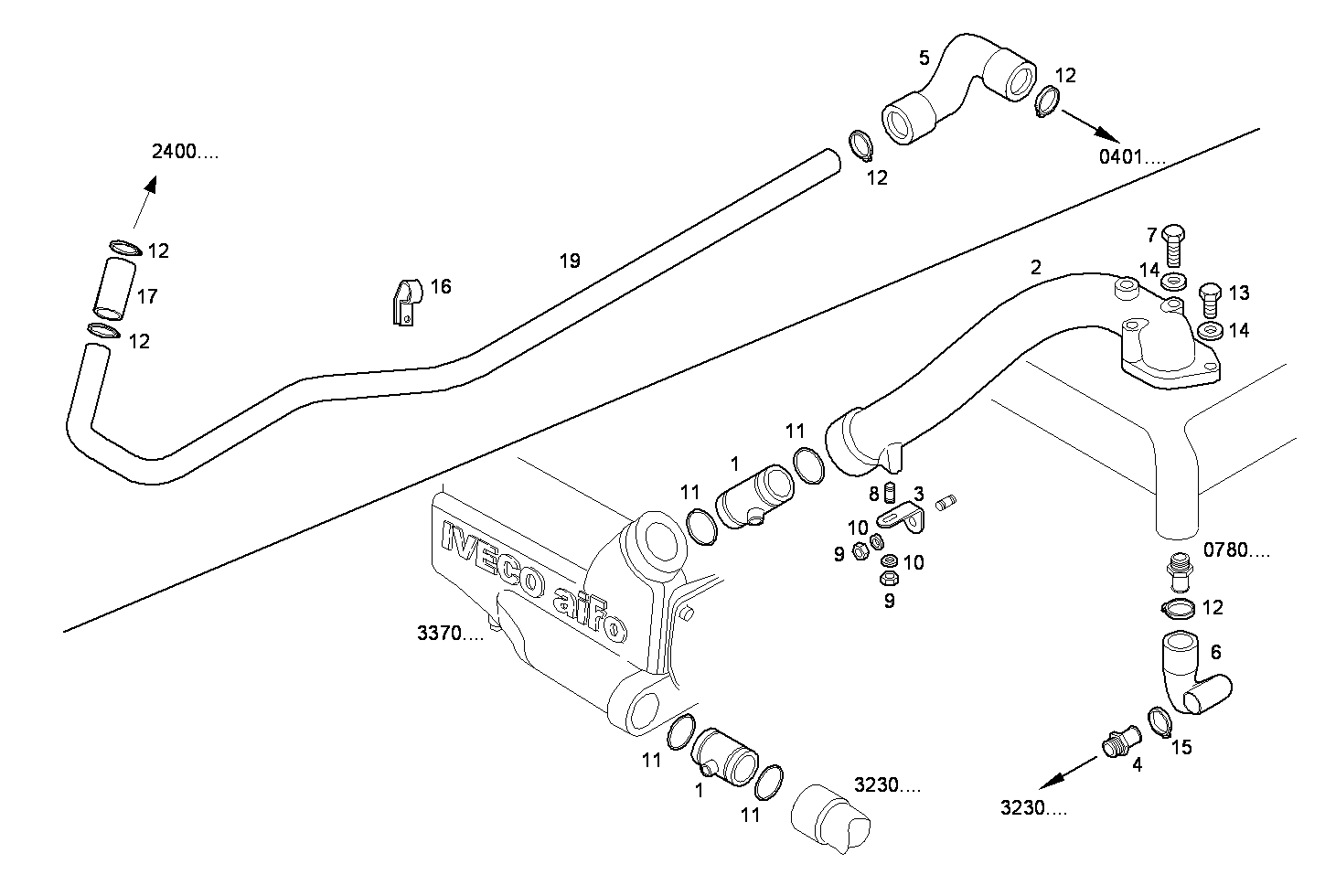

3230.044 WATER PIPE
| Item |
Part number |
Description |
|
1 |
8018308 |
CONNECTOR SLEEVE |
|
2 |
8031802 |
WATER PIPE |
|
3 |
8031803 |
FASTENING BRACKET |
|
4 |
8047482 |
THREADED UNION |
|
5 |
8047485 |
WATER HOSE |
|
6 |
8047484 |
WATER HOSE |
|
7 |
16604724 |
HEXAGON BOLT M6X70 |
|
8 |
16729224 |
STUD M8X16 MM |
|
9 |
17037921 |
HEXAGON NUT M8X1,25 |
|
10 |
17088374 |
WASHER |
|
11 |
17289681 |
O-RING Ø44 MM SP=3,53 MM |
|
12 |
17764693 |
CLIP Ø25/40 MM |
|
13 |
10902633 |
HEXAGON BOLT M6X1X25 MM |
|
14 |
17094724 |
WASHER Ø6X12 MM |
|
15 |
17764593 |
CLIP Ø20/32 MM |
|
16 |
4810595 |
FASTENING BRACKET |
|
17 |
8040181 |
RUBBER SLEEVE |
|
19 |
8047486 |
PIPE |
