N67ENTM45.10

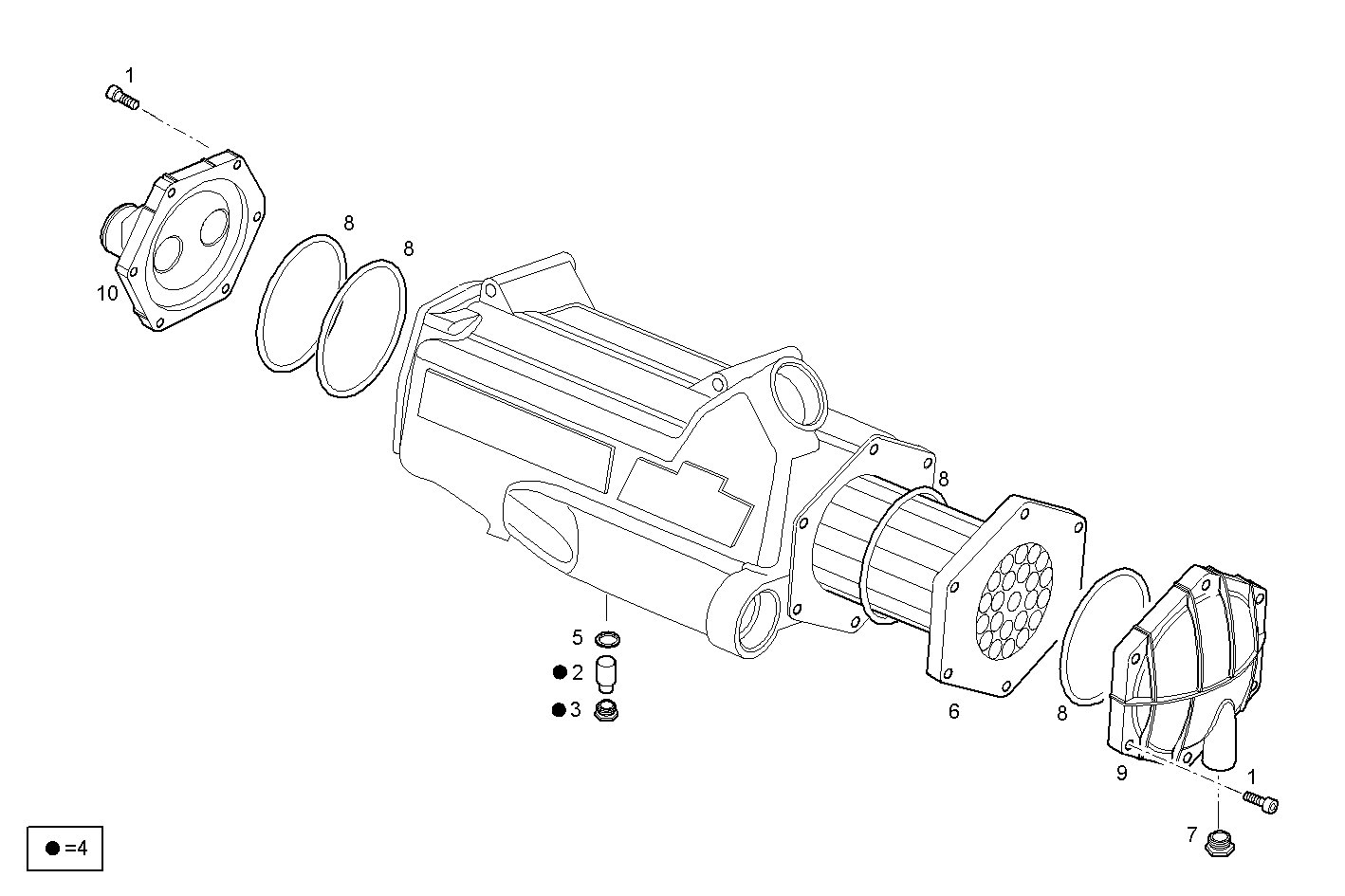

3371.007 FRESH WATER - SEA WATER HEAT EXCHANGER (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 2 | 8093597 | SACRIFICAL ANODE |
| 3 | 8093596 | PLUG |
| 4 | 8033236 | PLUG ASSY |
| 5 | 4858606 | GASKET Ø10X14X1 MM |
| 6 | 8049580 | TUBE STACK |
| 7 | 8044332 | PLUG |
| 8 | 8032524 | O-RING |
| 9 | 8050113 | COVER FRONT |
| 10 | 8050203 | COVER REAR |
