N67ENTM45.10

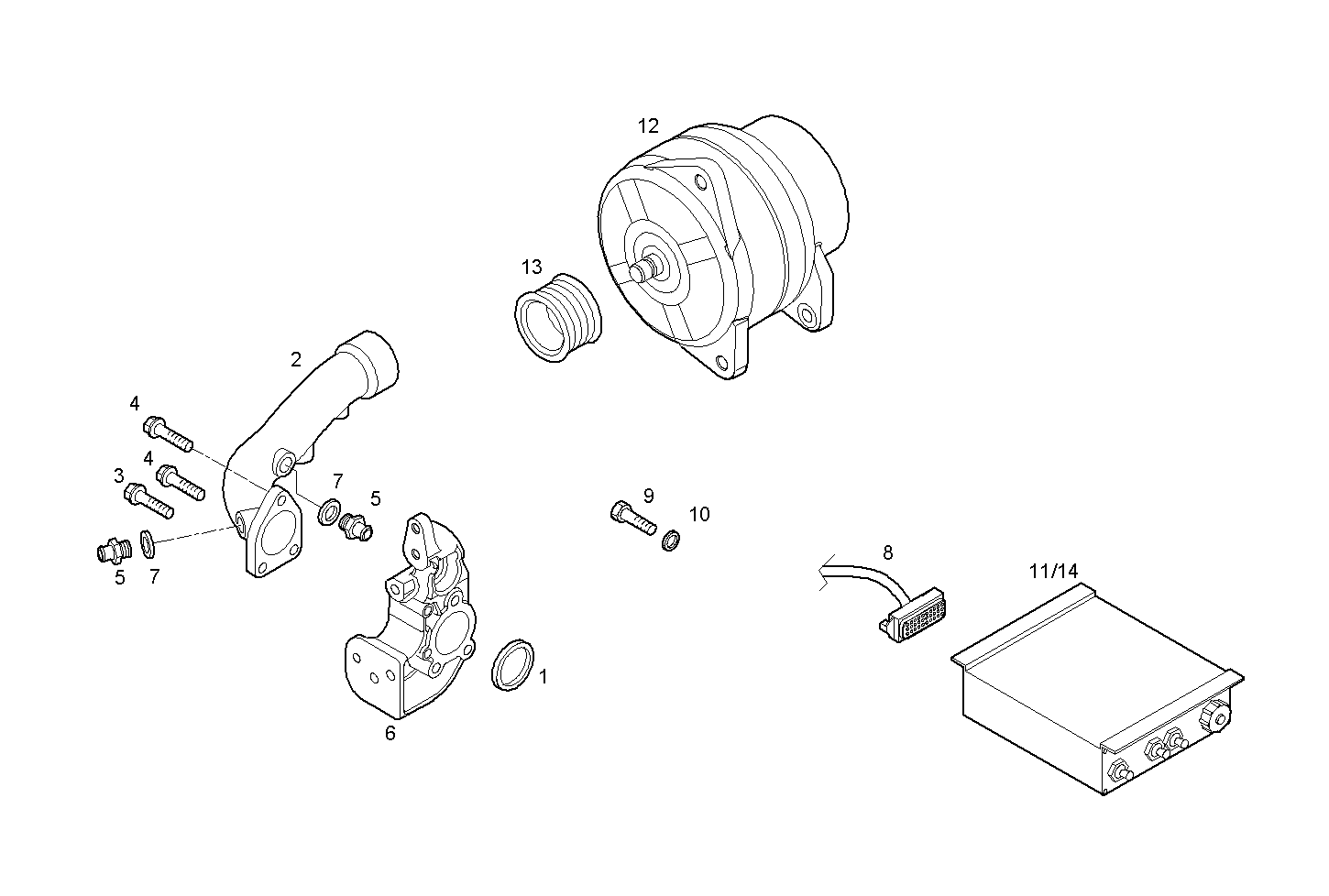

A14240501 SELF-REGULATED ALTERNATOR - 24V - 70A - poles system
| Item | Part number | Description |
|---|---|---|
| 1 | 504062710 | WASHER |
| 2 | 8033685 | WATER PIPE |
| 3 | 16592925 | HEXAGON BOLT M10X80 MM |
| 4 | 16599224 | HEXAGON BOLT M10X140 MM |
| 5 | 8024797 | PIPE SOCKET M30X1,5 |
| 6 | 8036563 | GENERATOR SUPPORT |
| 7 | 99434480 | SEAL GASKET Ø30X40 MM |
| 8 | 8036735 | ENGINE HARNESS |
| 9 | 16605524 | HEXAGON BOLT M8X20 MM |
| 10 | 17089574 | WASHER Ø8X16 MM |
| 11 | 8035891 | SWITCH PANEL 24V [UP TO 01-07-05] |
| 12 | 8036232 | ALTERNATOR |
| 13 | 8036600 | GENERATOR PULLEY |
| 14 | 8041353 | SWITCH PANEL relais module 24V |
