N67ENTM56.10

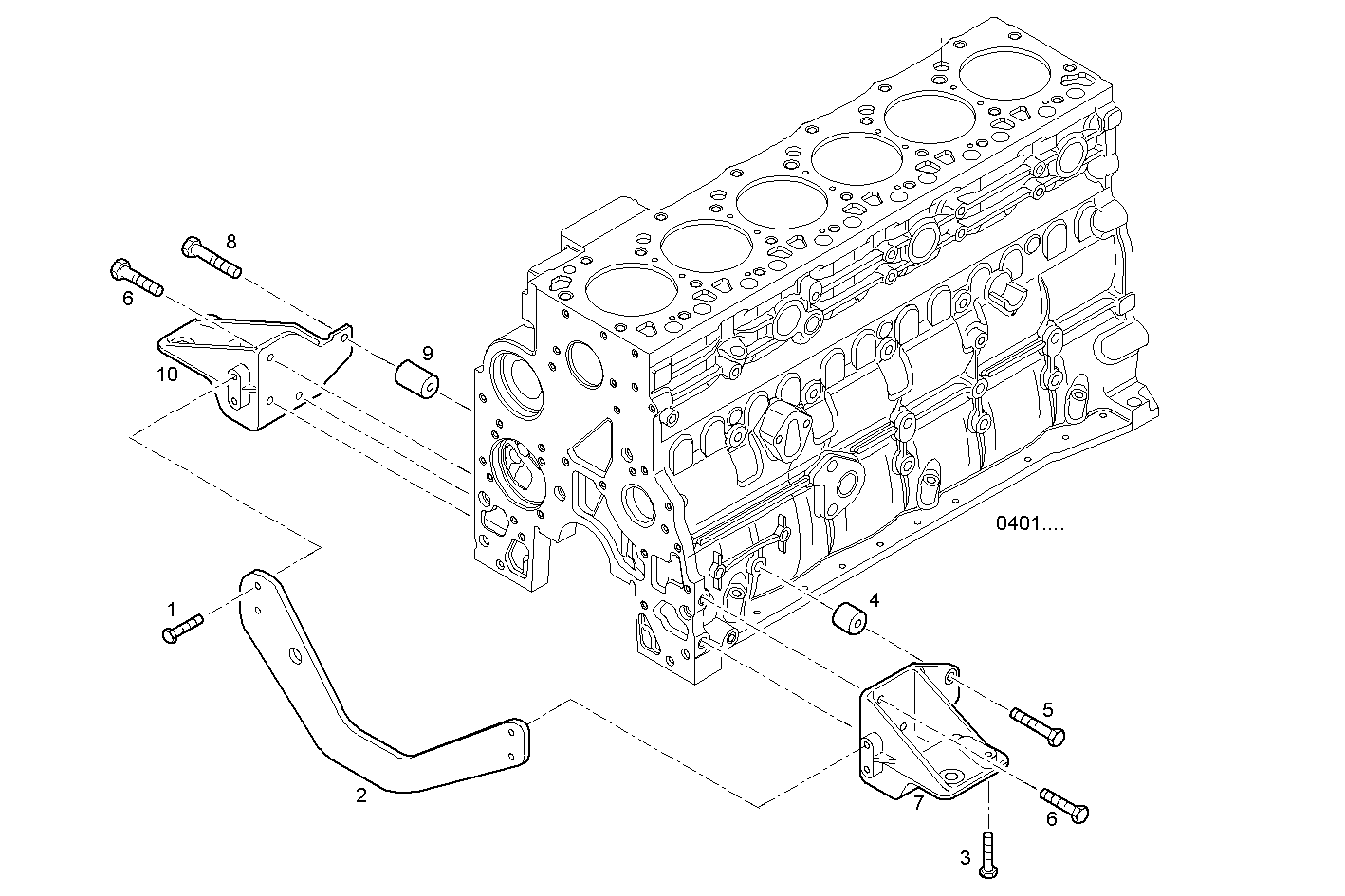

0443.013 FRONT ENGINE MOUNTING
| Item | Part number | Description |
|---|---|---|
| 1 | 16675835 | HEXAGON BOLT M10X30 MM |
| 2 | 8052332 | PLATE |
| 3 | 16692624 | CYLIND-HEAD SCREW M10X50 MM |
| 4 | 8052522 | SPACING BAR |
| 5 | 16678135 | HEXAGON BOLT M12X45 MM |
| 6 | 16677835 | HEXAGON BOLT M12X1,75X30 MM |
| 7 | 8052200 | FRONT ENG. MOUNT LEFT |
| 8 | 16678734 | HEXAGON BOLT M12X65 MM |
| 9 | 8052356 | SPACING BAR |
| 10 | 8052205 | FRONT ENG. MOUNT RIGHT |
