N67ENTM56.10

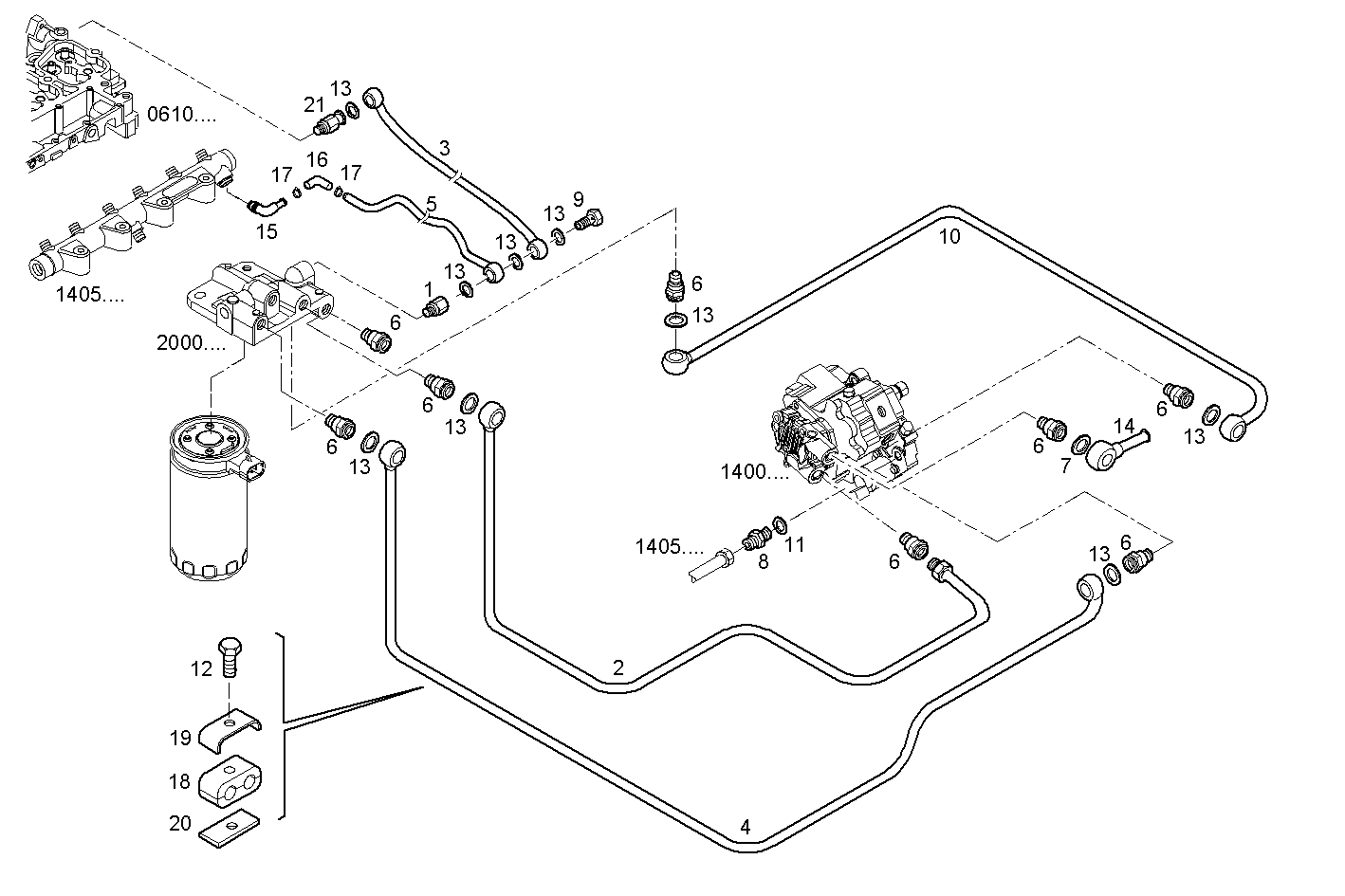

2030.049 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 8035491 PIPE SOCKET
2 8052352 FUEL LINE inlet to inj.pump
3 8052355 FUEL LINE return pipe
4 8052353 FUEL LINE return pipe
5 8052354 FUEL LINE
6 99476542 THREADED UNION M12X1,5
7 98474305 WASHER Ø10X17 MM SP=2,3
8 16500114 THREADED UNION M12X1,5 - M14X1,5
9 8016191 BANJO BOLT M12X1,5
10 8052351 FUEL LINE filter delivery pipe
11 17278181 O-RING [FROM # 50368]
12 16602225 HEXAGON BOLT M5X20 MM
13 98474306 WASHER Ø12X20 MM SP=1,9 MM
14 98404884 SWIVEL COUPLING
15 8034419 ELBOW COUPLING
16 17724587 RUBBER HOSE Ø7,5X14,5 MM
17 18088294 CLIP
18 4659217 DOWEL
19 4659218 CLIP
20 4659219 PLATE
21 8035490 CONTROL VALVE
