N67ENTM56.10

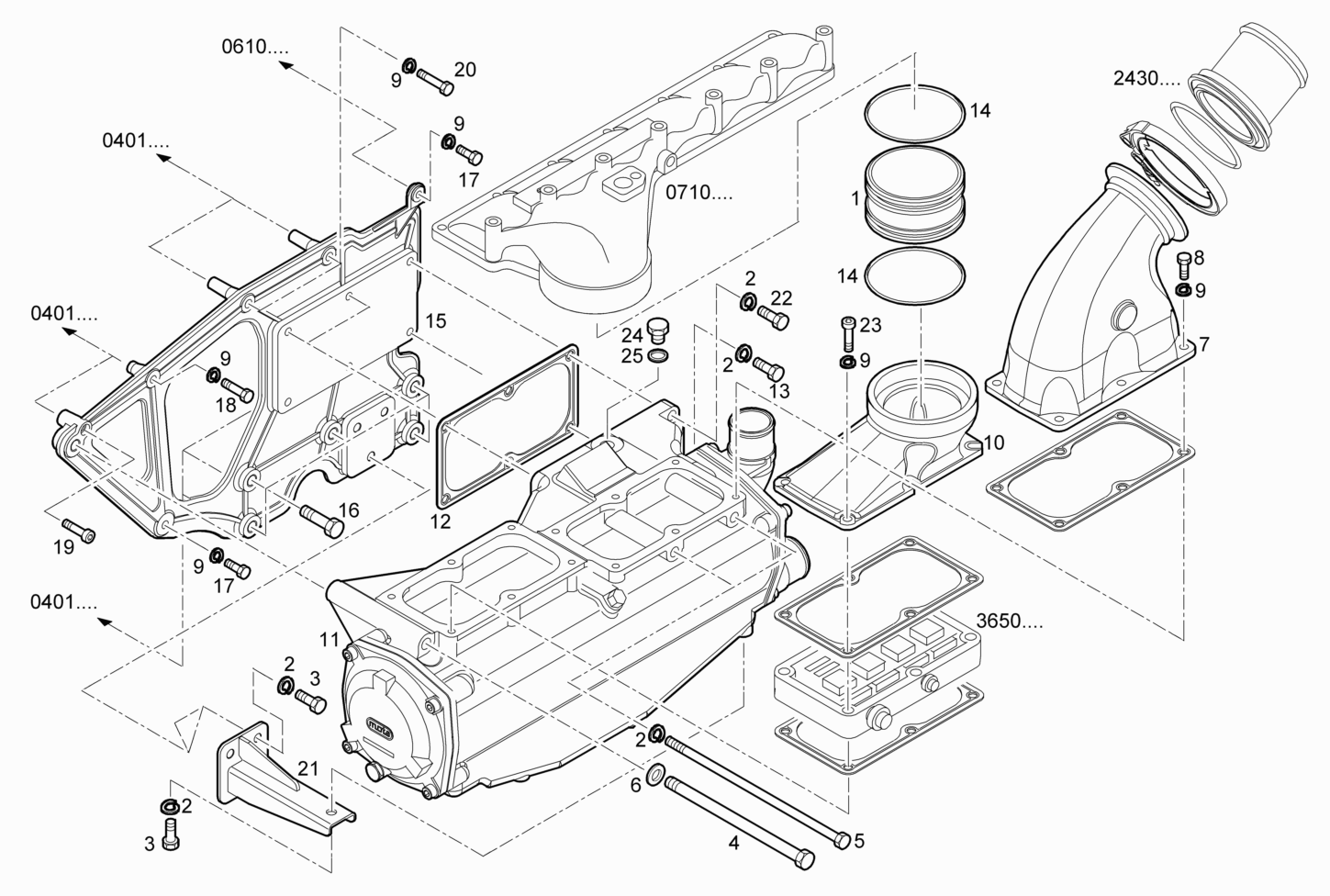

2460.016 AIR - WATER HEAT EXCHANGER

Iveco/FPT AIR - WATER HEAT EXCHANGER

Item Part number Description
1 8052270 AIR PIPE/DUCT
2 17090174 SPRING WASHER Ø10X20 MM
3 16607825 HEXAGON BOLT M10X35 MM
4 16611624 SCREW M12X160
5 8030482 SCREW M10X210
6 17091074 WASHER Ø12X24X2,8 MM
7 8052142 AIR HOOD
8 16605524 HEXAGON BOLT M8X20 MM
9 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
10 8052144 AIR HOOD
11 8052087 AIR/WATER HEAT EXCHANGER ASSY
12 504026624 FLAT ENGINE GASKET
13 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
14 17297081 O-RING Ø88,26X5,33 MM
15 8052174 SUPPORT
16 16609924 HEXAGON BOLT M12X30 MM (8.8)
17 16605624 HEXAGON BOLT M8X25 MM (8.8)
18 16606034 HEXAGON BOLT M8X45 MM
19 16690824 CYLIND-HEAD SCREW M8X35 MM
20 16606225 HEXAGON BOLT M8X55 MM
21 8052368 SUPPORT
22 16607624 SCREW M10X25
23 16691024 CYLIND-HEAD SCREW M8X45 MM
24 16992411 THREADED PLUG M16X1,5
25 4858609 WASHER Ø16X22 MM SP=1,5 MM
