N67ENTM56.10

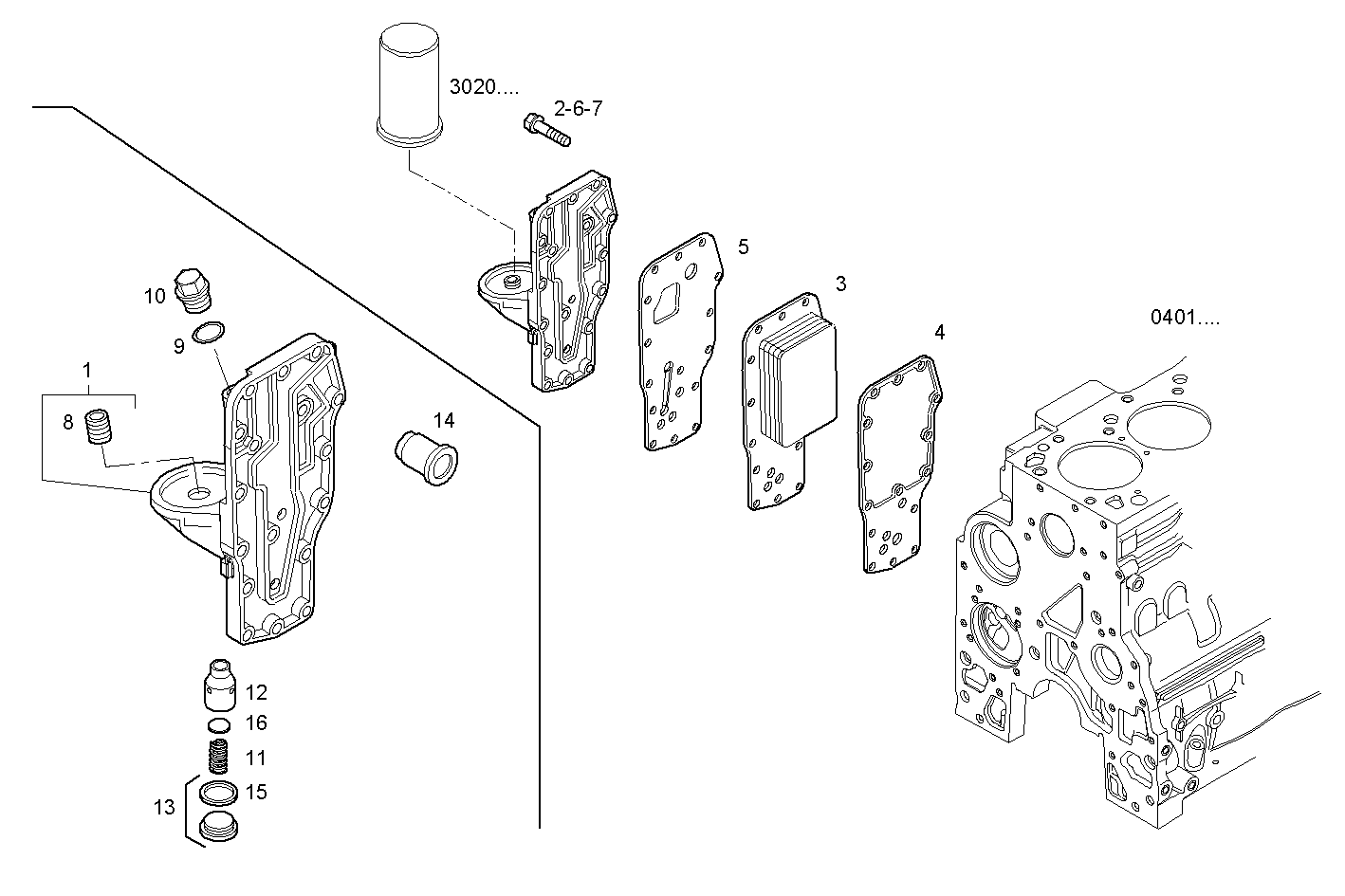

3150.037 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 504132143 HEAT EXANGER BODY ASSY
2 4899019 HEXAGON BOLT M8X35 MM
3 4896819 OIL COOLER
4 2830559 FLAT ENGINE GASKET
5 2831317 FLAT ENGINE GASKET
6 4899041 HEXAGON BOLT
7 16598325 HEXAGON BOLT M8X100 MM
8 4893391 THREADED UNION
9 4858607 WASHER Ø12X17 MM SP=1,5 MM
10 16992211 THREADED PLUG M12X1,5
11 4895045 VALVE SPRING
12 4896404 VALVE HOUSING
13 504096409 THREADED PLUG ASSY [FROM # 155900]
14 4896410 VALVE
15 17916280 O-RING [FROM # 155900]
16 8052619 SPACING BAR
