N67ENTM56.10

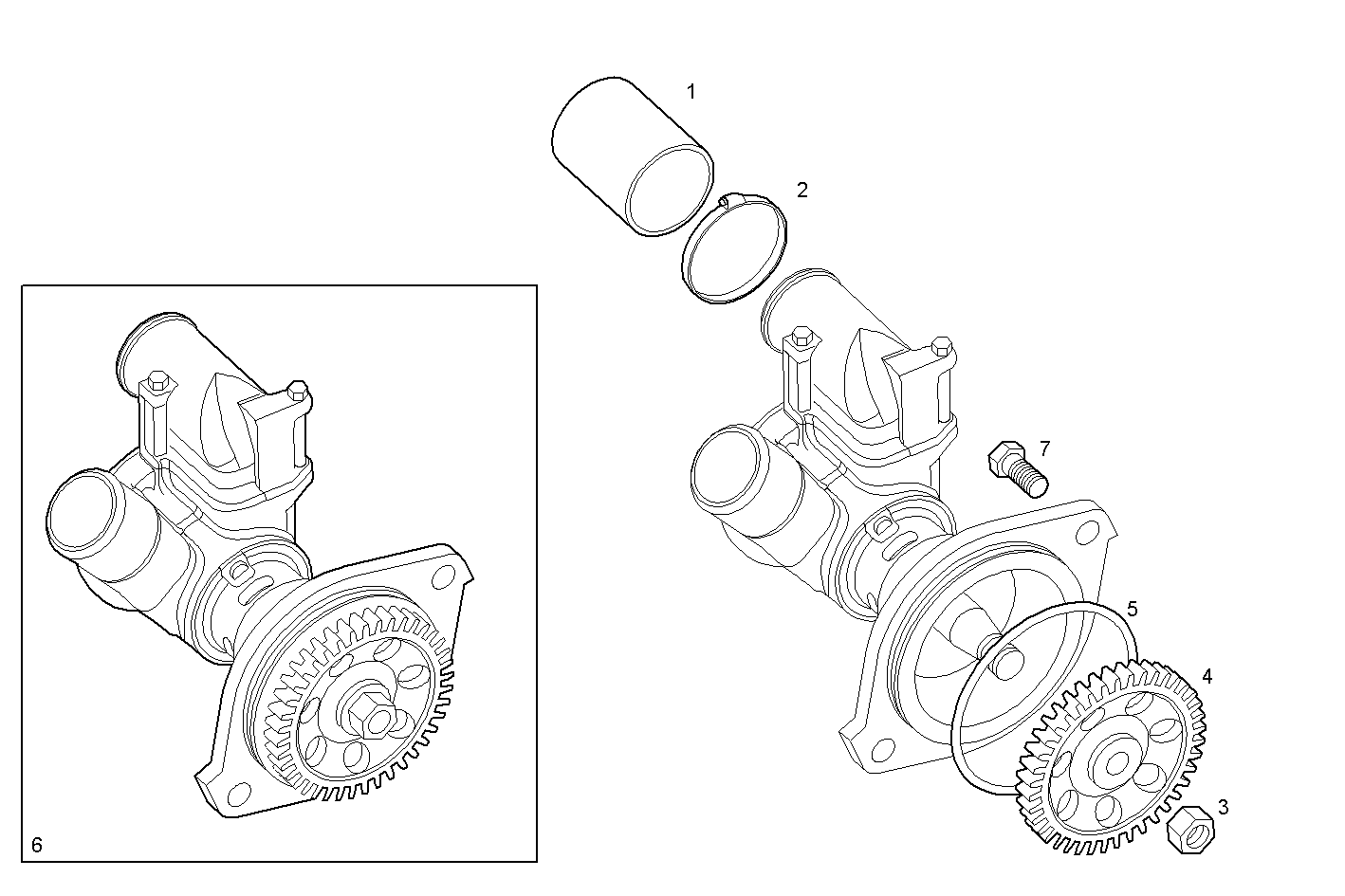

3380.002 SEA WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8052249 | RUBBER SLEEVE |
| 2 | 17764893 | CLIP Ø40/60 MM |
| 3 | 16750535 | HEXAGON NUT M14 |
| 4 | 8031541 | GEAR |
| 5 | 17291581 | O-RING Ø104,37X3,53 MM |
| 6 | 8033072 | SEA WATER PUMP ASSY JABSCO |
| 7 | 16588025 | HEXAGON BOLT M12X30 MM |
