N67ENTM56.10

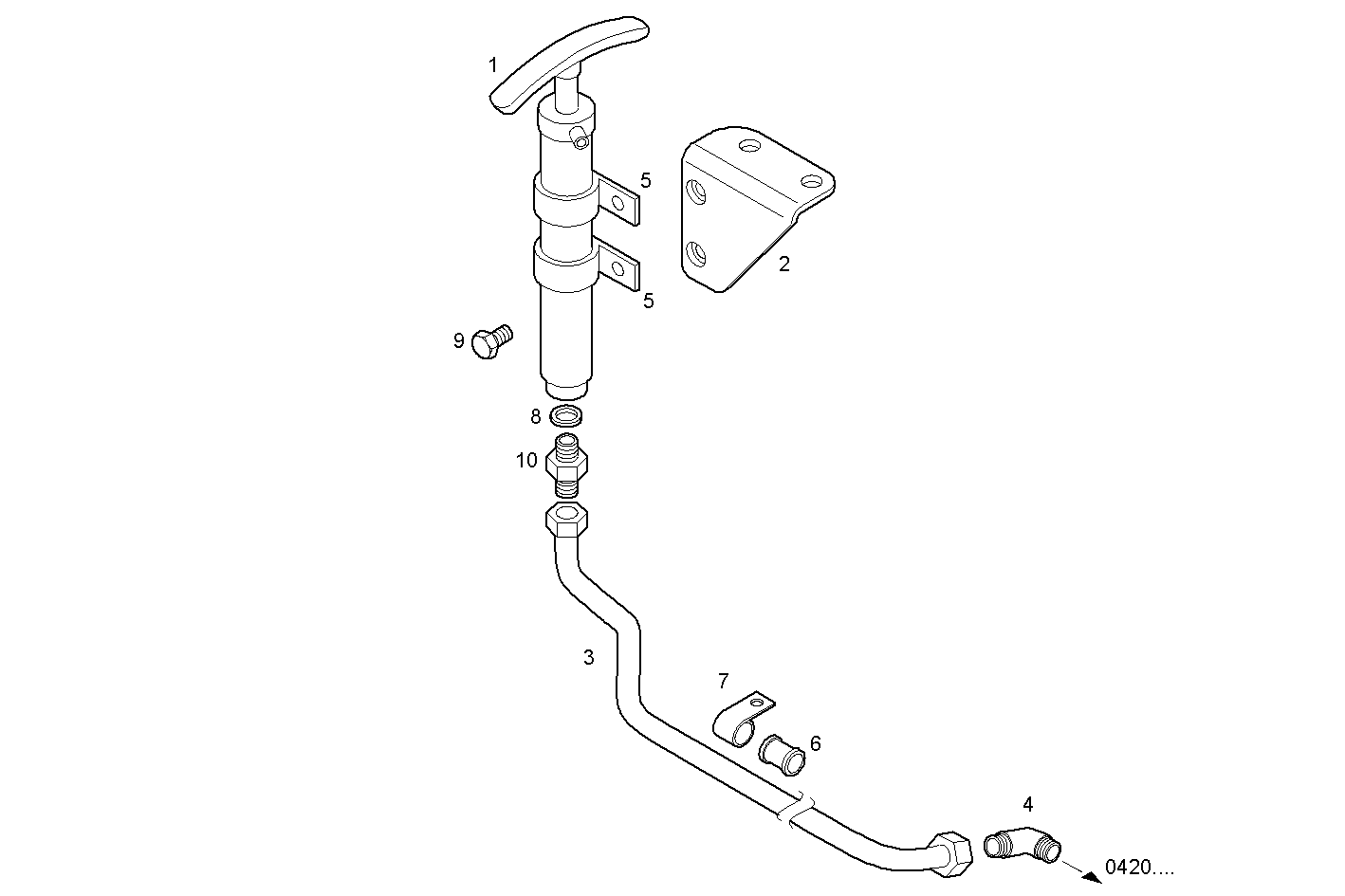

5510.007 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8050685 | MAR. ENG. SUCTION PUMP |
| 2 | 8052324 | FASTENING BRACKET |
| 3 | 8052322 | OIL LINE |
| 4 | 4896491 | ELBOW COUPLING M16X1,5 - M18X1,5 |
| 5 | 8051314 | FASTENING BRACKET |
| 6 | 4755964 | RUBBER PAD |
| 7 | 4755963 | FASTENING BRACKET |
| 8 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 9 | 18139424 | HEXAGON BOLT M10X20 MM |
| 10 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
