N67ENTX20.00

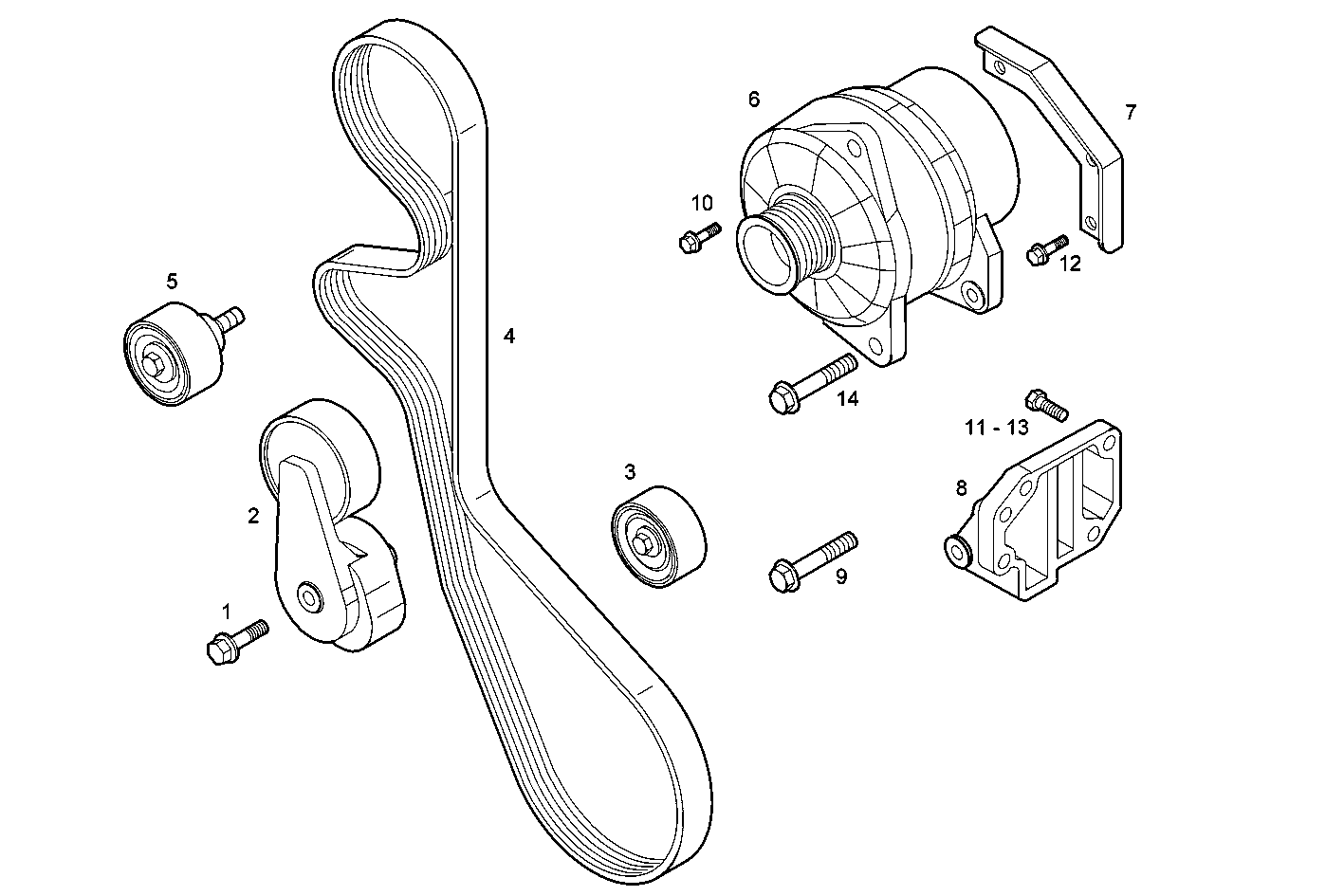

A14230501/01 DOUBLE ALTENATOR - 24V
Item | Part number | Description |
---|---|---|
1 | 4899122 | HEXAGON BOLT M10X110 MM |
2 | 4891116 | BELT TENSIONER |
3 | 4897031 | PULLEY |
4 | 500387660 | V-BELT |
5 | 4892356 | PULLEY |
6 | 4892320 | ALTERNATOR ASSY |
7 | 504009728 | FASTENING BRACKET |
8 | 500395787 | GENERATOR SUPPORT ASSY |
9 | 16599024 | HEXAGON BOLT M10X120 MM |
10 | 16676834 | HEXAGON BOLT M10X70 MM |
11 | 16587325 | HEXAGON BOLT M10X35 MM |
12 | 16586325 | HEXAGON BOLT M8X20 MM |
13 | 16587425 | HEXAGON BOLT M10X40 MM |
