N67ENTX20.00A004

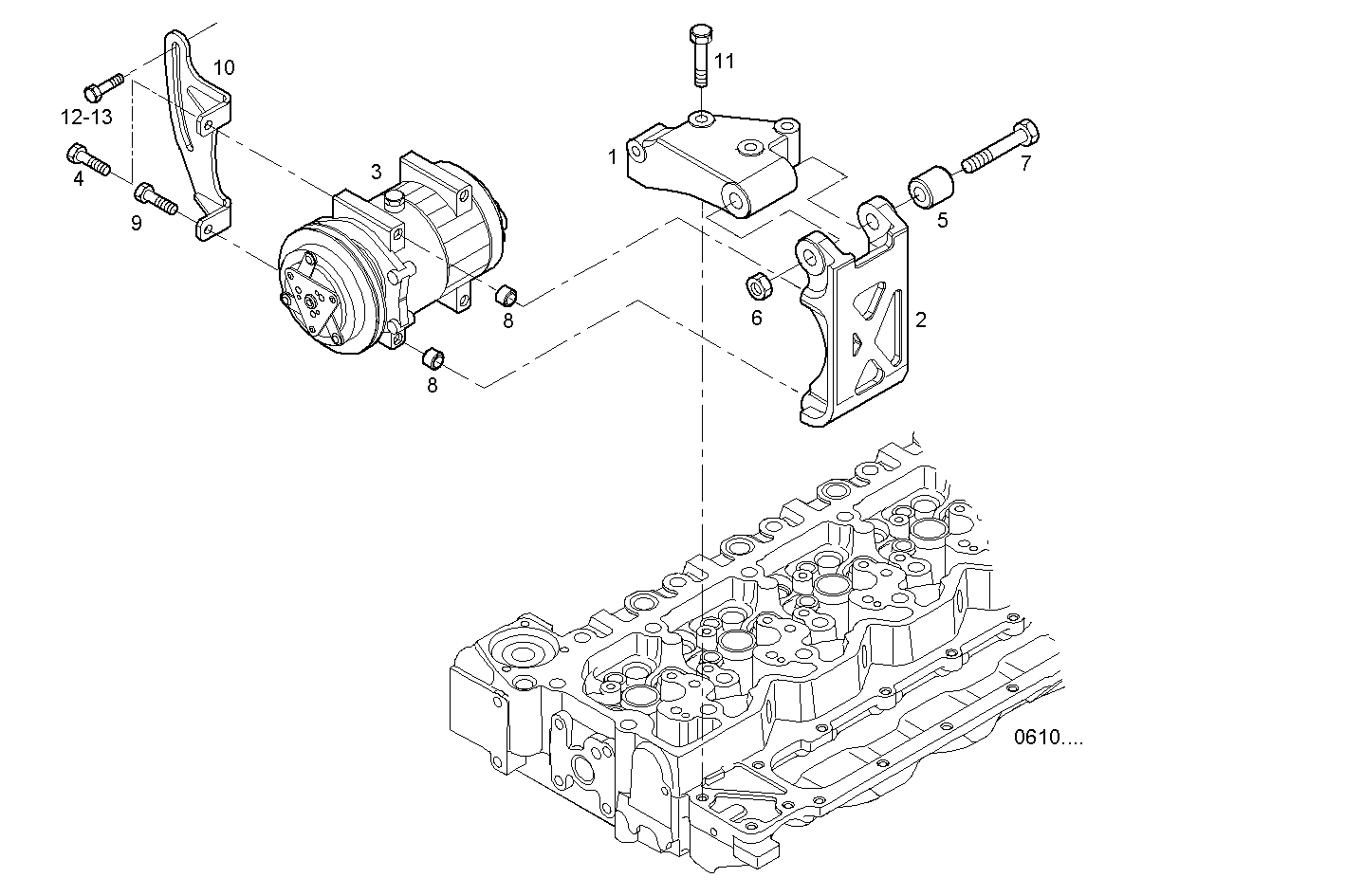

3900.025 COMPRESSOR AIR CONDITIONING
Item | Part number | Description |
---|---|---|
1 | 500387902 | SUPPORT |
2 | 500387643 | SUPPORT |
3 | 500388059 | AIR COND.COMPRESS. |
4 | 16598425 | HEXAGON BOLT M8X110 MM |
5 | 98433179 | SPACING BAR |
6 | 4899102 | HEXAGON NUT |
7 | 16599724 | HEXAGON BOLT M12X130 MM |
8 | 4895227 | DOWEL PIN |
9 | 16598324 | HEXAGON BOLT M8X100 MM |
10 | 500387903 | TENSIONER |
11 | 4899144 | HEXAGON BOLT M10X1,5X50 MM |
12 | 4899147 | HEXAGON BOLT |
13 | 16673635 | HEXAGON BOLT M8X1.25X20 |
