N67ENTX24.00A001

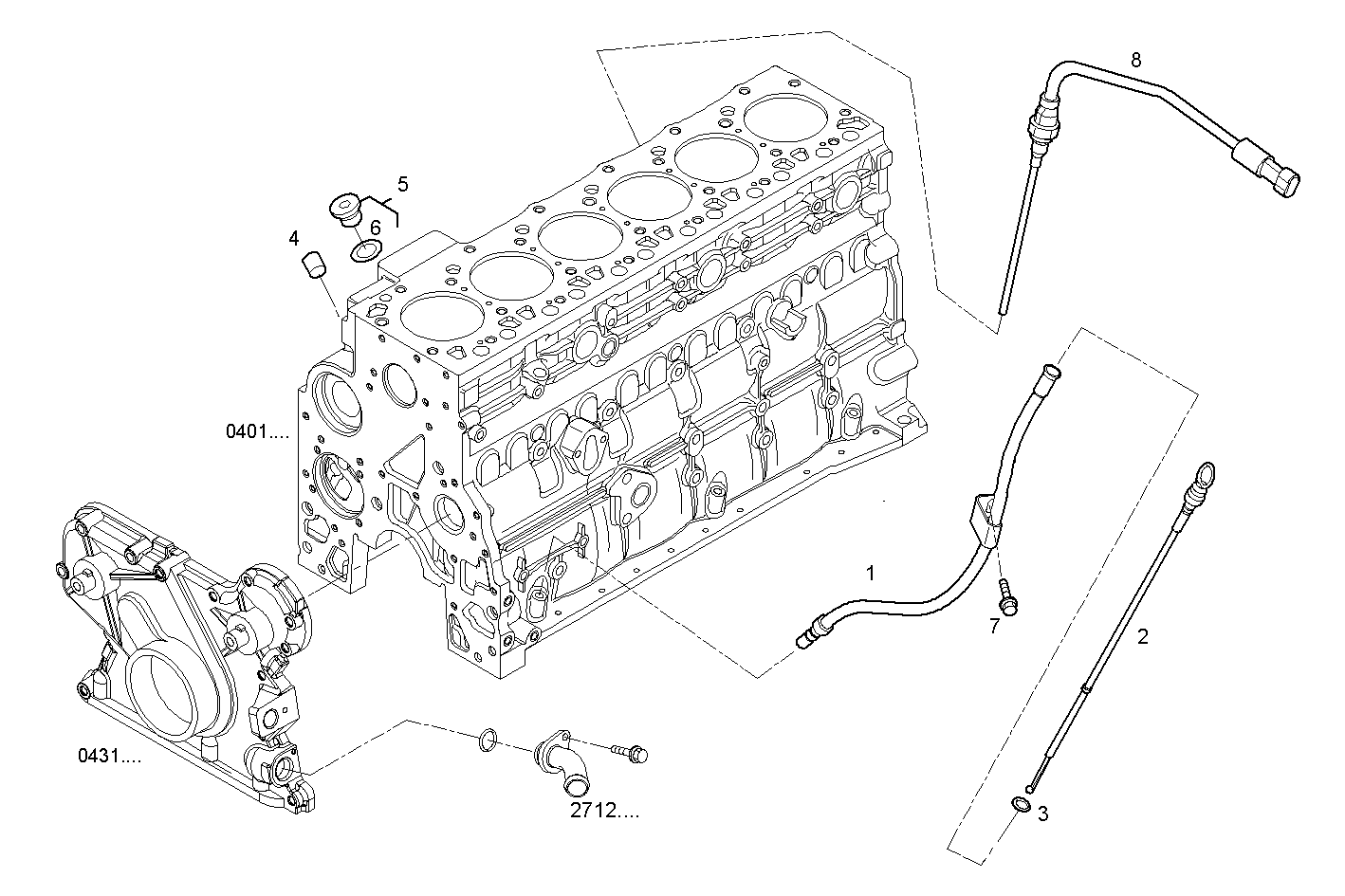

2700.042 OIL DIPSTICK & FILLER PIPE
Item | Part number | Description |
---|---|---|
1 | 504079391 | OIL LINE |
2 | 504079404 | OIL DIPSTICK |
3 | 4898502 | O-RING |
4 | 4899036 | PLUG |
5 | 4897330 | PLUG ASSY M12X1,5 |
6 | 4895610 | O-RING |
7 | 16677735 | HEXAGON BOLT M12X25 MM |
8 | 504042300 | SENSOR |
