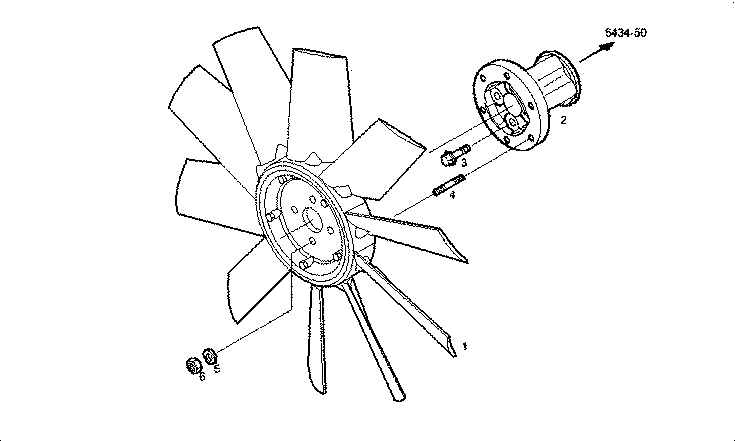

126800 FAN ASSEMBLY - OPTION: A08000508 PULLER FAN 600mm H=105
| Item | Part number | Description |
|---|---|---|
| 1 | 8033779 | BLOWER |
| 2 | 8032094 | SPACING BAR |
| 3 | 16598925 | HEXAGON BOLT M10X110 MM |
| 4 | 16731224 | STUD M10X25 MM |
| 5 | 16665604 | WASHER Ø10X20 MM |
| 6 | 17038131 | HEXAGON NUT M10 |
