N67ENTY20.00

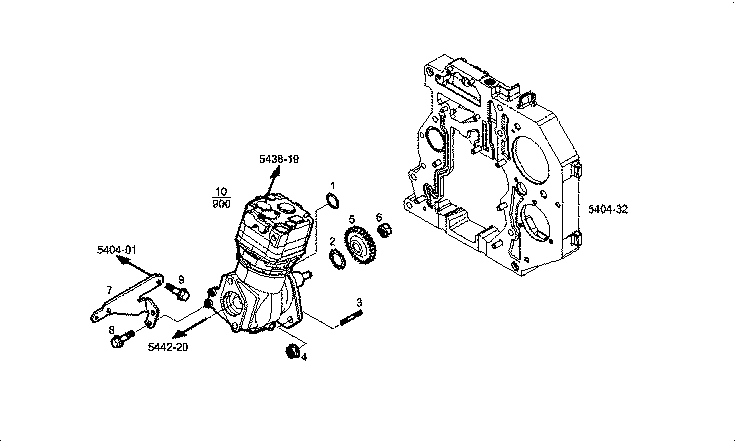

126866 AIR COMPRESSOR - OPTION: A18120501 360CC
| Item | Part number | Description |
|---|---|---|
| 1 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
| 2 | 504016688 | RUBBER GASKET |
| 3 | 4899069 | STUD M12 |
| 4 | 4899018 | HEXAGON NUT M12X1,75 |
| 5 | 5801428523 | GEAR |
| 6 | 504016500 | NUT |
| 7 | 4897739 | RETAINER |
| 8 | 4899020 | HEXAGON BOLT |
| 9 | 4899068 | HEXAGON BOLT M8X17 MM |
| 10 | 504016818 | AIR COMPRESSOR ASSY |
