N67ENTY20.00L009
138367 SYSTEM-ELECTRICAL

Iveco/FPT SYSTEM-ELECTRICAL

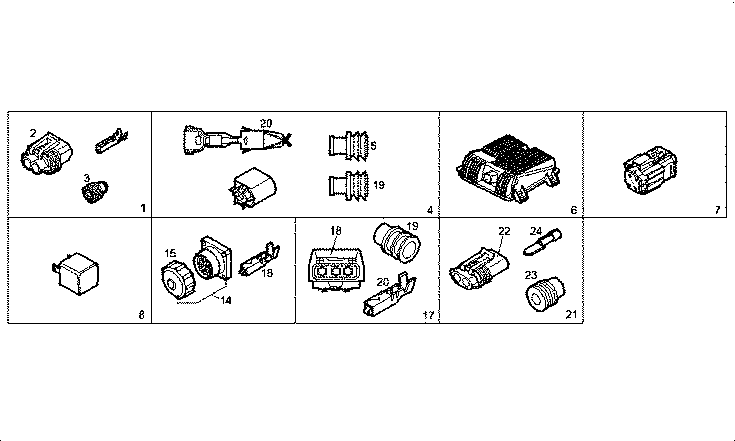

Item Part number Description
1 8030571 WIRE CONNECTOR assy 2 pin female - packard
2 12330587 WIRE CONNECTOR
3 12329982 GASKET
4 8030896 CONNECTION assy for alternator
5 98420215 PLUG
6 5801506390 TRANSFORMATOR
7 5801483220 WIRE CONNECTOR
8 500326618 RELAY 70A
14 8034787 WIRE CONNECTOR ASSY
15 8033302 CAP
16 99462549 TERMINAL
17 8030575 CONNECTION ASSY
18 99430234 PLUG COUPLING
19 4835259 GASKET
20 12309290 TERMINAL
21 8030574 WIRE CONNECTOR ASSY [UP TO 27-06-05]
22 12331387 CONNECTION
23 4861936 RUBBER BUSH YELLOW
24 98435372 TERMINAL
